1.0 - motherboard - mini ITX - Intel Celeron J1800 - USB 3.0 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
| Main Specifications | |
|---|---|

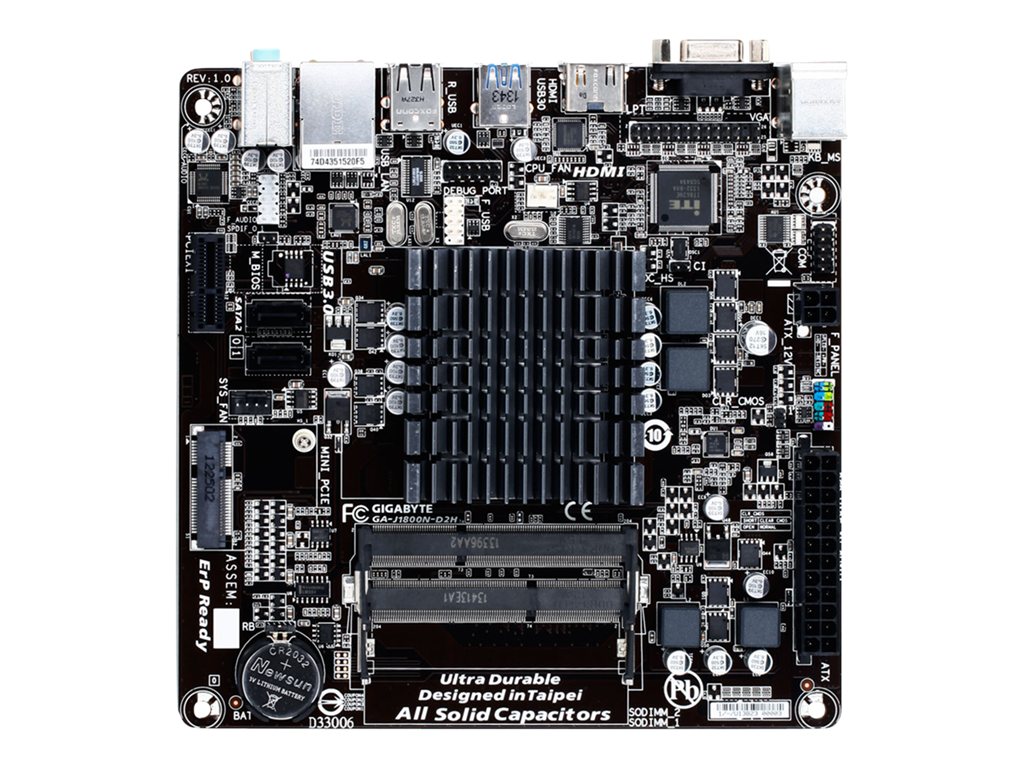

| Product Description | Gigabyte GA-J1800N-D2H - 1.0 - motherboard - mini ITX - Intel Celeron J1800 |
| Product Type | Motherboard - mini ITX |
| Processor | Intel Celeron J1800 / 2.41 GHz (Dual-Core) |
| Max RAM Size | 8 GB |
| RAM Supported | 2 SO-DIMM slots - DDR3, DDR3L, non-ECC |
| Storage Ports | 2 x SATA-300 |
| USB / FireWire Ports | 1 x USB 3.0 + 4 x USB 2.0 + (2 x USB 2.0 via headers) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - mini ITX |
| Processor | Intel Celeron J1800 / 2.41 GHz (Dual-Core) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x SO-DIMM 204-pin ¦ 1 x PCIe 2.0 x1 ¦ 1 x Mini PCIe 2.0 |
| Storage Interfaces | SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Interfaces | 1 x PS/2 keyboard ¦ 1 x VGA ¦ 1 x PS/2 mouse ¦ 1 x HDMI ¦ 4 x USB 2.0 ¦ 1 x USB 3.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x audio - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Miscellaneous | |
| Software Included | Norton Internet Security, @BIOS, Xpress Install, GIGABYTE App Center |
| Compliant Standards | Plug and Play, ACPI 2.0a |
| Width | 6.7 in |
| Depth | 6.7 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Hardware Features | 3x USB Power Boost, All-Solid Capacitor motherboard Design, On/Off Charge, One Port One Fuse, Ultra Durable, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, ESD Protection, Clear CMOS Button |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Supported RAM | |
| Max Size | 8 GB |
| Technology | DDR3, DDR3L |
| Bus Clock | 1333 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture |
