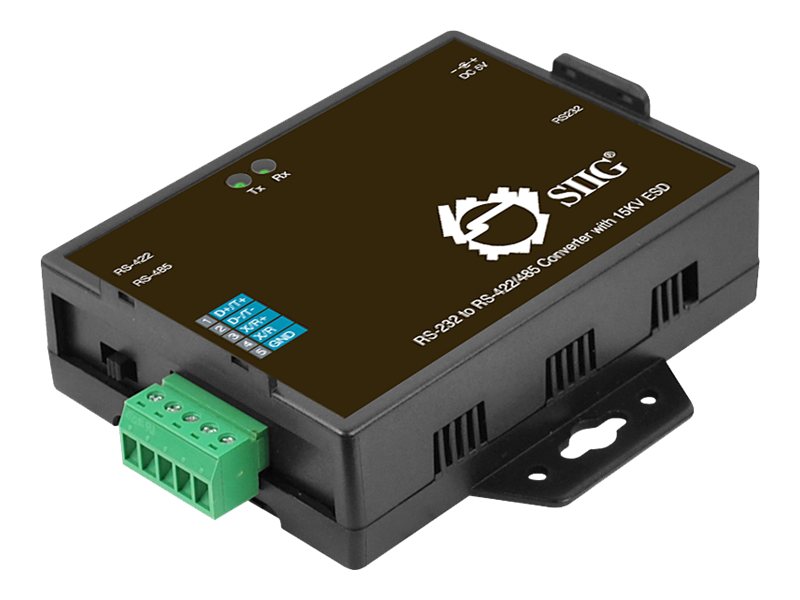

Serial adapter - RS-232 - RS-422/485 - black
| Main Specifications | |
|---|---|
| Product Description | SIIG RS-232 to RS-422/485 Converter with 15KV ESD - serial adapter - RS-232 - RS-422/485 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Ports | RS-422/485 |
| Dimensions (WxDxH) | 3.6 in x 3.6 in x 1.2 in |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Color | Black |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-422/485 - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Ports | RS-422/485 |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Full duplex capability, 15KV ESD Protector |
| Power | |
| Power Consumption Operational | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 3.6 in |
| Height | 1.2 in |
