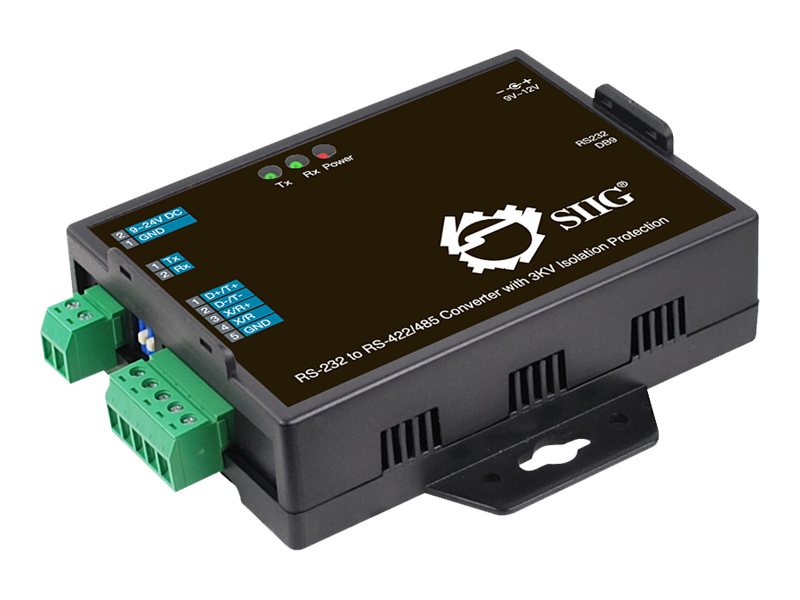

Serial adapter - RS-232 - RS-422/485 - black
| Main Specifications | |
|---|---|
| Product Description | SIIG ID-SC0S11-S1 - serial adapter - RS-232 - RS-422/485 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Ports | RS-422/485 |
| Dimensions (WxDxH) | 3.6 in x 3.6 in x 1.2 in |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Color | Black |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x RS-422/485 - 5 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Color | Black |
| Networking | |
| Ports | RS-422/485 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Surge protection, 15 KV Electrostatic Discharge Protection, 3 KV Optical Isolation Protection |
| Power | |
| Power Device | External |
| Power Consumption Operational | 0.6 Watt |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 3.6 in |
| Height | 1.2 in |
