NAS server - 4 bays - rack-mountable - HDD - RAID 0, 1, 5, 6, 10, JBOD - RAM 2 GB - Gigabit Ethernet - iSCSI support - 1U
| Main Specifications | |
|---|---|

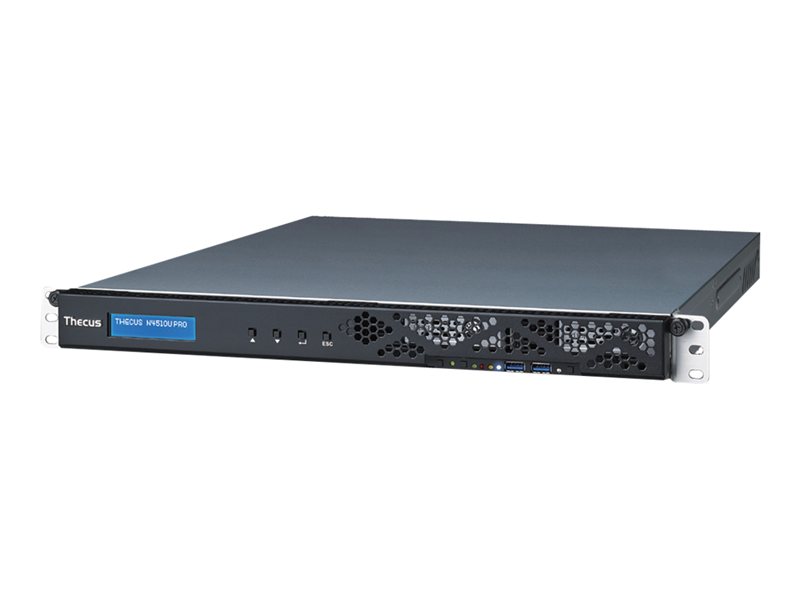

| Product Description | Thecus Technology N4510U PRO-R - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 1U |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Dimensions (WxDxH) | 17 in x 21.7 in x 1.7 in |
| Weight | 37.79 lbs () |
| Processor | 1 x Intel Atom D2701 2.13 GHz (Dual-Core) |
| Storage Controller | RAID RAID 0, 1, 5, 6, 10, JBOD |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 2 GB |
| Power Redundancy | Yes |
| System Requirements | UNIX, Linux, Microsoft Windows XP or later, Microsoft Windows Server 2003 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 1U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 17 in |
| Depth | 21.7 in |
| Height | 1.7 in |
| Weight | 37.79 lbs () |
| Built-in Devices | Status LCD |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 2 x USB 3.0 - Type A ¦ 1 x eSATA ¦ 1 x audio out - mini-jack ¦ 1 x HDMI output ¦ 1 x VGA - HD-15 ¦ 1 x microphone - mini-jack ¦ 1 x audio in - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, BSMI, FCC, RoHS, WEEE, AES-256 |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | TCP/IP, AppleTalk, FTP, SMB |
| Remote Management Protocol | HTTP, HTTPS |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS |
| Features | Load balancing, auto-uplink (auto MDI/MDI-X), print server, IPv6 support, web server, iTunes server, FTP server, UPnP Media Server, IPv4 support |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 250 Watt |
| Software / System Requirements | |
| Software Included | Acronis True Image, McAfee AntiVirus, Thecus Backup Utility |
| OS Required | UNIX, Linux, Microsoft Windows XP or later, Microsoft Windows Server 2003 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Hard Drive | |
| Type | HDD - hot-swap - 2.5" / 3.5" shared |
| Processor / Memory | |
| Processors Installed | 1 x Intel Atom D2701 2.13 GHz |
| Number of Cores | Dual-Core |
| Max Supported Qty | 1 |
| RAM | 2 GB DDR3 |
