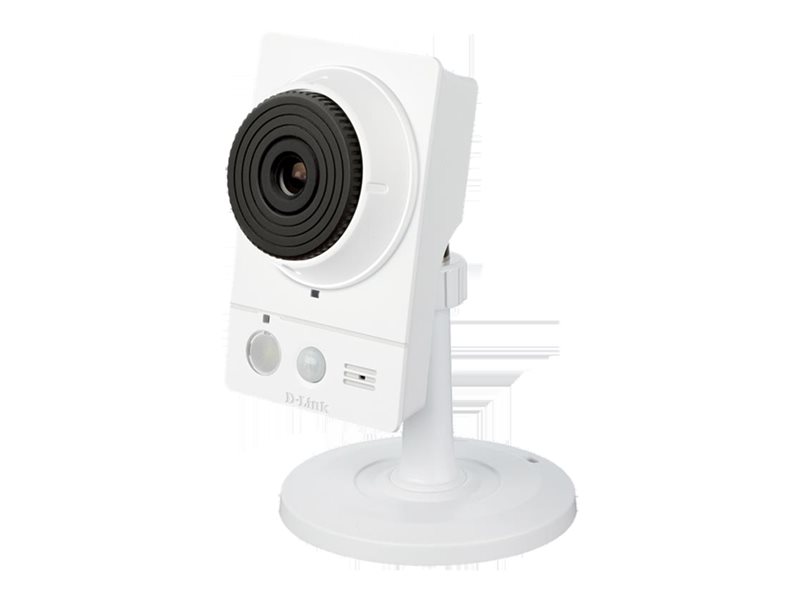

Network surveillance camera - pan / tilt - color (Day&Night) - 1280 x 720 - audio - wireless - Wi-Fi - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 5 V
| Main Specifications | |
|---|---|
| Product Description | D-Link DCS-2136L - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt |
| Audio | Yes: built-in speaker, built-in microphone |
| Dimensions (WxDxH) | 2.3 in x 1.7 in x 5.1 in |
| Weight | 2.96 oz |
| Connectivity Technology | Wired, wireless |
| Camera | Color - Day&Night |
| Max Resolution | 1280 x 720 |
| Optical Sensor Type | CMOS - 1/4" |
| Minimum Illumination | 0 lux - IR - F1.4 |
| Focal Length | 3.6 mm |
| Lens Iris | F/1.4 |
| Interfaces | Ethernet 10Base-T/100Base-TX, IEEE 802.11ac |
| Voltage | DC 5 V |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in speaker, built-in microphone |
| Connectivity Technology | Wired, wireless |
| Width | 2.3 in |
| Depth | 1.7 in |
| Height | 5.1 in |
| Weight | 2.96 oz |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | |
| Included Accessories | Stand |
| Compliant Standards | FCC Class B certified, C-Tick |
| Power | |
| Power Requirements | DC 5 V - 1.2 A |
| Power Device | Power adapter - external AC 120/230 V (50/60 Hz) 4.5 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 1280 x 720 |
| Digital Zoom | 10 |
| Minimum Illumination | 0 lux - IR - F1.4 |
| Video Capture | 1280 x 720 @ 30 fps ¦ 800 x 450 @ 30 fps ¦ 640 x 360 @ 30 fps ¦ 480 x 270 @ 30 fps ¦ 320 x 176 @ 30 fps |
| Supported Image Formats | JPEG |
| Lens Construction | |
| Focal Length | 3.6 mm |
| Lens Iris | F/1.4 |
| Horizontal Field of View (degree) | 64 |
| Vertical Field of View (degree) | 46.5 |
| Image Sensor | |
| Type | CMOS 1/4" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11ac |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, PPPoE, IGMP, QOS, CoS |
