NAS server - 8 bays - rack-mountable - SATA 3Gb/s - HDD - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 4 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|
| Product Description | Thecus Technology N8810U-G - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Dimensions (WxDxH) | 16.9 in x 23.1 in x 3.5 in |
| Weight | 51.35 lbs () |
| Processor | 1 x Intel Pentium G850 2.9 GHz (Dual-Core) |
| Storage Controller | RAID SATA 3Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| IP Cameras Supported | 10 |
| RAM | 4 GB |
| Power Redundancy | Yes |
| System Requirements | UNIX, Linux, Apple MacOS X, Microsoft Windows XP or later, Microsoft Windows Server 2003 or later |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 16.9 in |
| Depth | 23.1 in |
| Height | 3.5 in |
| Weight | 51.35 lbs () |
| Built-in Devices | Status LCD, LED panel |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 1 (total) / 0 (free) x PCI Express x8 |

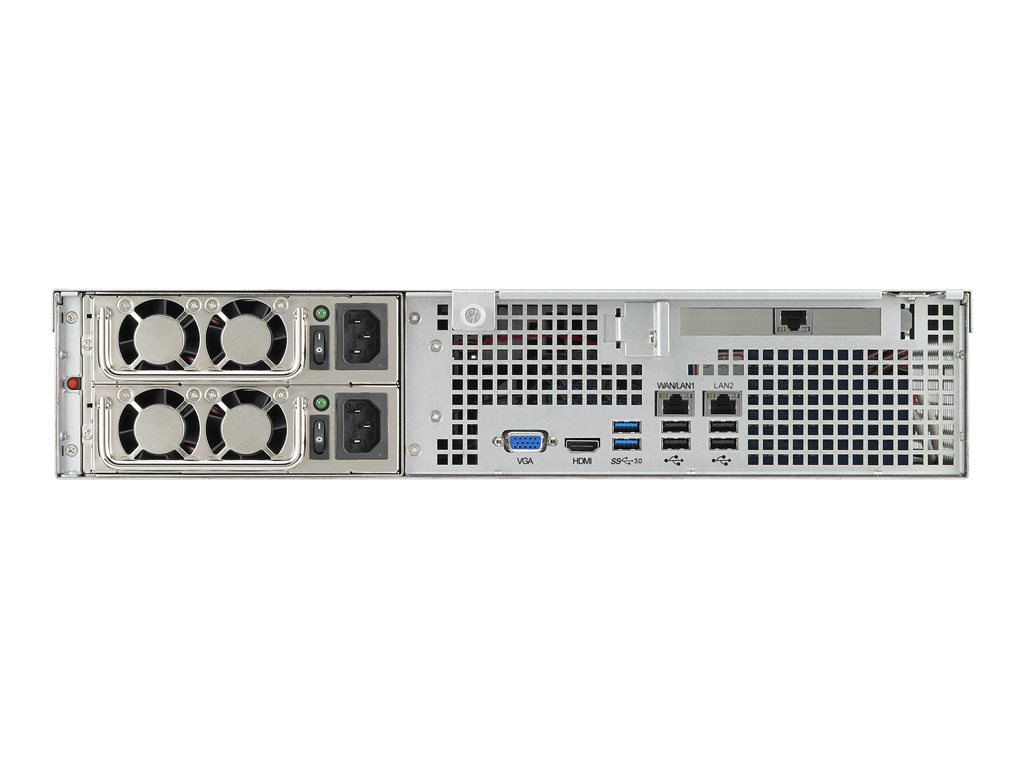

| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x Ethernet 10Gb ¦ 1 x HDMI output - Type A ¦ 1 x VGA - HD-15 ¦ 6 x USB 2.0 - Type A ¦ 2 x USB 3.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compliant Standards | VCCI, C-Tick, BSMI, FCC, RoHS, WEEE, AES-256 |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Network / Transport Protocol | TCP/IP, AppleTalk, NTP, iSCSI, FTP, DHCP |
| Remote Management Protocol | SNMP, HTTP, HTTPS, TFTP, SSH |
| Network Services Compatibility | Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS |
| Features | Load balancing, WOL, auto-uplink (auto MDI/MDI-X), print server, IPv6 support, backup server, ACL support, SSH support, iTunes server, DHCP server, FTP server, e-mail server, bandwidth control, IPv4 support, DHCP client, e-mail notification |
| Compliant Standards | IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Acronis True Image |
| OS Required | UNIX, Linux, Apple MacOS X, Microsoft Windows XP or later, Microsoft Windows Server 2003 or later |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 3Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Hard Drive | |
| Type | HDD - hot-swap |
| Processor / Memory | |
| Processors Installed | 1 x Intel Pentium G850 2.9 GHz |
| Number of Cores | Dual-Core |
| RAM | 4 GB DDR3 |
| Security DVR | |
| IP Cameras Supported | 10 |
