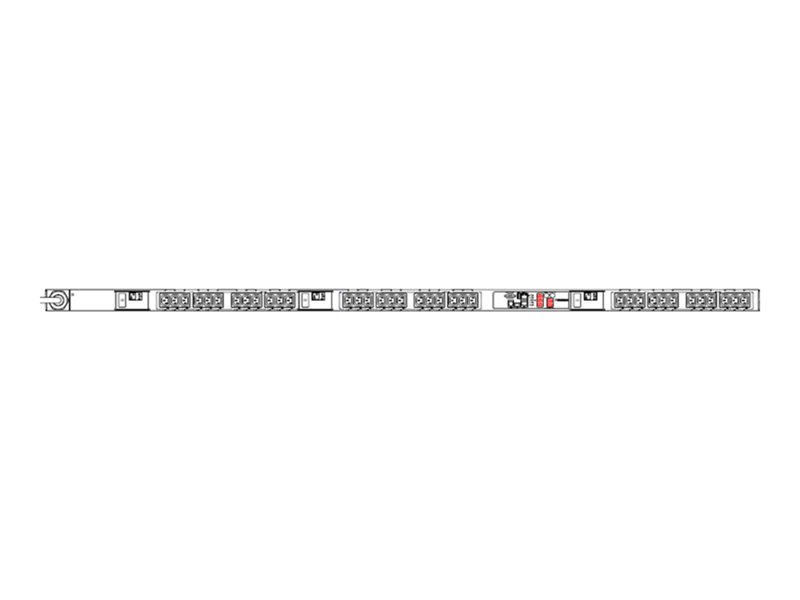

Power control unit (rack-mountable) - AC 208 V - 12600 VA - 3-phase - Ethernet 10/100, RS-232 - output connectors: 36 - 0U - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan Dominion PX PX2-2706 - power control unit - 12600 VA |
| Device Type | Power control unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 12600 VA |
| Input Connectors | 1 x Hubbell CS8365C |
| Output connectors | 36 x power IEC 60320 C13 |
| Networking | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Color | Black powder coat |
| Dimensions (WxDxH) | 2 in x 2.6 in x 70.1 in |
| General | |
| Device Type | Power control unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | LED display, voltage monitoring, current meter, overload protection, cascadable |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus, IP20 |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x Hubbell CS8365C |
| Power Output Connectors Details | 36 x power IEC 60320 C13 |
| Output Voltage | AC 208 V |
| Max Electric Current | 50 A |
| Power Capacity | 12600 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
