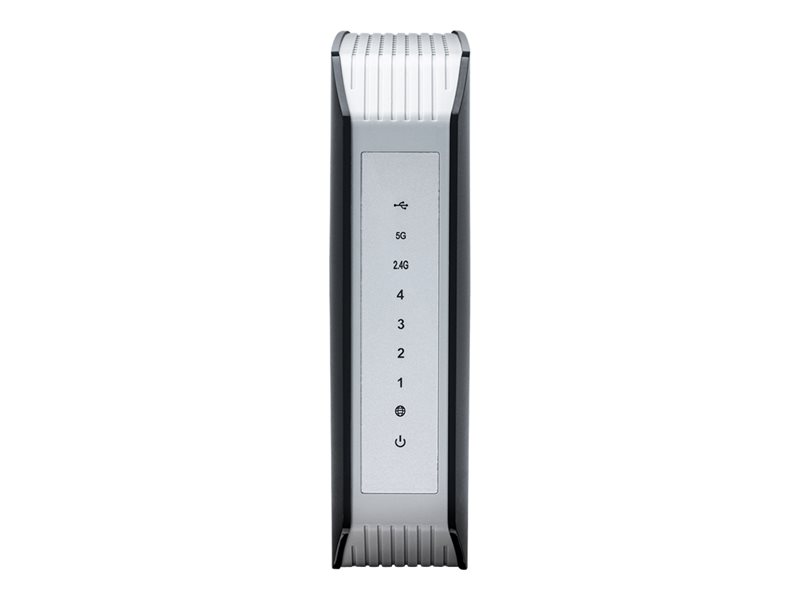

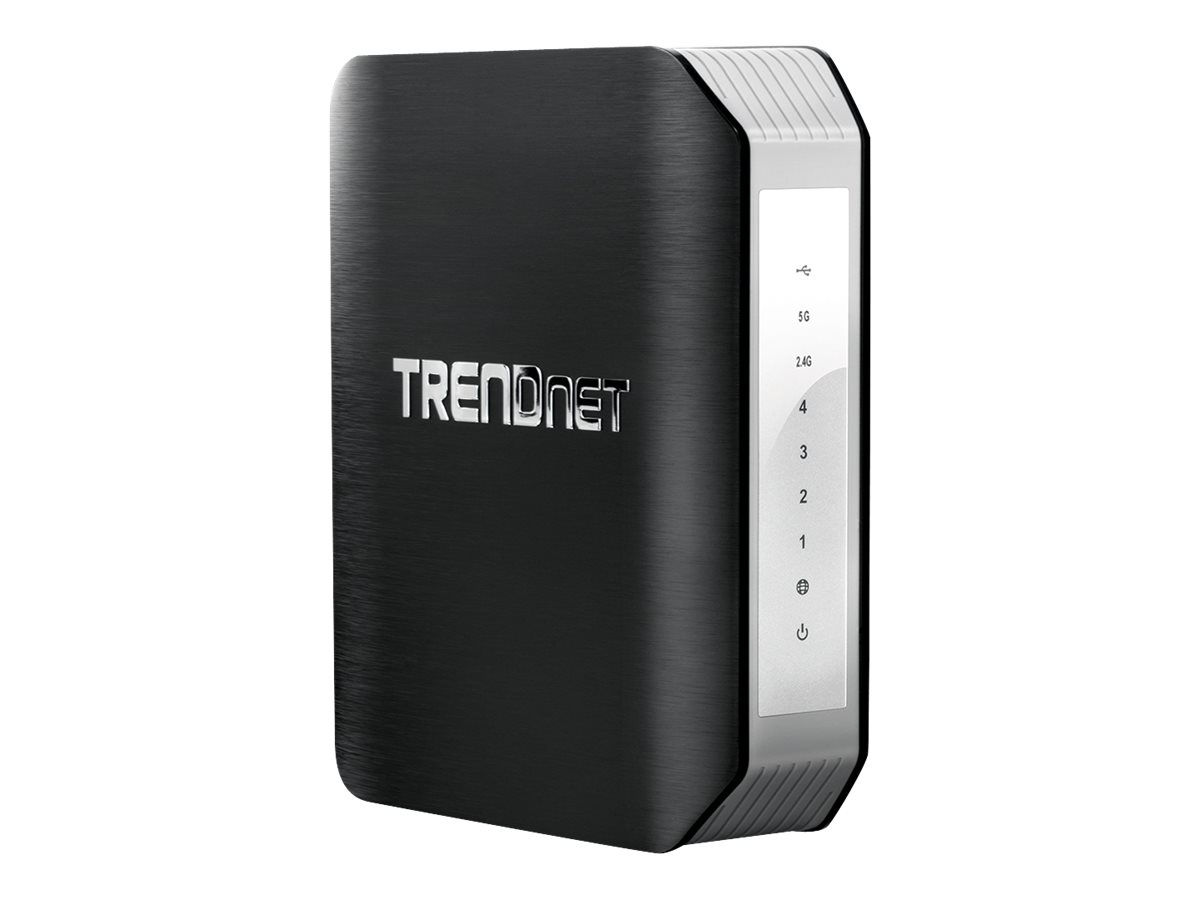

Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW-818DRU - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | DDNS |
| Features | NAT support, SPI, MAC address filtering, IPv6 support, WDS support, URL filtering, parental control, IP address filtering, GREENnet technology, QoS, WPS, Samba support, FTP server, pre-encrypted |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 6.1 in x 1.9 in x 7.1 in |
| Weight | 13.93 oz |
| System Requirements | Microsoft Windows XP, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.6, Apple MacOS X 10.5, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Microsoft Windows 7 / Windows 8, Windows 8.1, Apple OS X 10.9 Mavericks |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | DDNS |
| Encryption Algorithm | WPA2 |
| Authentication Method | Radio Service Set ID (SSID) |
| Features | NAT support, SPI, MAC address filtering, IPv6 support, WDS support, URL filtering, parental control, IP address filtering, GREENnet technology, QoS, WPS, Samba support, FTP server, pre-encrypted |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0), ETSI, FCC |
| Expansion / Connectivity | |

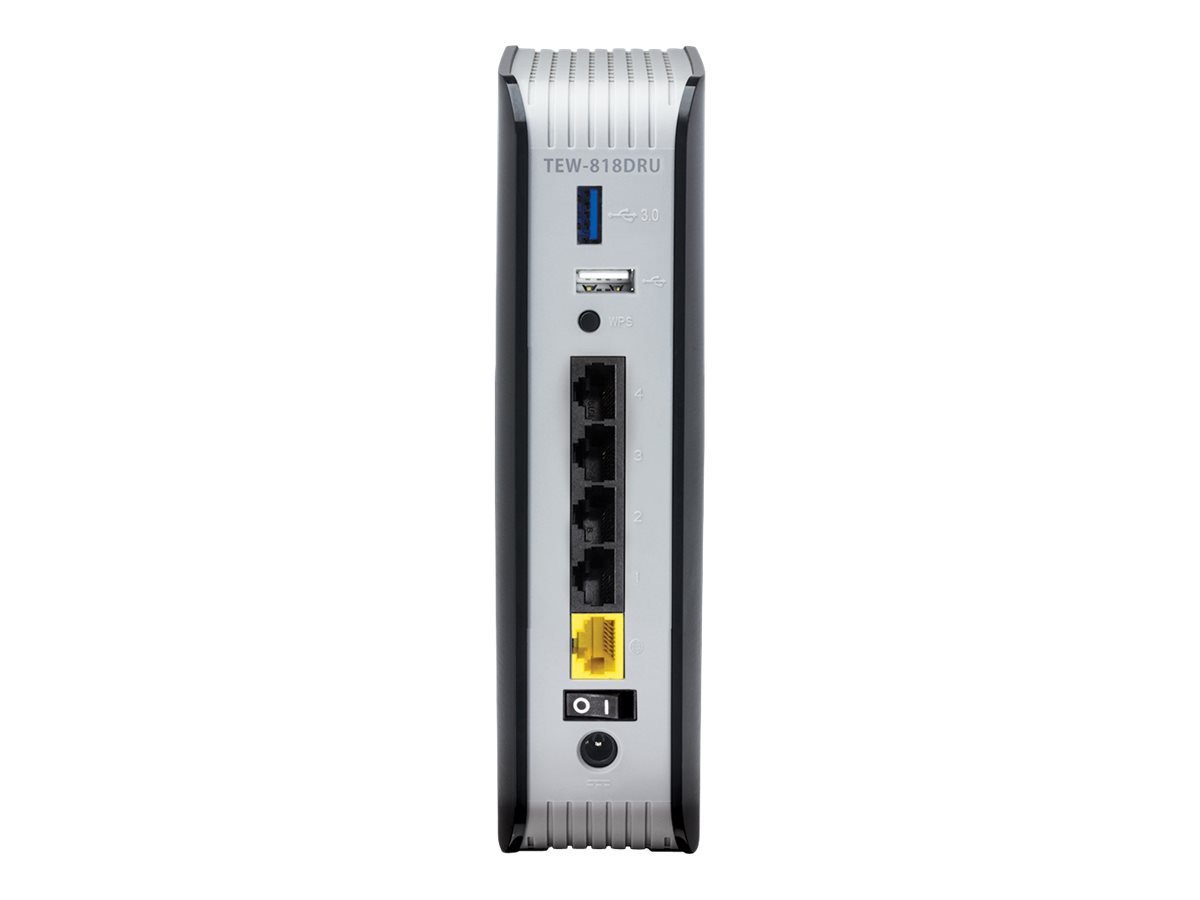

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ USB 3.0: 1 x 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 5 ft |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 22 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows XP, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.6, Apple MacOS X 10.5, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Microsoft Windows 7 / Windows 8, Windows 8.1, Apple OS X 10.9 Mavericks |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.1 in |
| Depth | 1.9 in |
| Height | 7.1 in |
| Weight | 13.93 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Gain Level | 6 dBi |
