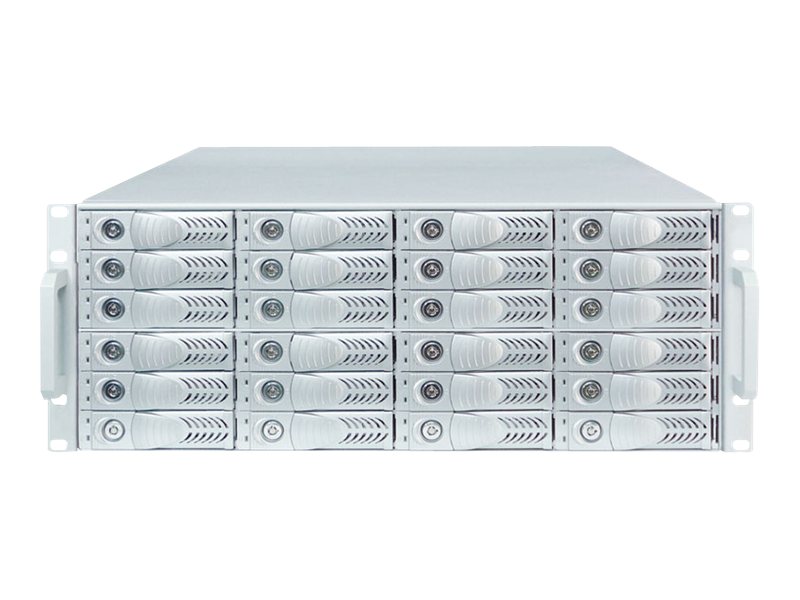

Storage enclosure - 24 bays (SATA-600 / SAS) - rack-mountable - 4U
| Main Specifications | |
|---|---|
| Product Description | HighPoint NA381TB - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Installed Devices / Modules Qty | 24 (max) |
| Supported Drives | SATA-600 / SAS |
| Hard Drive | No HDD |
| OS Required | Apple MacOS X 10.6.8 |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 19 in x 22 in x 6.9 in |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) - 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCIe 2.0 x8 ¦ 1 (total) / 1 (free) x PCIe 2.0 x4 |
| Interfaces | 1 x Thunderbolt 2 |
| Miscellaneous | |
| Features | Overheat protection, audible alarm, built-in 3 cooling fans, daisy chaining support |
| Cables Included | 1 x Thunderbolt cable - 6.6 ft |
| Included Accessories | 2 x keys |
| Processor | |
| CPU | No CPU |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 650 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| System Requirements | |
| OS Required | Apple MacOS X 10.6.8 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 22 in |
| Height | 6.9 in |
| Chassis | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SATA-600 / SAS |
