Tower - ATX - no power supply (ATX / PS/2) - USB/Audio
| Main Specifications | |
|---|---|

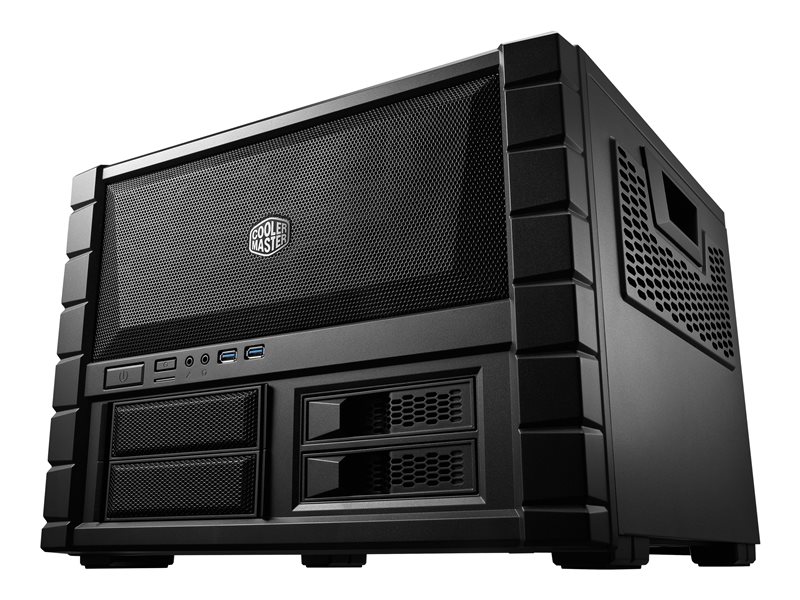

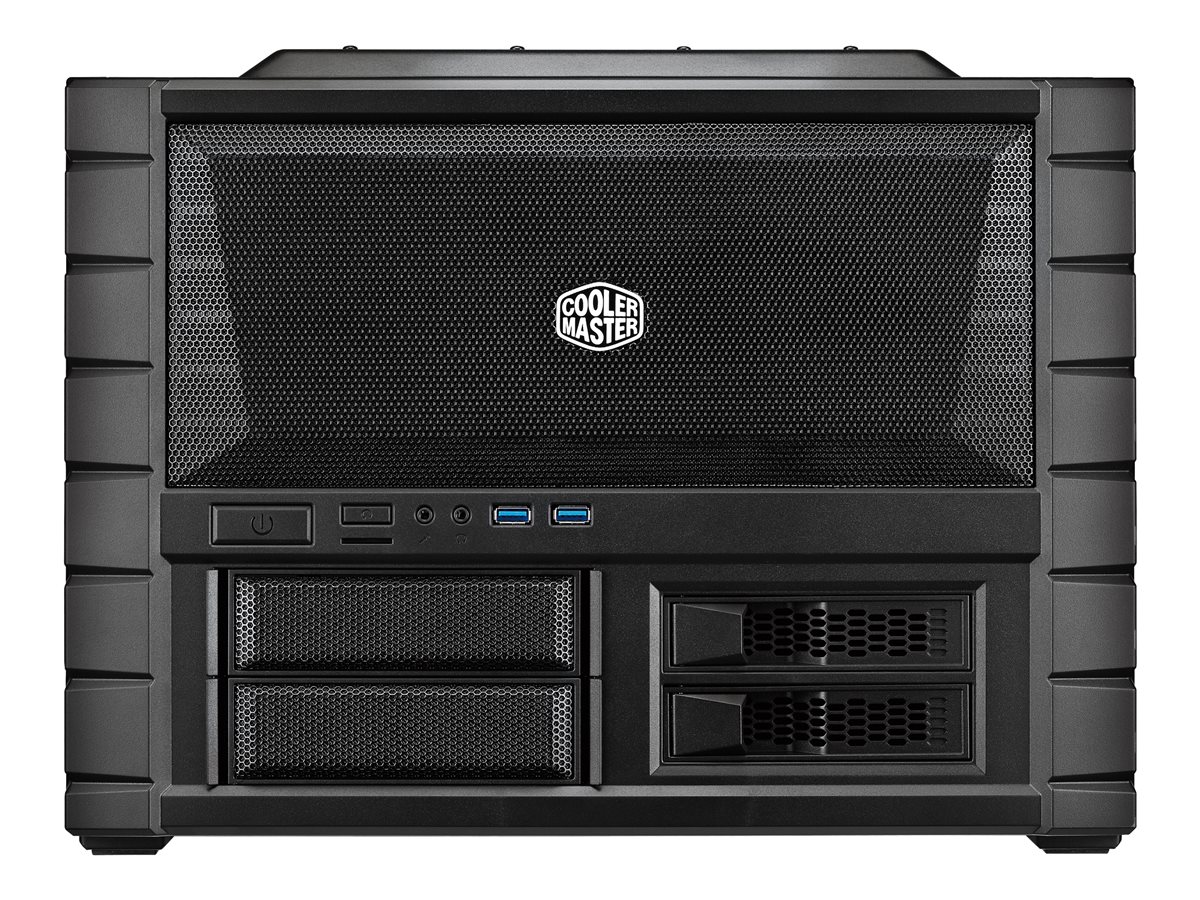

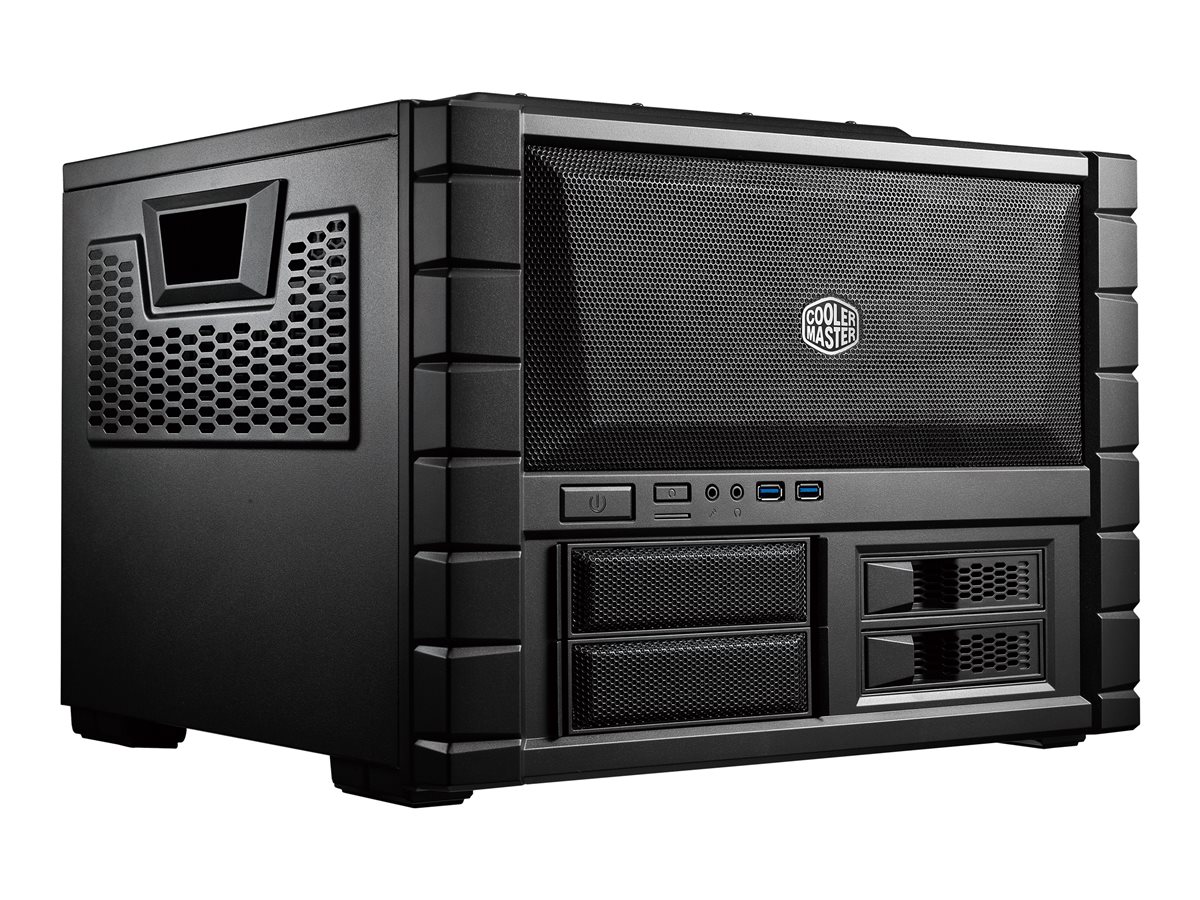

| Product Description | Cooler Master HAF XB EVO - tower - ATX |
| Product Type | System cabinet |
| Form Factor | Tower |
| I/O Connectors | 2 x USB 3.0 ¦ 1 x microphone ¦ 1 x audio line-out |
| Supported Motherboards | ATX, microATX, Mini-ITX |

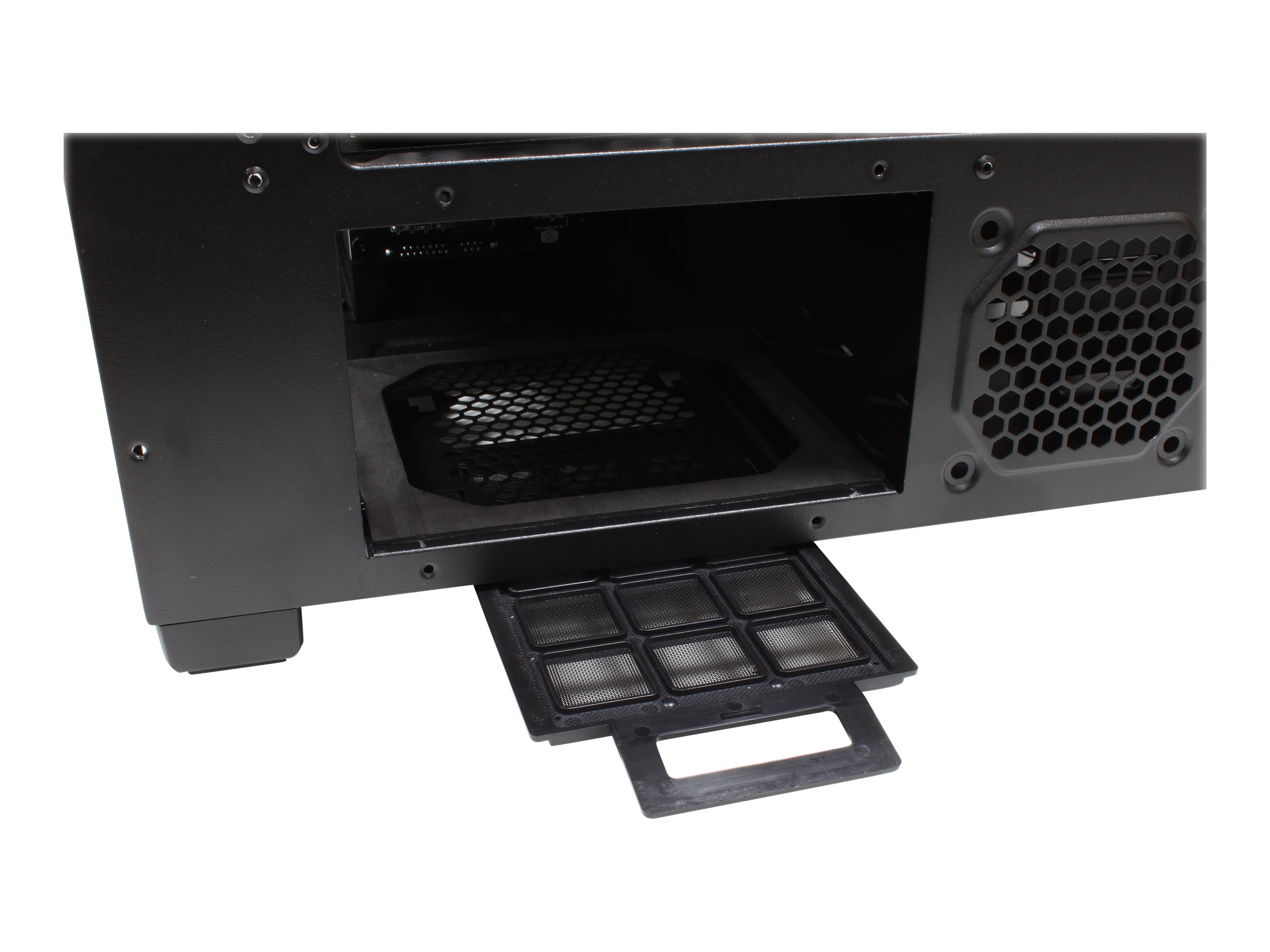

| System Cabinet Features | Carrying handle, removable dust filter, meshed front panel, liquid cooling holes, meshed top |
| Power Device | No power supply (ATX / PS/2) |
| Dimensions (WxDxH) | 17.4 in x 16.7 in x 13 in |
| Weight | 18.08 lbs |
| General | |
| Form Factor | Tower |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 2 |
| Cooling System | Front: 120 mm fan x 2 / 1200 rpm / 17 dBA / 2 x 120/140 mm fan supported ¦ Rear: 120 mm fan mount x 1 / 2 x 80 mm fan supported ¦ Top: 200 mm fan mount x 1 |
| CPU Cooler Max Height | 180 mm |
| Video Card Max Length | 334 mm |
| System Cabinet Features | Carrying handle, removable dust filter, meshed front panel, liquid cooling holes, meshed top |
| Expansion / Connectivity | |

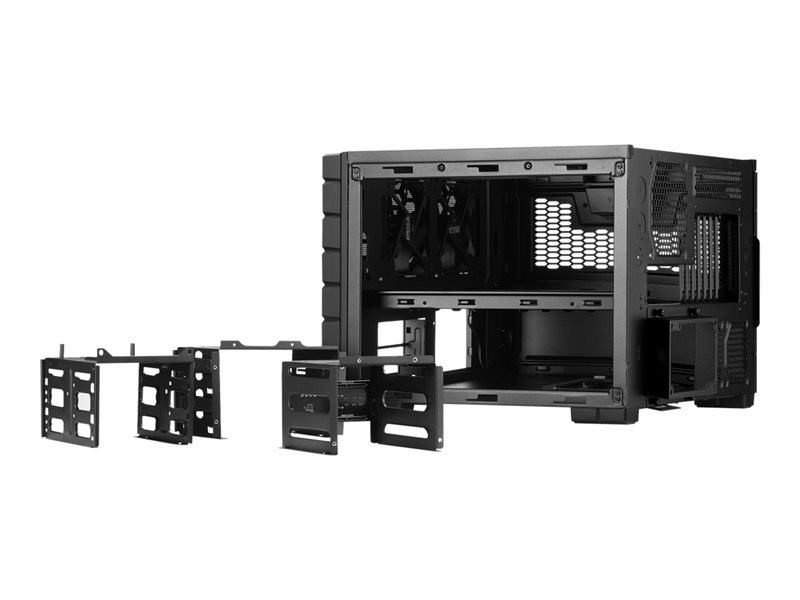

| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" ¦ 4 (total) / 4 (free) x internal - 3.5" |

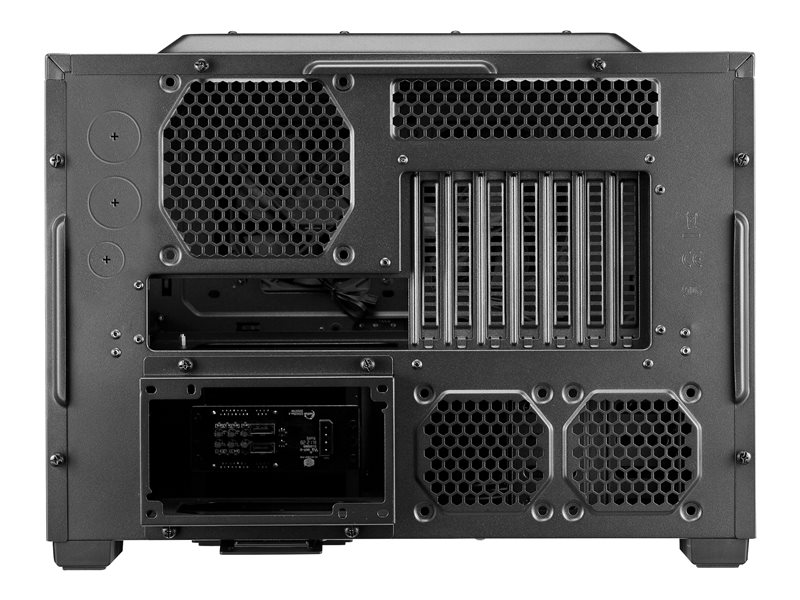

| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX / PS/2 |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 16.7 in |
| Height | 13 in |
| Weight | 18.08 lbs |
