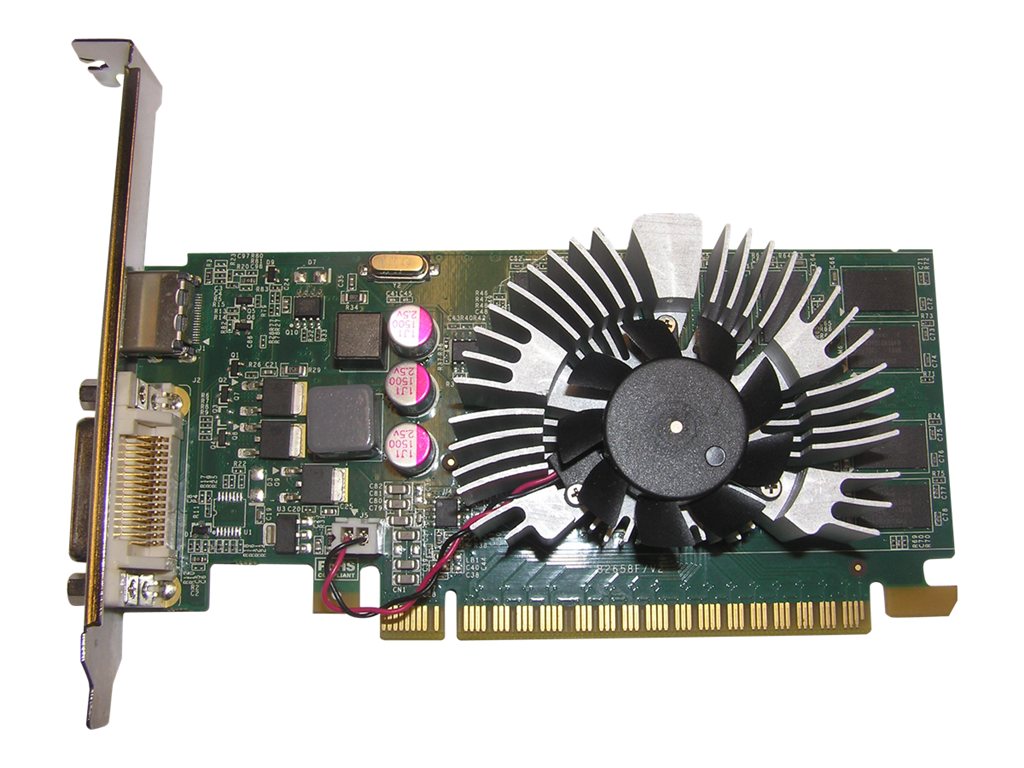

Graphics card - GF GT 630 - 1 GB DDR3 - PCIe x16 low profile - HDMI, DMS-59
| Main Specifications | |
|---|---|
| Product Description | Jaton VIDEO-PX658-DLP-LX - graphics card - GF GT 630 - 1 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express x16 |
| Graphics Engine | NVIDIA GeForce GT 630 |
| Memory | 1 GB DDR3 |
| RAMDAC | 400 MHz |
| Max Resolution | 2560 x 1600 |
| Max Resolution Details | DVI: 2560 x 1600 / HDMI: 1900 x 1200 / VGA: 2048 x 1536 at 85Hz |
| Interfaces Details | 2 x DVI-I (DMS-59) - with adapter ¦ HDMI |
| API Supported | DirectX 11 |
| Dimensions (WxDxH) | 5.7 in x 2.7 in |
| General | |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express x16 |
| Graphics Engine | NVIDIA GeForce GT 630 |
| RAMDAC | 400 MHz |
| Max Resolution | 2560 x 1600 |
| Max Resolution Details | DVI: 2560 x 1600 / HDMI: 1900 x 1200 / VGA: 2048 x 1536 at 85Hz |
| Interfaces Details | 2 x DVI-I (DMS-59) - with adapter ¦ HDMI |
| API Supported | DirectX 11 |
| Features | Nvidia nVIEW Multi-Display Technology, Nvidia CUDA technology, Nvidia GigaThread technology, Shader Model 5.0, Blu-Ray 3D Support |
| Memory | |
| Size | 1 GB |
| Technology | DDR3 SDRAM |
| Miscellaneous | |
| Cables Included | 1 x DMS-59 to 2 x DVI adapter |
| Software Included | Drivers & Utilities |
| Depth | 5.7 in |
| Height | 2.7 in |
| System Requirements | |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Min Processor Type | Pentium 4 |
| Min Hard Drive Space | 200 MB |
| Required Power Supply | 300 W |
| Additional Requirements | CD-ROM |
