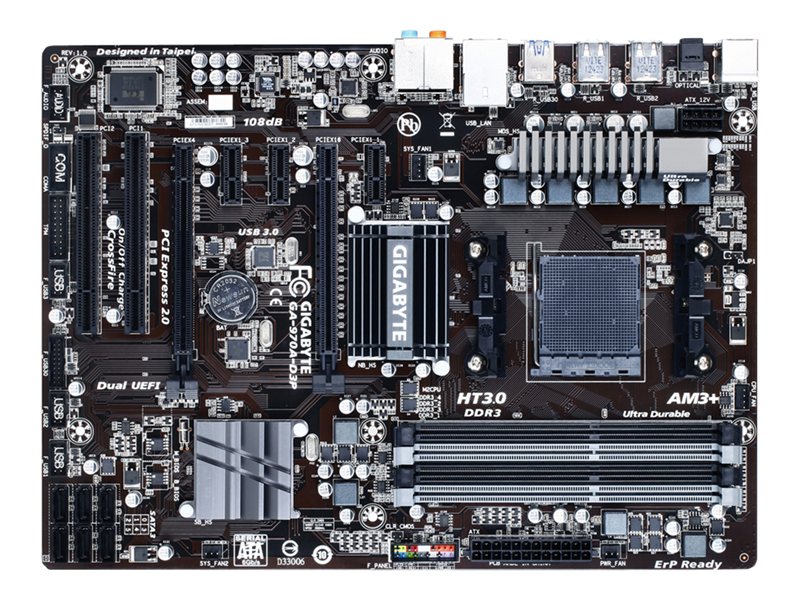

1.0 - motherboard - ATX - Socket AM3+ - AMD 970 Chipset - USB 3.0 - Gigabit LAN - HD Audio (8-channel)
| Main Specifications | |
|---|---|
| Product Description | Gigabyte GA-970A-D3P - 1.0 - motherboard - ATX - Socket AM3+ - AMD 970 |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD 970 / AMD SB950 |
| Processor Socket | 1 x Socket AM3+ |
| Compatible Processors | Opteron, Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX |
| Data Bus Transfer Rate | 4.8 GT/s |
| Max RAM Size | 32 GB |
| RAM Supported | 4 DIMM slots - DDR3 |
| Storage Ports | 6 x SATA-600 (RAID) |
| USB / FireWire Ports | 2 x USB 3.0 + 8 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD 970 / AMD SB950 |
| Data Bus Transfer Rate | 4.8 GT/s |
| Processor Socket | Socket AM3+ |
| Max Processors Qty | 1 |
| Compatible Processors | Opteron, Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 240-pin (1.5 V) ¦ 1 x PCIe 2.0 x16 ¦ 1 x PCIe 2.0 x16 (x4 mode) ¦ 3 x PCIe 2.0 x1 ¦ 2 x PCI |
| Storage Interfaces | AMD SB950: SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 8 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 1 x audio - header ¦ 1 x SPDIF out - header ¦ 6 x USB 2.0 - header ¦ 1 x serial - header ¦ 2 x USB 3.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install |
| Compliant Standards | Plug and Play, ACPI 2.0a, Energy-Related Products (ErP) Lot 6 |
| Width | 12 in |
| Depth | 8.8 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | VIA VT2021 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, power supply fan tachometer |
| Hardware Features | DualBIOS, Q-Flash, 4+1 Phase Power Design, 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, GIGABYTE 333 Onboard Acceleration, Ultra Durable 4 Classic, AMD CrossFireX technology support, ESD Protection |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 32 GB |
| Technology | DDR3 |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2000 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
