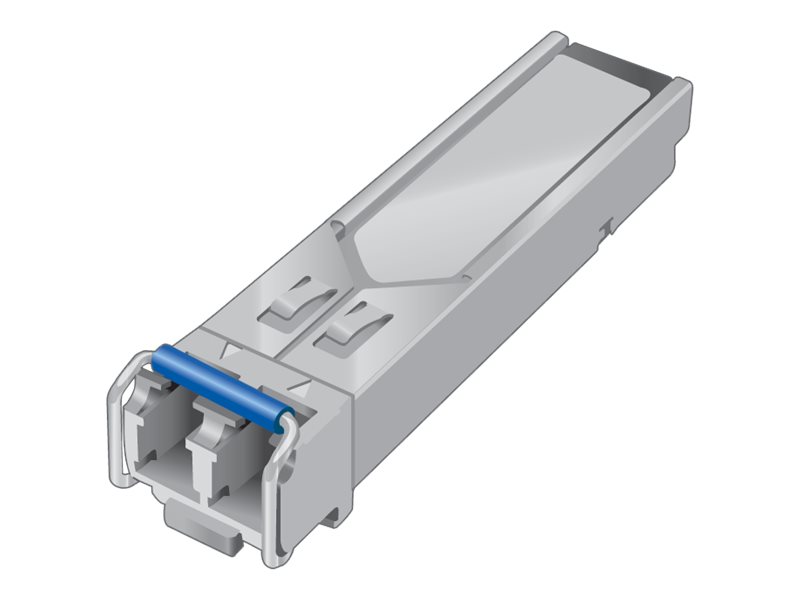

SFP+ transceiver module - 10GbE - LC single-mode - up to 12.4 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | ADTRAN Small Form-Factor Pluggable 10 Gigabit Single-Mode Limiting SFP+ - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 12.4 miles |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x network - LC single-mode female x 2 |
| Compatible Slots | 1 x SFP+ |
| Miscellaneous | |
| Compliant Standards | FCC Part 15, RoHS, Laser Class 1, WEEE, IEC 60825-1, EN 60825-1, EN 60825-2, IEC 60825-2, GR-1089-CORE, MSA SFF-8472, GR-63-CORE |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 12.4 miles |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
