1.0 - motherboard - micro ATX - LGA1150 Socket - Q87 Chipset - USB 3.0 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

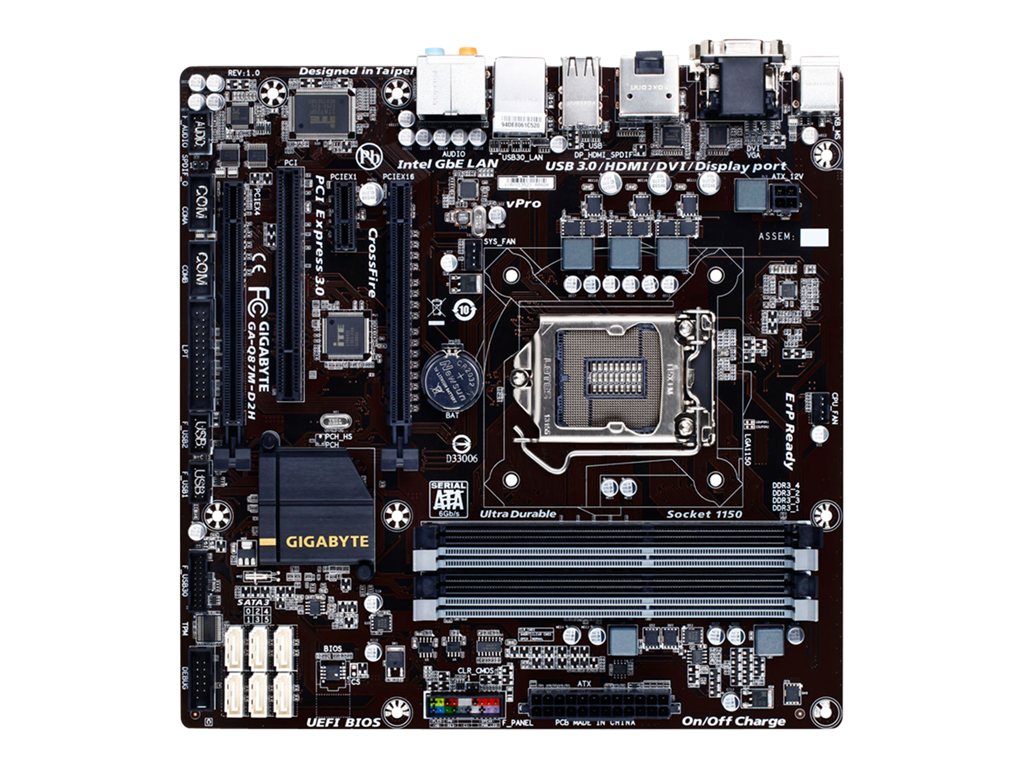

| Product Description | Gigabyte GA-Q87M-D2H - 1.0 - motherboard - micro ATX - LGA1150 Socket - Q87 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q87 |
| Compatibility | Intel vPro |
| Processor Socket | 1 x LGA1150 Socket |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
| Max RAM Size | 32 GB |
| RAM Supported | 4 DIMM slots - DDR3, non-ECC |
| USB / FireWire Ports | 2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers) |
| Max Allocated RAM Size | 1 GB |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q87 |
| Compatibility | Intel vPro |
| Processor Socket | LGA1150 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 240-pin (1.5 V) ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x16 (x4 mode) ¦ 1 x PCIe 2.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 4 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x TOSLINK ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x DVI-D (dual link) ¦ 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 2 x serial - header ¦ 1 x SPDIF out - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Miscellaneous | |
| Software Included | Norton Internet Security, GIGABYTE EZ Setup, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | ACPI 2.0a |
| Width | 9.6 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Hardware Features | 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, One Port One Fuse, GIGABYTE 333 Onboard Acceleration, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage support, ESD Protection, Ultra Durable 4 Plus |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Max Allocated RAM Size | 1 GB |
| Supported RAM | |
| Max Size | 32 GB |
| Technology | DDR3 |
| Bus Clock | 1600 MHz, 1333 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
