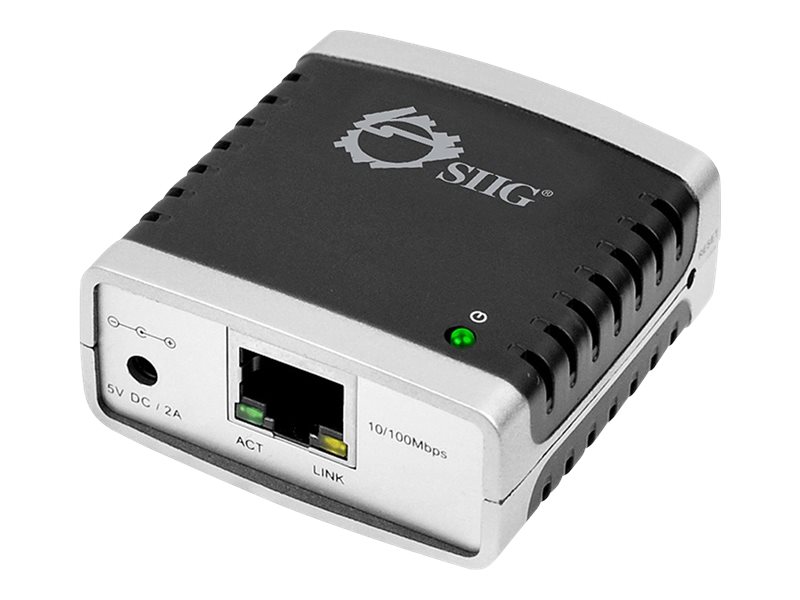

Device server - 100Mb LAN, USB 2.0
| Main Specifications | |
|---|---|
| Product Description | SIIG USB over IP - device server |
| Device Type | Device server |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, USB 2.0 |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits) |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 2.1 in x 0.9 in x 2.1 in |
| Weight | 1.44 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Device server |
| Width | 2.1 in |
| Depth | 0.9 in |
| Height | 2.1 in |
| Weight | 1.44 oz |
| Enclosure Color | Black, silver |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 3.3 ft |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, USB 2.0 |
| Network / Transport Protocol | TCP/IP, LPR/LPD, DHCP |
| Status Indicators | Power, link OK, link/activity |
| Features | Auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, UPnP |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
