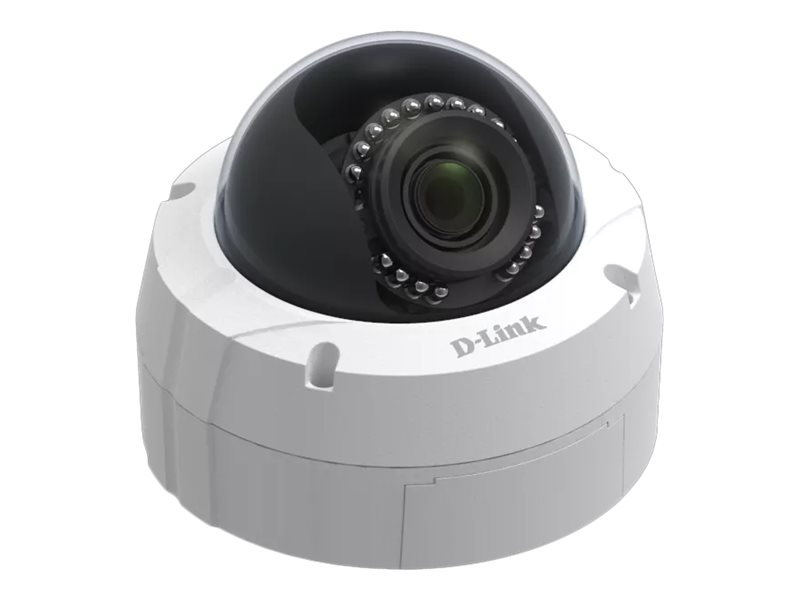

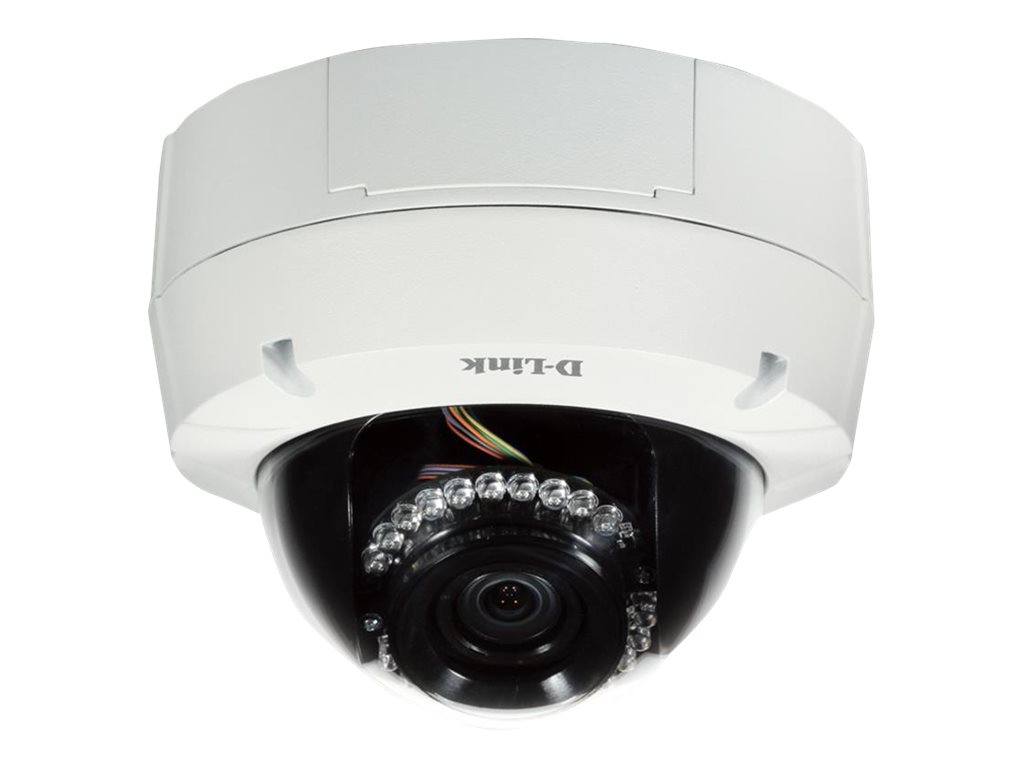

Network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 3 MP - 2048 x 1536 - vari-focal - audio - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 12 V / PoE
| Main Specifications | |
|---|---|

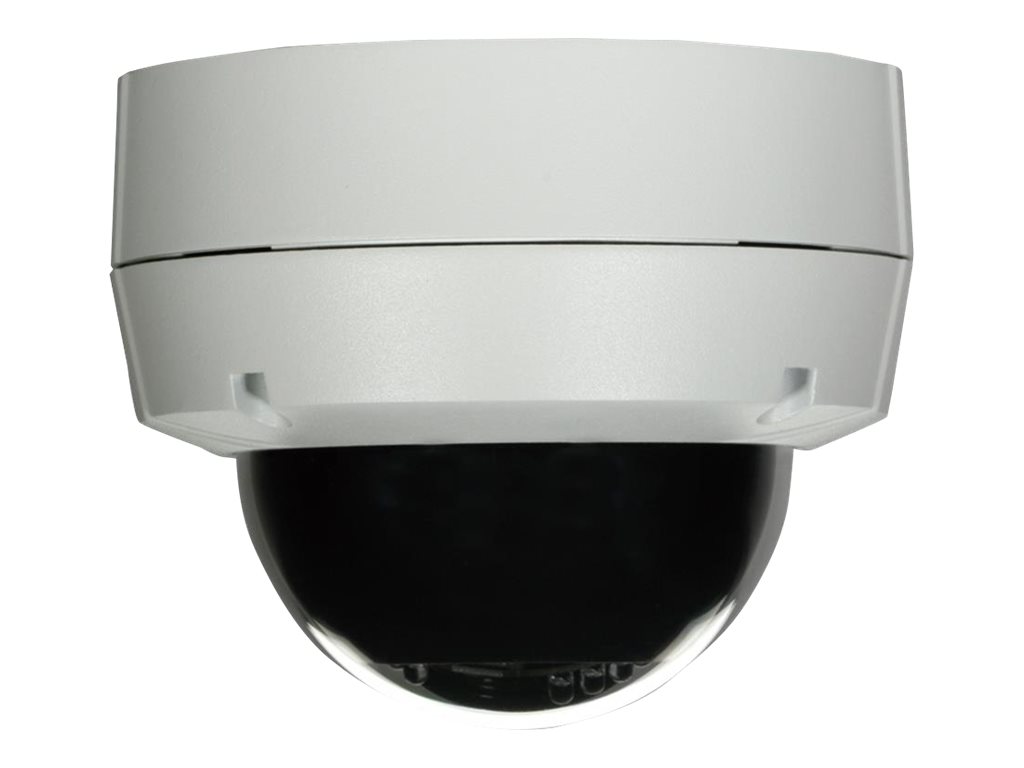

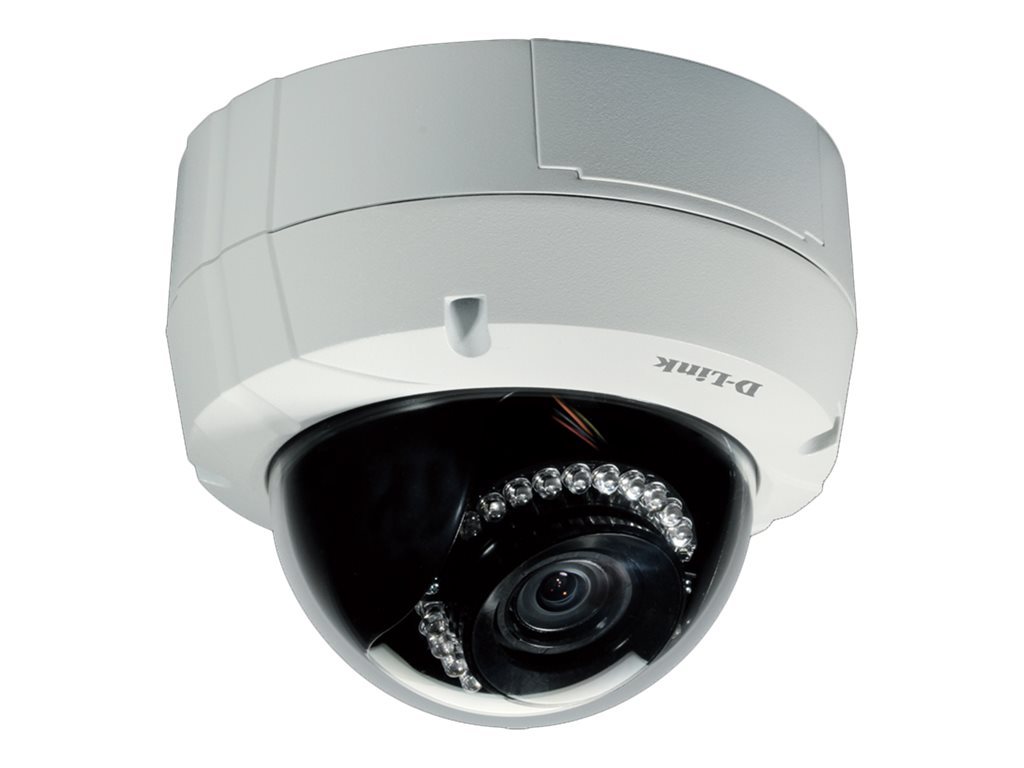

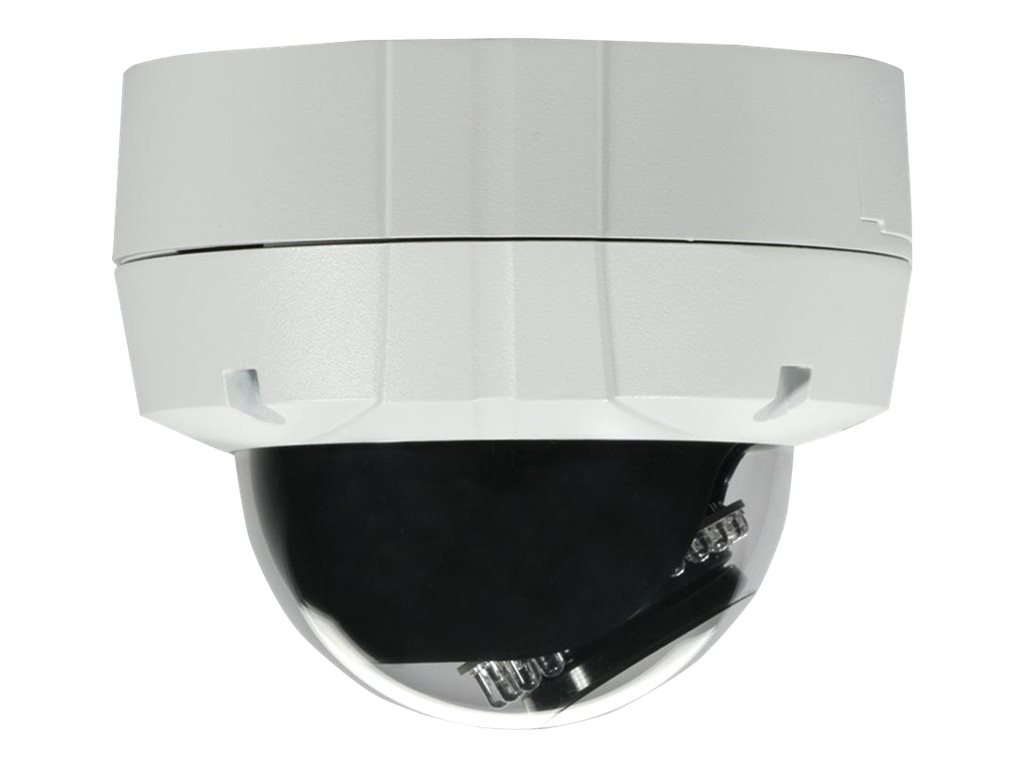

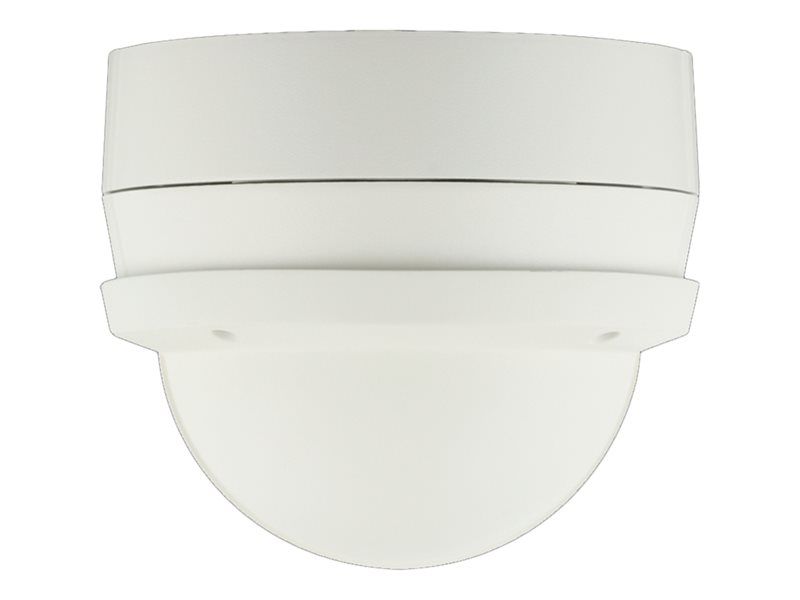

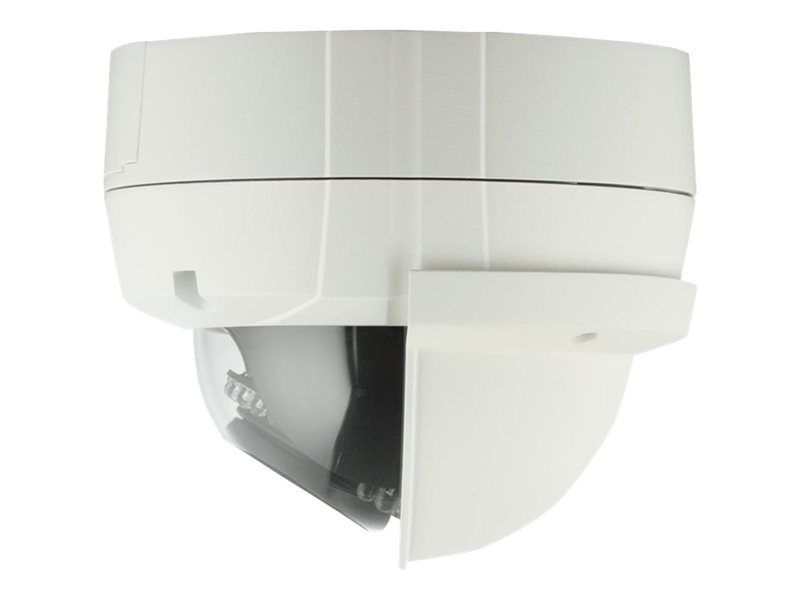

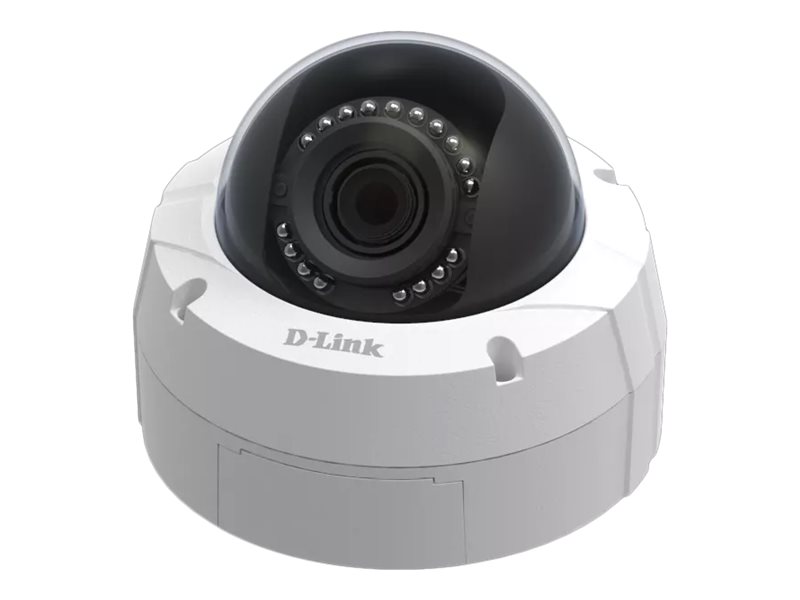

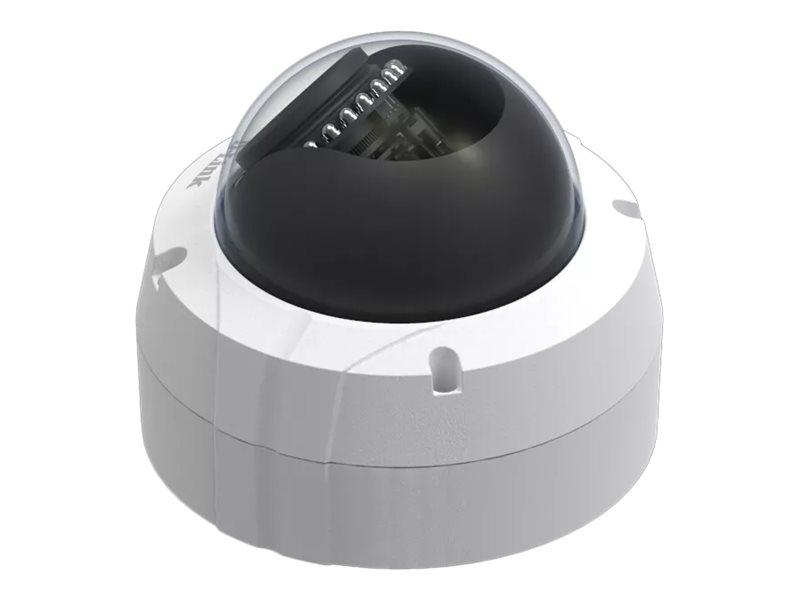

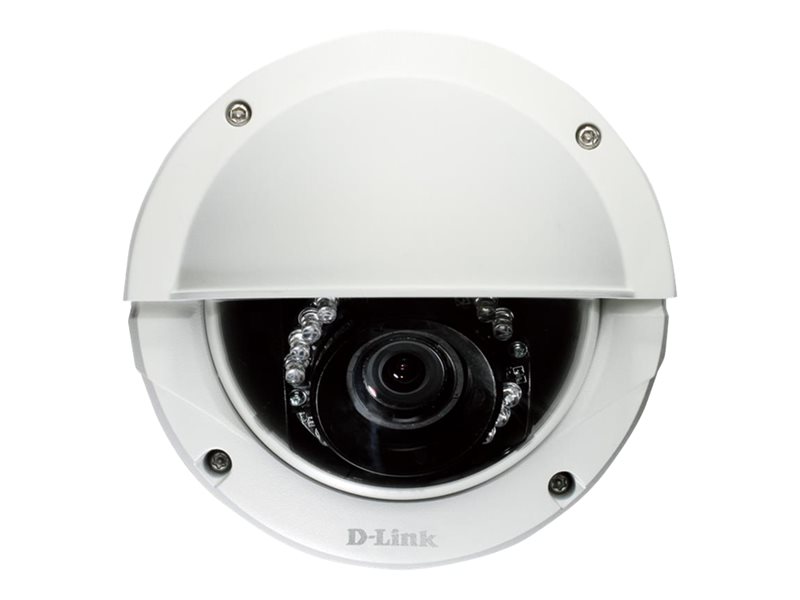

| Product Description | D-Link DCS 6513 Full HD WDR Day & Night Outdoor Dome Network Camera - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 6 in x 7.6 in x 5 in |
| Weight | 3.37 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 3 x |
| Max Resolution | 2048 x 1536 |
| Optical Sensor Type | CMOS - 1/2.8" - 3 MP |
| Minimum Illumination | 0 lux - IR ¦ 0.5 lux - color - F1.2 |
| Focal Length Control | Vari-focal |
| Focal Length | 3 mm - 9 mm |
| Lens Iris | F/1.2 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | Motion sensor, date/time stamp, sharpness control, progressive scanning, saturation control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), SDHC-card slot, ONVIF support, built-in LED illuminator, P-Iris control |
| Environmental Parameters (operating) | -40 °F - 122 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6 in |
| Depth | 7.6 in |
| Height | 5 in |
| Weight | 3.37 lbs |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x microphone - input ¦ 1 x speakers - output |
| Miscellaneous | |
| Compliant Standards | C-Tick, FCC, IP67, IK10 |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | Power adapter - external AC 120/230 V (50/60 Hz) 10.5 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 2000/XP/Vista/7, Windows 8 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 2048 x 1536 |
| Digital Zoom | 10 |
| Minimum Illumination | 0 lux - IR ¦ 0.5 lux - color - F1.2 |
| Supported Image Formats | JPEG |
| Features | Motion sensor, date/time stamp, sharpness control, progressive scanning, saturation control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), SDHC-card slot, ONVIF support, built-in LED illuminator, P-Iris control |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 3 x |
| Focal Length | 3 mm - 9 mm |
| Lens Iris | F/1.2 |
| Horizontal Field of View (degree) | 31.6 - 96.4 |
| Vertical Field of View (degree) | 17.7 - 51.2 |
| Image Sensor | |
| Type | 3 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, PPPoE, IGMP, Samba, QOS, CoS |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
