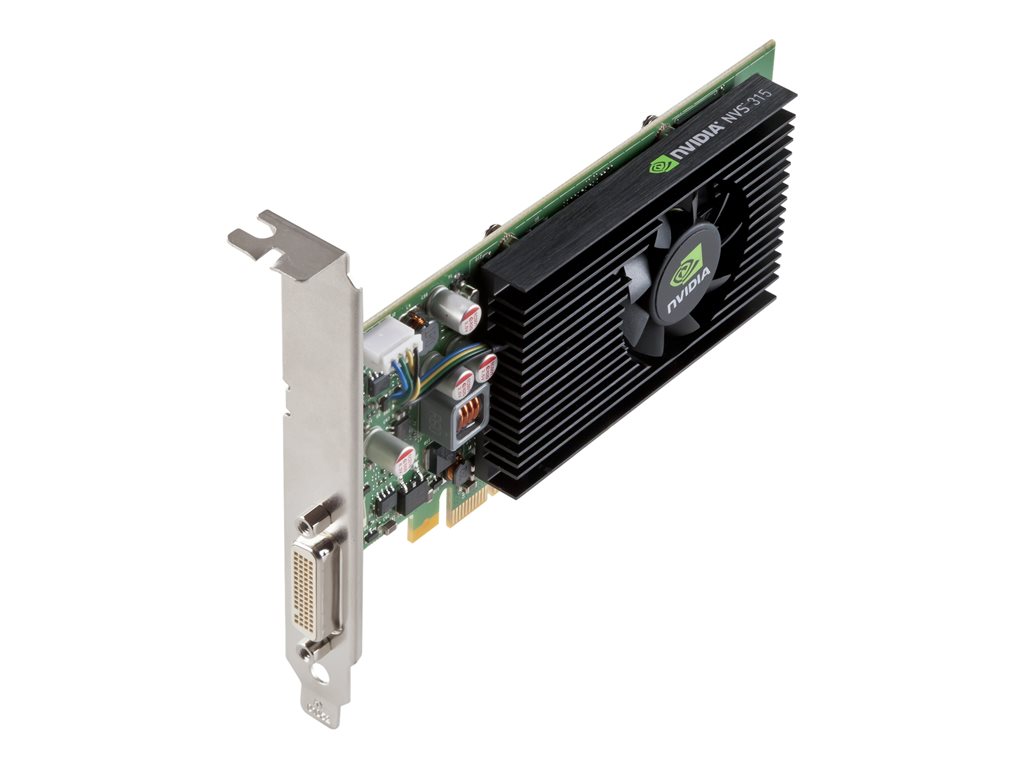

Graphics card - Quadro NVS 315 - 1 GB DDR3 - PCIe 2.0 x16 low profile - DMS-59 - retail
| Main Specifications | |
|---|---|
| Product Description | NVIDIA NVS - graphics card - Quadro NVS 315 - 1 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 2.0 x16 |
| Graphics Engine | NVIDIA Quadro NVS 315 |
| Memory | 1 GB DDR3 |
| CUDA Cores | 48 |
| RAMDAC | 400 MHz |
| Memory Interface | 64-bit |
| Max Resolution | 2048 x 1536 |
| Max Resolution Details | DVI: 1920 x 1080 / VGA: 2048 x 1536 |
| Max Monitors Supported | 2 |
| Interfaces Details | 2 x DVI-I (Single-Link) - with adapter ¦ 2 x VGA - with adapter ¦ DVI-I (DMS-59) |
| API Supported | DirectX 11, OpenCL, DirectCompute, OpenGL 4.3 |
| Dimensions (WxDxH) | 5.7 in x 2.7 in |
| Package Type | Retail |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 2.0 x16 |
| Graphics Engine | NVIDIA Quadro NVS 315 |
| CUDA Cores | 48 |
| RAMDAC | 400 MHz |
| Max Resolution | 2048 x 1536 at 85 Hz |
| Max Resolution Details | DVI: 1920 x 1080 / VGA: 2048 x 1536 |
| Max Monitors Supported | 2 |
| Interfaces Details | 2 x DVI-I (Single-Link) - with adapter ¦ 2 x VGA - with adapter ¦ DVI-I (DMS-59) |
| API Supported | DirectX 11, OpenCL, DirectCompute, OpenGL 4.3 |
| Features | NVIDIA Unified Driver Architecture (UDA), Nvidia nVIEW Multi-Display Technology, Nvidia CUDA technology, Nvidia GigaThread technology, Nvidia Scalable Geometry Engine, NVIDIA Mosaic, Hardware Video Decode Acceleration, Shader Model 5.0, Dolby Digital Plus, Dual-stream Hardware Acceleration, GPU Tessellation, Nvidia Unified GPU Architecture, ultra-quiet active fansink, HDCP |
| Memory | |
| Size | 1 GB |
| Technology | DDR3 SDRAM |
| Bus Width | 64-bit |
| Bandwidth | 14 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 19.5 Watt |
| Included Accessories | Low-profile bracket |
| Cables Included | 1 x DMS-59 to 2 x DVI cable ¦ 2 x DVI-VGA adapter |
| Software Included | Display drivers, Nvidia nView Advanced Desktop Software |
| Depth | 5.7 in |
| Height | 2.7 in |
| Package Type | Retail |
| System Requirements | |
| OS Required | Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3, Oracle Solaris, Windows 8 |
| Min RAM Size | 2 GB |
| Min Hard Drive Space | 200 MB |
| Additional Requirements | DVD-ROM |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
