Network surveillance camera - PTZ - outdoor - vandal / waterproof - color (Day&Night) - auto iris - motorized - LAN 10/100 - MJPEG, H.264
| Main Specifications | |
|---|---|

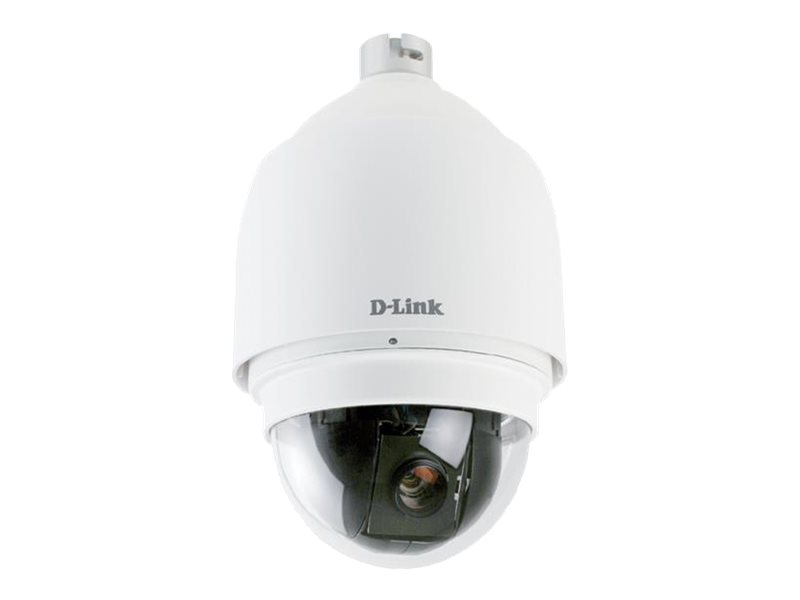

| Product Description | D-Link DCS-6915 Outdoor Speed Dome Full HD Camera - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - vandal / waterproof |
| Weight | 5.73 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 20 x |
| Optical Sensor Type | CMOS - 1/2.8" |
| Minimum Illumination | 0.8 lux - color - F1.2 ¦ 0.08 lux - B&W - F1.2 |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.7 mm - 84.6 mm |
| Focus Adjustment | Automatic |
| Lens Iris | Auto iris |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Features | SD card slot, heater, ONVIF support, built-in cooling fan, Auto Backlight Compensation, multi-streaming |
| Environmental Parameters (operating) | 32 °F - 122 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Weight | 5.73 lbs |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network - Ethernet 10Base-T/100Base-TX |
| Miscellaneous | |
| Compliant Standards | FCC, IP66 |
| Power | |
| Power Device | Power adapter - external AC 100/230 V 65 watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / waterproof |
| Digital Video Format | MJPEG, H.264 |
| Digital Zoom | 10 |
| Minimum Illumination | 0.8 lux - color - F1.2 ¦ 0.08 lux - B&W - F1.2 |
| Supported Image Formats | JPEG |
| Features | SD card slot, heater, ONVIF support, built-in cooling fan, Auto Backlight Compensation, multi-streaming |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.7 mm - 84.6 mm |
| Lens Iris | Auto iris |
| Focus Adjustment | Automatic |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, FTP, HTTP, SMTP, TCP/IP, UDP/IP, ICMP, HTTPS, IPv4, IPv6, RTCP, IGMP, 3GPP/ISMA |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 300 |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 200 |
