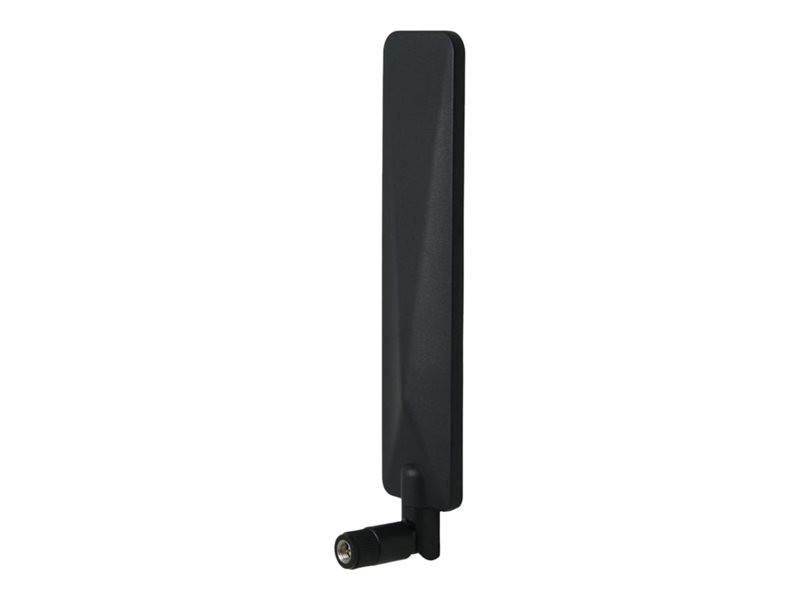

Antenna - cellular - 3 dBi - for P/N: EZ16-A100-EU, EZ16-A1G4-US, EZ16-C100, EZ16-C100-EU, EZ16-C2G4-US, EZ32-A200
| Main Specifications | |
|---|---|
| Product Description | Digi - antenna |
| Device Type | Antenna |
| Intended For | Cellular |
| Dimensions (WxDxH) | 1.5 in x 0.5 in x 7.7 in |
| Weight | 1.41 oz |
| Compatibility | LTE, 3G, 4G |
| Frequency Range | 1710 - 2690 MHz, 699 - 960 MHz |
| Gain | 3 dBi |
| Features | Linear polarization, VSWR < 3:1, VSWR < 5:1 |
| Designed For | P/N: EZ16-A100-EU, EZ16-A1G4-US, EZ16-C100, EZ16-C100-EU, EZ16-C2G4-US, EZ32-A200 |
| General | |
| Product Type | Antenna |
| Intended For | Cellular |
| Width | 1.5 in |
| Depth | 0.5 in |
| Height | 7.7 in |
| Weight | 1.41 oz |
| Product Material | ABS plastic |
| Antenna | |
| Compatibility | LTE, 3G, 4G |
| Frequency Range | 1710 - 2690 MHz, 699 - 960 MHz |
| Impedance | 50 Ohm |
| Gain | 3 dBi |
| Features | Linear polarization, VSWR < 3:1, VSWR < 5:1 |
| Compatibility Information | |
| Designed For | P/N: EZ16-A100-EU, EZ16-A1G4-US, EZ16-C100, EZ16-C100-EU, EZ16-C2G4-US, EZ32-A200 |
| Connector Provided | |
| Type | 1 x antenna - SMA (male) |
