Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | D-Link DIR-860L - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Features | NAT support, SPI, IPv6 support, VPN passthrough, parental control, WMM support, WPS, SharePort Plus Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, DLNA CERTIFIED, IEEE 802.11ac (draft 2.0) |
| Dimensions (WxDxH) | 4.7 in x 3.9 in x 7.5 in |
| Weight | 12.31 oz |
| System Requirements | Microsoft Windows XP SP2, Microsoft Windows 7, Apple MacOS X 10.4 or later, Microsoft Windows Vista, Windows 8 |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Encryption Algorithm | WPA, WPA2 |
| Features | NAT support, SPI, IPv6 support, VPN passthrough, parental control, WMM support, WPS, SharePort Plus Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, DLNA CERTIFIED, IEEE 802.11ac (draft 2.0), C-Tick, IC, FCC |
| Status Indicators | Power, WAN, WPS |
| Expansion / Connectivity | |

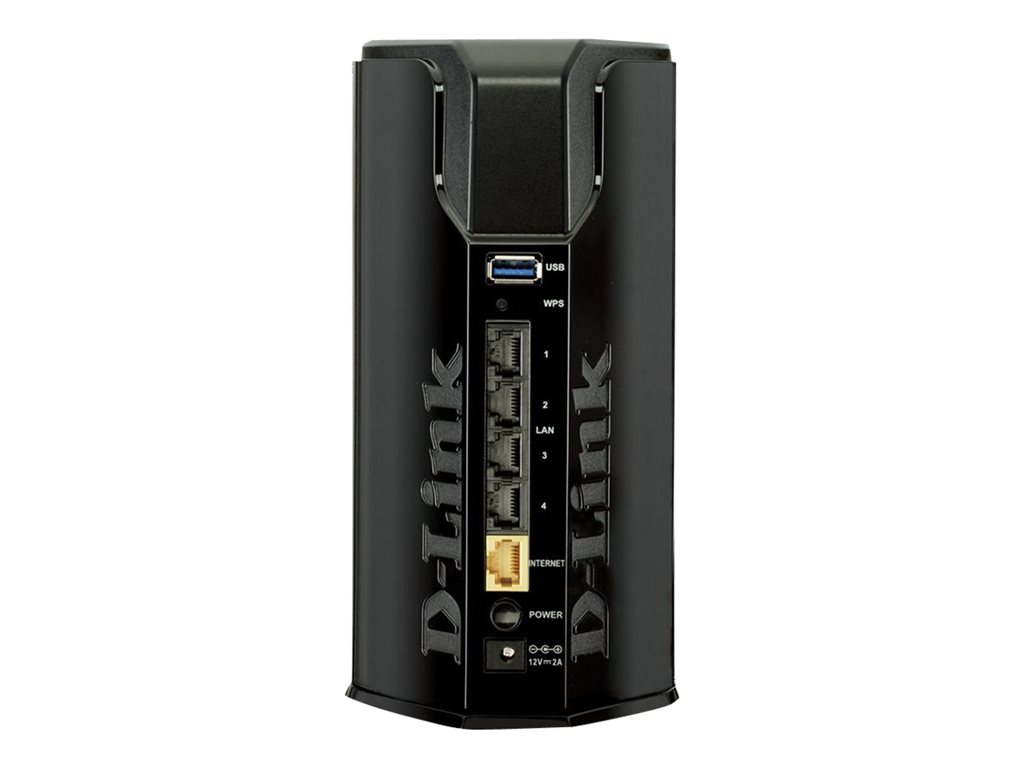

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP SP2, Microsoft Windows 7, Apple MacOS X 10.4 or later, Microsoft Windows Vista, Windows 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 3.9 in |
| Height | 7.5 in |
| Weight | 12.31 oz |
| Antenna | |
| Antenna | Internal |
