Power supply (internal) - ATX - 80 PLUS Gold - AC 100-240 V - 1000 Watt
| Main Specifications | |
|---|---|

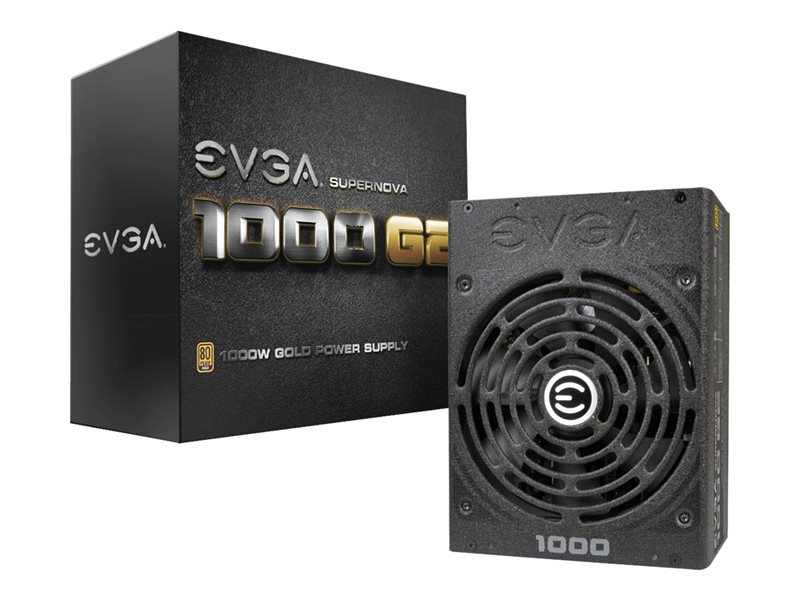

| Product Description | EVGA SuperNOVA 1000 G2 - power supply - 1000 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 6.61 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 83.3 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Output connectors | 1 x power 24 pin main output ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 6 pin PCI Express power ¦ 10 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |
| Dimensions (WxDxH) | 5.9 in x 7.9 in x 3.3 in |
| Manufacturer Warranty | 10-year warranty with product registration |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, SLI ready, undervoltage protection, cable management, short-circuit protection, single 12V rail |
| Compliant Standards | TUV, C-Tick, BSMI, CB, CCC, FCC, RoHS, cTUVus |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin main output ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 6 pin PCI Express power ¦ 10 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 83.3 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 90% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.9 in |
| Height | 3.3 in |
| Weight | 6.61 lbs |
