Power supply (internal) - ATX12V 2.31 - 80 PLUS Gold - AC 115/230 V - 1000 Watt - active PFC - United States
| Main Specifications | |
|---|---|

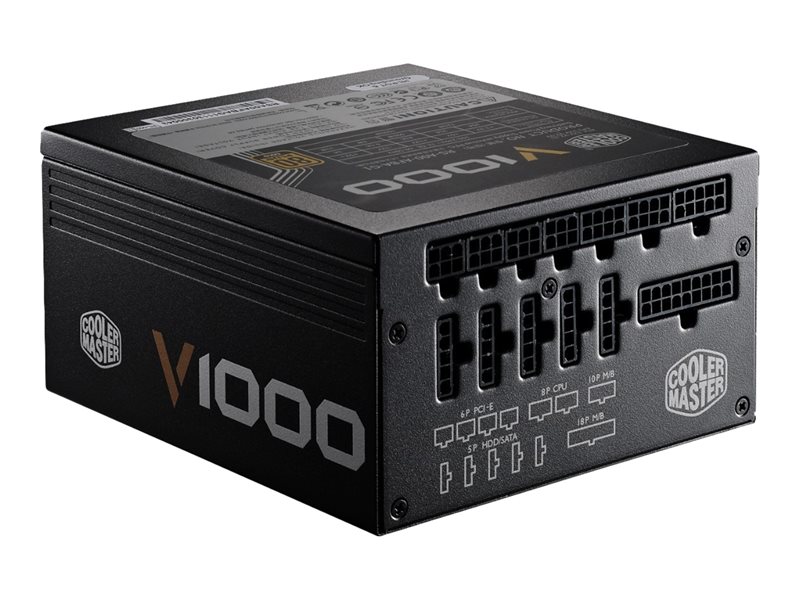

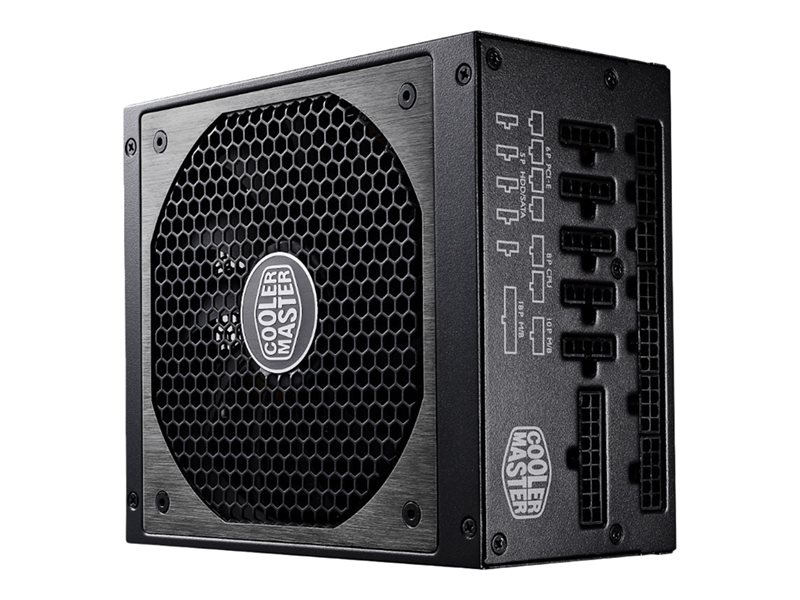

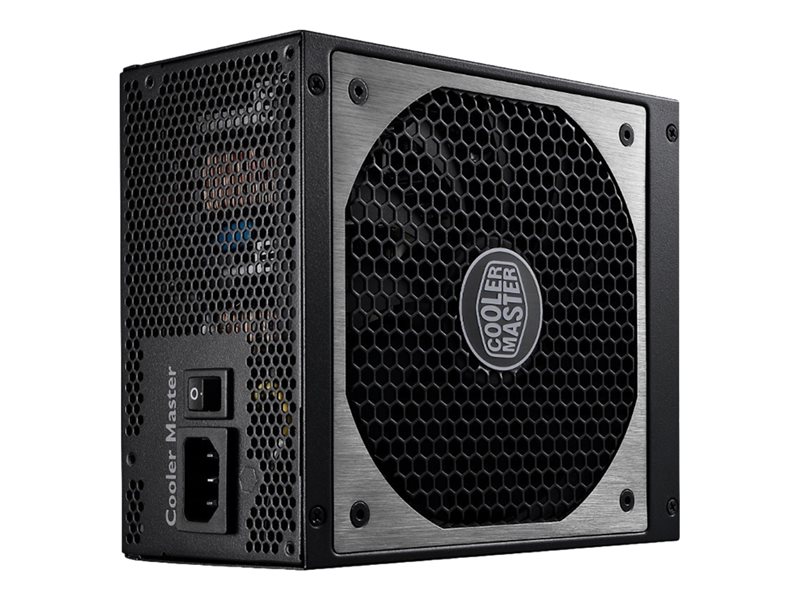

| Product Description | Cooler Master V Series V1000 - power supply - 1000 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| 80 PLUS Certification | 80 PLUS Gold |
| Localization | United States |
| Input Voltage | AC 115/230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |

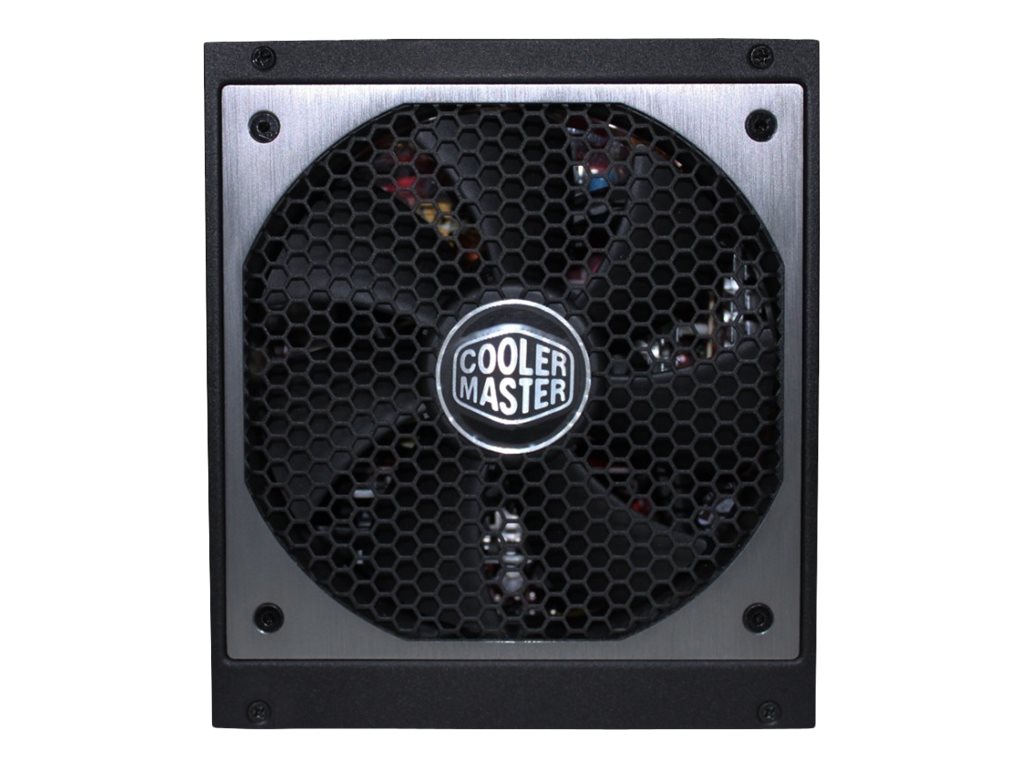

| Cooling System | 135 mm fan |
| Dimensions (WxDxH) | 5.9 in x 6.7 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Overheat protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fully modular |
| Compliant Standards | TUV, C-Tick, BSMI, GOST, CCC, FCC, KCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 93% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.7 in |
| Height | 3.4 in |
