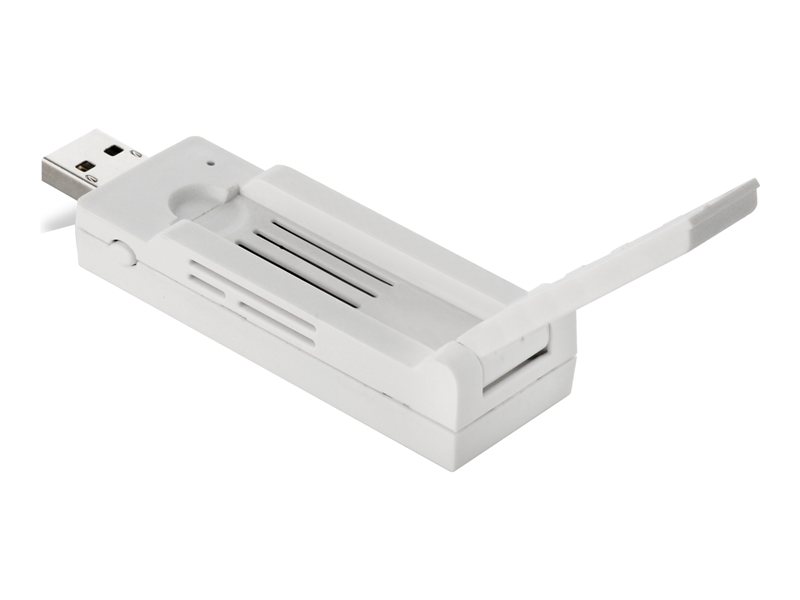

Network adapter - USB 3.0 - 802.11a, 802.11b/g/n, Wi-Fi 5
| Main Specifications | |
|---|---|
| Product Description | Edimax EW-7822UAC - network adapter - USB 3.0 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Dimensions (WxDxH) | 1.1 in x 3.4 in x 0.7 in |
| Weight | 0.81 oz |
| Data Link Protocol | 802.11a, 802.11b/g/n, Wi-Fi 5 |
| Data Transfer Rate | 867 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, USB 3.0, Wi-Fi Protected Setup, IEEE 802.11ac (draft) |
| System Requirements | Microsoft Windows Vista / XP / 7, Windows 8 |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Expansion / Connectivity | |
| Connections | 1 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Miscellaneous | |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Compliant Standards | PCT, FCC Part 15 B, R&TTE, RoHS, WEEE |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft) |
| Data Transfer Rate | 867 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Link/activity |
| Features | WPS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, USB 3.0, Wi-Fi Protected Setup, IEEE 802.11ac (draft) |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, EZmax Setup Wizard |
| OS Required | Microsoft Windows Vista / XP / 7, Windows 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.1 in |
| Depth | 3.4 in |
| Height | 0.7 in |
| Weight | 0.81 oz |
| Antenna | |
| Antenna | External integrated and internal |
| Antenna Qty | 2 |
