Network adapter - USB 3.0 - 802.11a, 802.11b/g/n, Wi-Fi 5
| Main Specifications | |
|---|---|

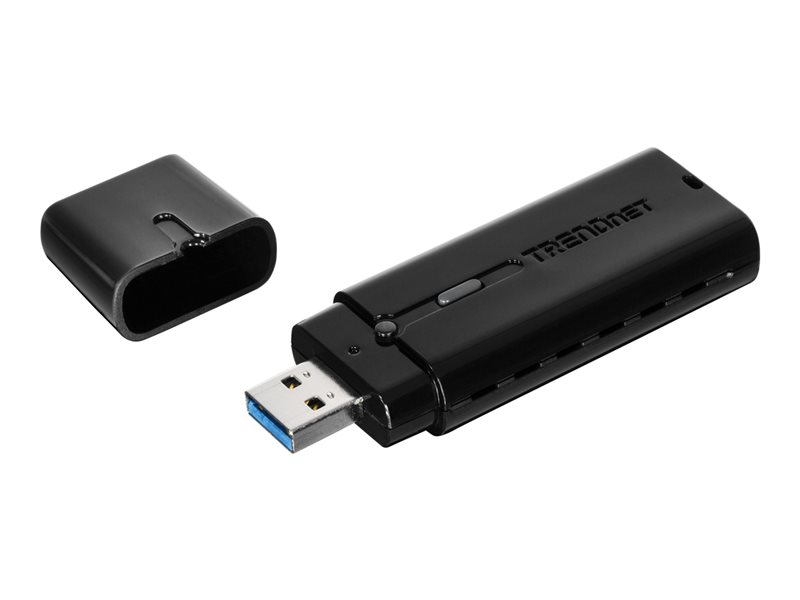

| Product Description | TRENDnet TEW-805UB - network adapter - USB 3.0 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Dimensions (WxDxH) | 3.1 in x 1.1 in x 0.5 in |
| Weight | 0.71 oz |
| Data Link Protocol | 802.11a, 802.11b/g/n, Wi-Fi 5 |
| Data Transfer Rate | 867 Mbps |
| Network / Transport Protocol | CSMA/CA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, USB 1.1, USB 2.0, IEEE 802.11n, USB 3.0, IEEE 802.11ac (draft 2.0) |
| System Requirements | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Expansion / Connectivity | |
| Connections | 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA2-PSK |
| Compliant Standards | ETSI, FCC |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Data Transfer Rate | 867 Mbps |
| Network / Transport Protocol | CSMA/CA |
| Line Coding Format | 128 QAM, DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Range Indoors | 328 ft |
| Max Range Open Space | 984 ft |
| Status Indicators | Status |
| Features | MIMO technology, WPS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, USB 1.1, USB 2.0, IEEE 802.11n, USB 3.0, IEEE 802.11ac (draft 2.0) |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 1.1 in |
| Height | 0.5 in |
| Weight | 0.71 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
