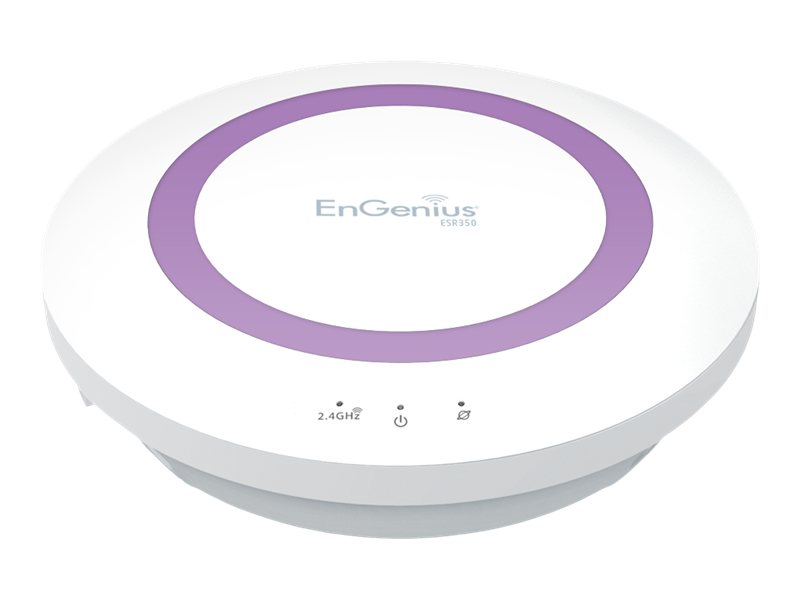

Wireless router 4-port switch - 1GbE 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | EnGenius ESR350 - wireless router - Wi-Fi - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Capacity | VPN tunnels: 5 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DDNS |
| Routing Protocol | Static IP routing |
| Features | DMZ port, NAT support, SPI, MAC address filtering, IPv6 support, VPN passthrough, WDS support, parental control, IP address filtering, Access Point operational mode, DDos attack prevention, WMM support, QoS, iTunes server, WPS, DHCP server, Samba support, Multiple SSID support, hidden SSID, port forwarding, reset button, port triggering, DHCP client, VPN Server |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n |
| Dimensions (WxDxH) | 6.4 in x 6.4 in x 1.6 in |
| Weight | 8.01 oz |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Capacity | VPN tunnels: 5 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DDNS |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | AES, TKIP, WPA-PSK, WPA2-PSK, WEP |
| Features | DMZ port, NAT support, SPI, MAC address filtering, IPv6 support, VPN passthrough, WDS support, parental control, IP address filtering, Access Point operational mode, DDos attack prevention, WMM support, QoS, iTunes server, WPS, DHCP server, Samba support, Multiple SSID support, hidden SSID, port forwarding, reset button, port triggering, DHCP client, VPN Server |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IC, FCC |
| Status Indicators | Power, WLAN, WAN |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.4 in |
| Depth | 6.4 in |
| Height | 1.6 in |
| Weight | 8.01 oz |
| Antenna | |
| Antenna | Internal |
