Powerline adapter HomePlug AV (HPAV), IEEE 1901
| Main Specifications | |
|---|---|

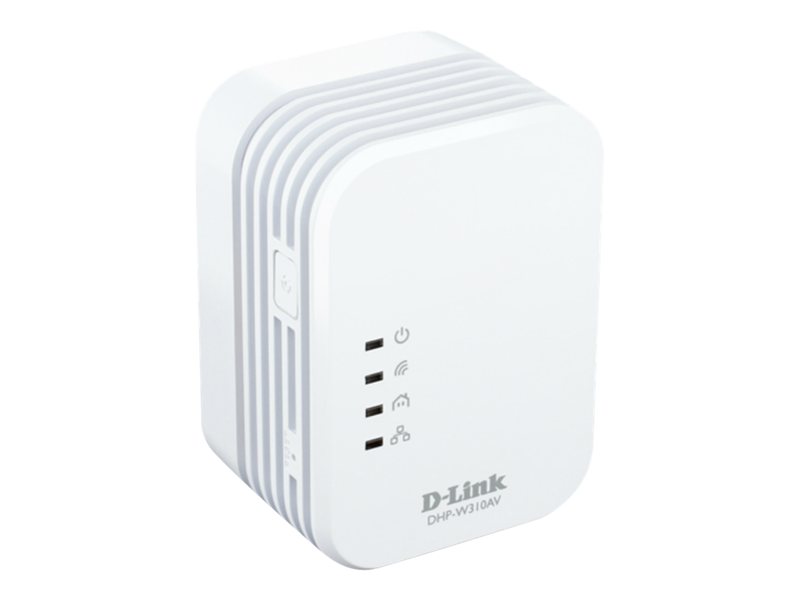

| Product Description | D-Link PowerLine DHP-W310AV - powerline adapter - Wi-Fi - desktop |
| Device Type | Powerline adapter |
| Enclosure Type | Desktop |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), IEEE 1901 |
| Data Transfer Rate | 500 Mbps |
| Features | 128-bit encryption, 64-bit encryption, auto-uplink (auto MDI/MDI-X), IPv6 support, QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV, IEEE 1901 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 3.5 in x 2.6 in x 2 in |
| System Requirements | Microsoft Windows Vista / XP / 7 |
| General | |
| Device Type | Powerline adapter |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), IEEE 1901 |
| Data Transfer Rate | 500 Mbps |
| Encryption Algorithm | WPA, WPA2, 128-bit AES |
| Features | 128-bit encryption, 64-bit encryption, auto-uplink (auto MDI/MDI-X), IPv6 support, QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV, IEEE 1901, UL, FCC, RoHS, LVD |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 1 x HomePlug AV ¦ 1 x 10Base-T/100Base-TX - RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / XP / 7 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 2.6 in |
| Height | 2 in |
| Line Properties | |
| Line Coding Format | OFDM |
