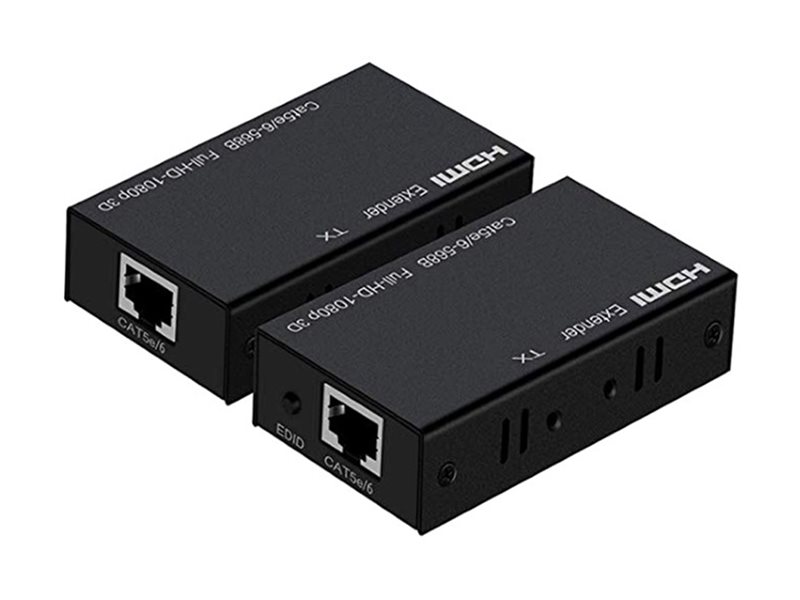

Video/audio/infrared extender - HDMI - up to 164 ft - for P/N: 4XHDMI4K2KPRO100
| Main Specifications | |
|---|---|
| Product Description | 4XEM 1080p HDMI Extender - video/audio/infrared extender - HDMI |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Max Transfer Distance | 164 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 1.8 in x 3.2 in x 0.8 in |
| Weight | 7.76 oz |
| Designed For | P/N: 4XHDMI4K2KPRO100 |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) female ¦ 1 x IrDA - mini jack female |
| Miscellaneous | |
| Compliant Standards | CEC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 1920 x 1200 / 1080p |
| Max Transfer Distance | 164 ft |
| Features | HDCP compliant |
| Compliant Standards | HDCP 1.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.2 in |
| Height | 0.8 in |
| Weight | 7.76 oz |
| Compatibility Information | |
| Designed For | P/N: 4XHDMI4K2KPRO100 |
