Wireless router 8-port switch 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | D-Link Unified Services Router DSR-150N - wireless router - Wi-Fi - desktop |
| Device Type | Wireless router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Performance | Firewall throughput: 95 Mbps ¦ VPN throughput: 85 Mbps |
| Capacity | Concurrent sessions: 20000 ¦ Firewall policies: 200 ¦ New sessions per second: 200 ¦ VPN tunnels: 26 ¦ IPSec VPN tunnels: 10 ¦ SSL VPN tunnels: 1 ¦ GRE tunnels: 5 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Features | Firewall protection, DMZ port, DHCP support, NAT support, VPN support, PAT support, VLAN support, content filtering, IPv6 support, IPS, URL filtering, firmware upgradable, IPSec VPN, WPA2 encryption, QoS, DPD, IPSec NAT-T, WPS, DHCP server, Multiple SSID support, bandwidth control, D-Link Green Technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | AC 100/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.2 in x 4.6 in x 1.4 in |
| General | |
| Device Type | Wireless router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Performance | Firewall throughput: 95 Mbps ¦ VPN throughput: 85 Mbps |
| Capacity | Concurrent sessions: 20000 ¦ Firewall policies: 200 ¦ New sessions per second: 200 ¦ VPN tunnels: 26 ¦ IPSec VPN tunnels: 10 ¦ SSL VPN tunnels: 1 ¦ GRE tunnels: 5 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm | DES, Triple DES, Blowfish, Twofish, MD5, AES, SSL, TLS, SHA-1, PEAP, TTLS, CAST-128, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method | RADIUS |
| Features | Firewall protection, DMZ port, DHCP support, NAT support, VPN support, PAT support, VLAN support, content filtering, IPv6 support, IPS, URL filtering, firmware upgradable, IPSec VPN, WPA2 encryption, QoS, DPD, IPSec NAT-T, WPS, DHCP server, Multiple SSID support, bandwidth control, D-Link Green Technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, FCC Class B certified, VCCI, C-Tick, cUL, RoHS, EN 60950-1, WEEE |
| Status Indicators | Port status, link/activity |
| Expansion / Connectivity | |

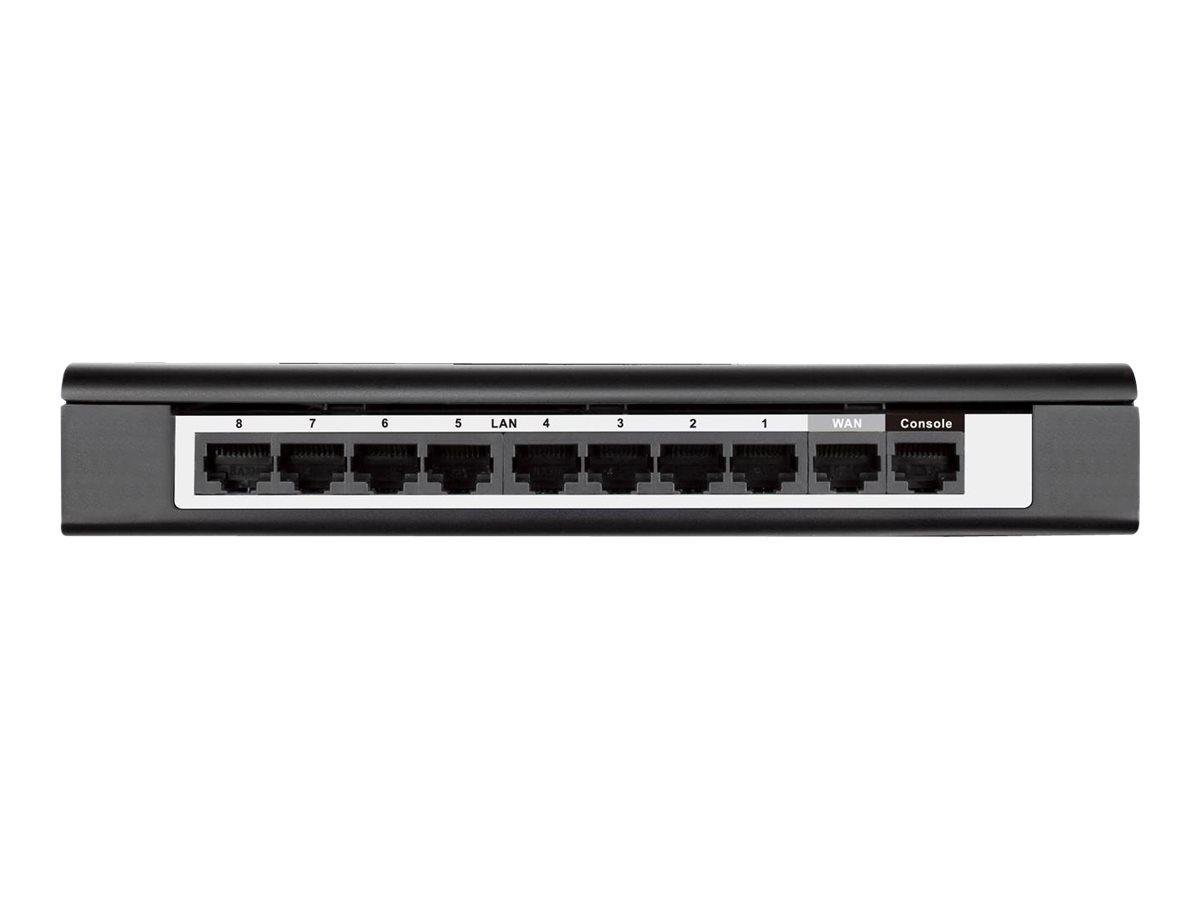

| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ LAN: 8 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Miscellaneous | |
| MTBF | 240,000 hours |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100/230 V (50/60 Hz) |
| Power Consumption Operational | 10.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.2 in |
| Depth | 4.6 in |
| Height | 1.4 in |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
