Hard drive array - 16 bays (SATA-600 / SAS-2) - SAS 6Gb/s (external) - rack-mountable - 3U
| Main Specifications | |
|---|---|

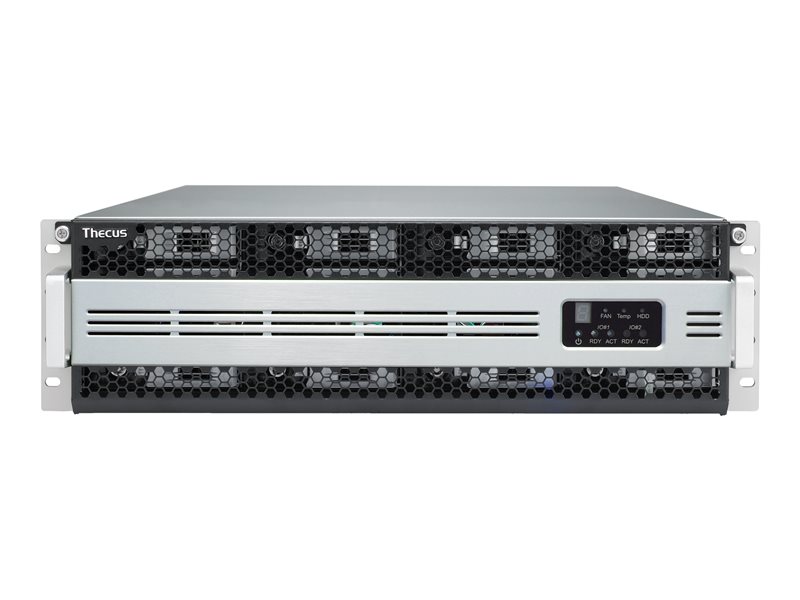

| Product Description | Thecus Technology D16000 - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Interface | SAS 6Gb/s |
| Installed Devices / Modules Qty | 16 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID JBOD |
| Hard Drive | No HDD |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 18.9 in x 20.4 in x 5.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Storage | |
| HDD Array External Interface | SAS 6Gb/s |
| Power | |
| Power Device | 2 x internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 500 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Max Storage Devices Qty | 16 |
| RAID Level | JBOD |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 18.9 in |
| Depth | 20.4 in |
| Height | 5.1 in |
| Chassis | |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-2 |
