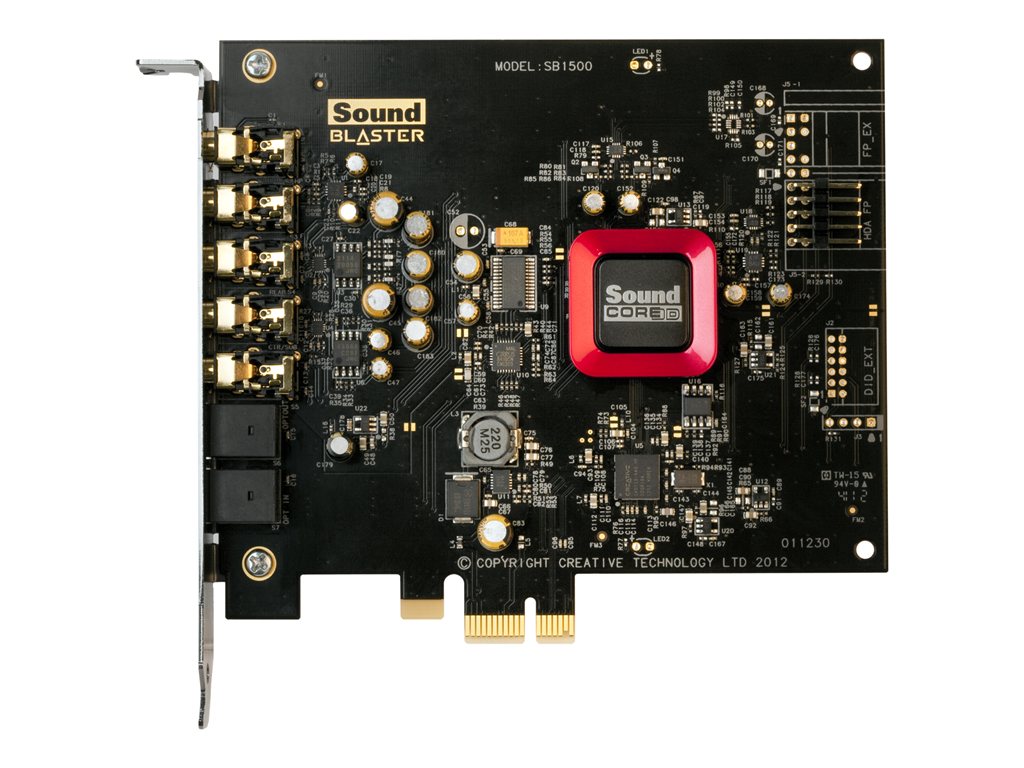

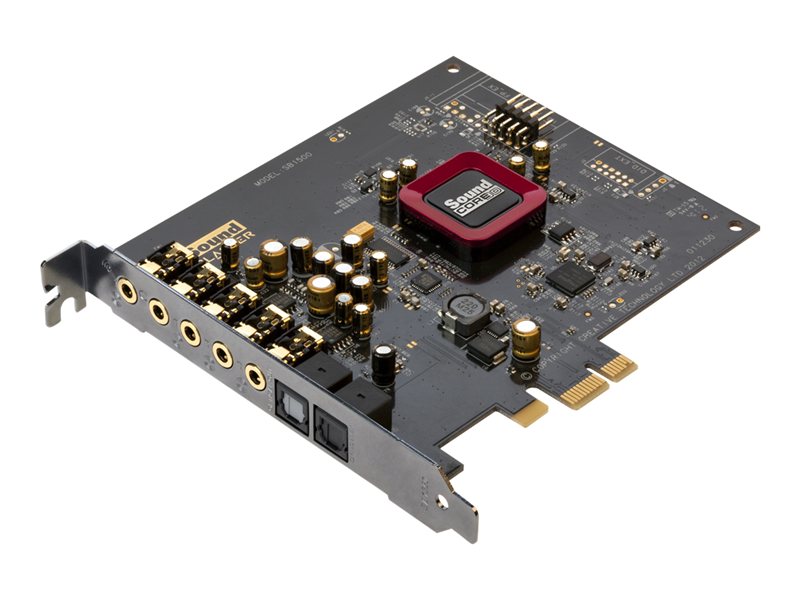

Sound card - 24-bit - 192 kHz - 116 dB SNR - 5.1 - PCIe
| Main Specifications | |
|---|---|
| Product Description | Creative Sound Blaster Z - sound card - PCI Express |
| Device Type | Sound card |
| Enclosure Type | Internal |
| Interface Type | PCI Express |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 192 kHz (max) |
| Signal-To-Noise Ratio | 116 dB |
| Microsoft Certification | Compatible with Windows 7 |
| Package Type | Bulk |
| System Requirements | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits) |
| General | |
| Device Type | Sound card |
| Form Factor | Internal |
| Interface Type | PCI Express |
| Expansion / Connectivity | |
| Interfaces | 1 x audio line-in/microphone - mini-phone stereo 3.5 mm ¦ 1 x headphones - mini-phone stereo 3.5 mm ¦ 1 x SPDIF input - TOSLINK ¦ 1 x SPDIF output - TOSLINK ¦ 3 x audio line-out - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Cables Included | 1 x audio (optical) cable ¦ 1 x audio cable |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Package Type | Bulk |
| Software / System Requirements | |
| Software | Drivers & Utilities, Creative Diagnostics, Creative ALchemy, Dolby Digital Live! realtime encoding |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits) |
| System Requirements Details | 2.2 GHz - RAM 1 GB - HD 600 MB |
| Audio Output | |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 192 kHz (max) |
| Signal-To-Noise Ratio | 116 dB |
| Frequency Response | 10 - 45000 Hz |
| Compliant Standards | Dolby Digital Live |
| Audio Modes | Playback: 24-bit 192 kHz |
