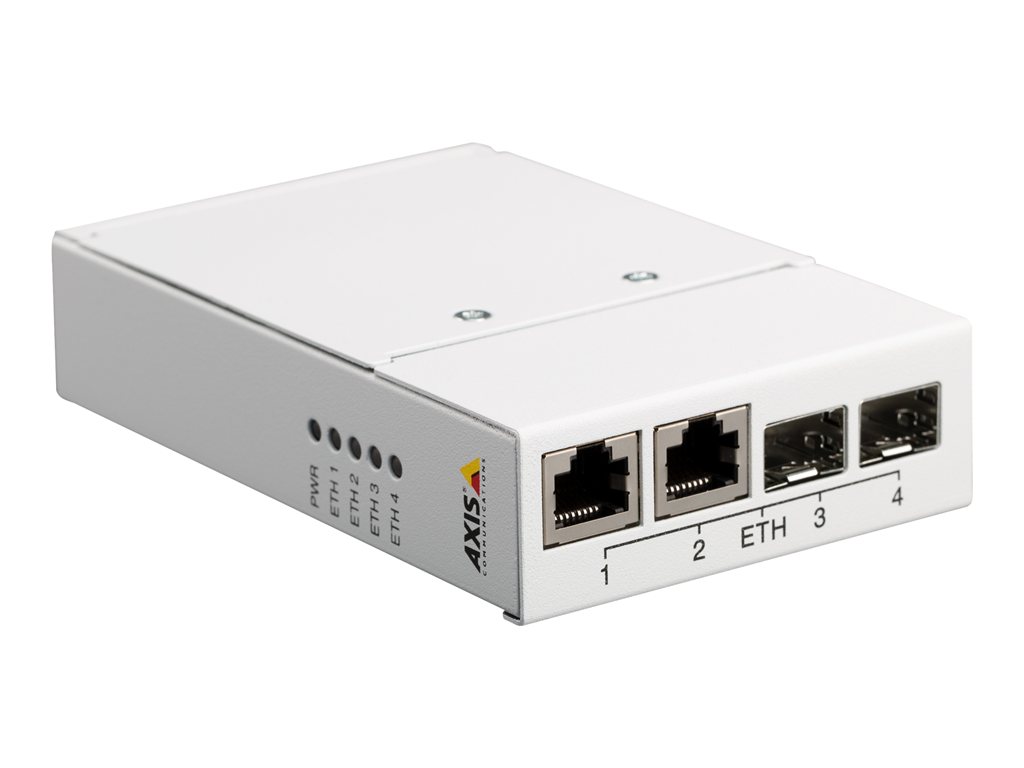

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-X, 100Base-X - 2 ports - RJ-45 / SFP (mini-GBIC) - for AXIS P1385-E, P1455-LE, P1455-LE-3, P3818-PVE, Q1942-E, Q3538-SLVE
| Main Specifications | |
|---|---|
| Product Description | AXIS T8604 Media Converter Switch - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Ports Qty | 2 |
| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Dimensions (WxDxH) | 3.9 in x 5.9 in x 1.2 in |
| Weight | 10.02 oz |
| Manufacturer Warranty | 3-year warranty |
| Designed For | AXIS P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P3818-PVE, Q1942-E PT Mount, Q3538-SLVE |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Color | White |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 2 x Ethernet 100Base-X/1000Base-X - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | C-Tick, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, RoHS, IEC 60950-1, EN 60950-1, WEEE, REACH, FCC Part 15 B Class A, KCC Class A |
| Networking | |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Status Indicators | Port status, power |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 5.9 in |
| Height | 1.2 in |
| Weight | 10.02 oz |
| Compatibility Information | |
| Designed For | AXIS P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P3818-PVE, Q1942-E PT Mount, Q3538-SLVE |
