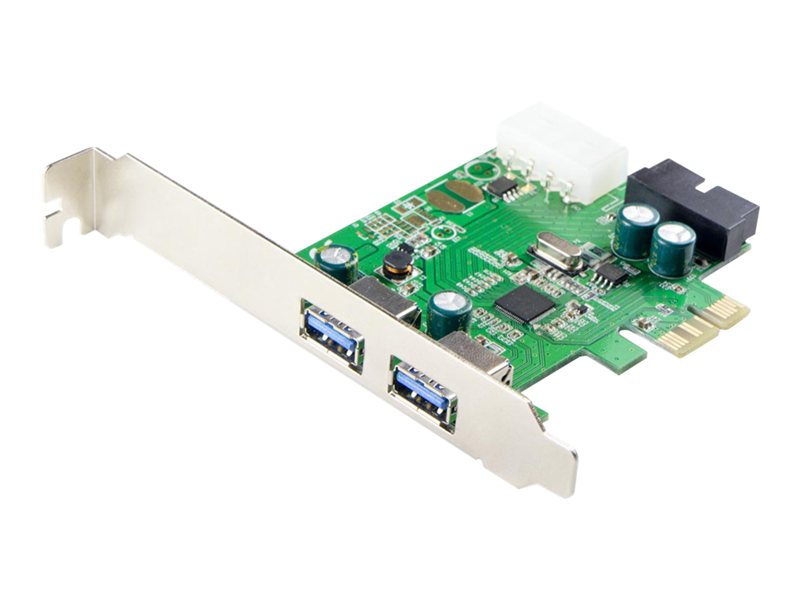

USB adapter - PCIe 2.0 - USB, USB 2.0, USB 3.0
| Main Specifications | |
|---|---|
| Product Description | Syba SD-PEX20139 - USB adapter - PCIe 2.0 |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Data Link Protocol | USB, USB 2.0, USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Processor | Renesas |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| System Requirements | Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.0 - 9 pin USB Type A (external) ¦ 1 x USB 3.0 - 20 pin USB 3.0 header (internal) |
| Compatible Slots | 1 x PCI Express 2.0 x1 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | WHQL, FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 |
| Processor / Memory | |
| Processor | Renesas |
