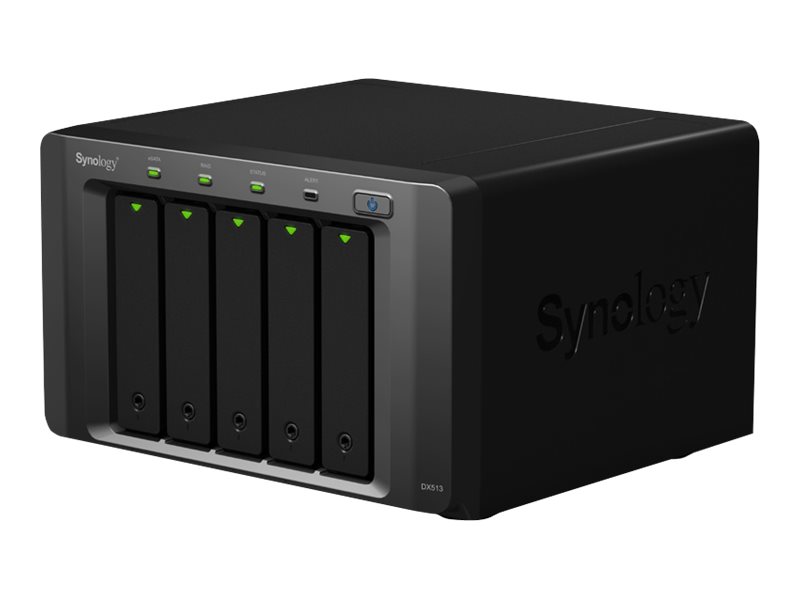

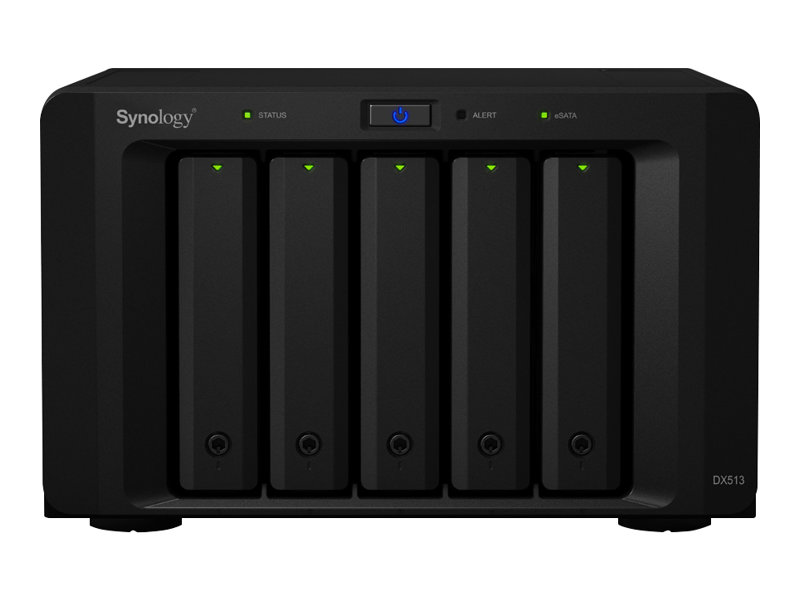

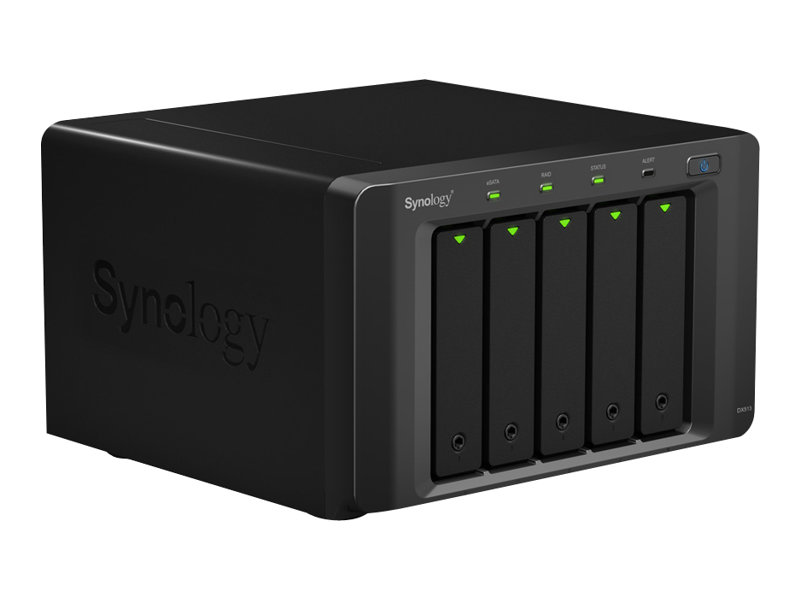

Storage enclosure - 5 bays - HDD 0 - TAA Compliant - for Disk Station DS1010+, DS1511+, DS1512+, DS1812+, DS710+, DS712+
| Main Specifications | |
|---|---|
| Product Description | Synology DX513 - storage enclosure - TAA Compliant |
| Device Type | Storage enclosure |
| Max Supported Capacity | 60 TB |
| Installed Devices / Modules Qty | 0 (installed) / 5 (max) |
| Hard Drive | 0 HDD - hot-swap |
| Power | AC 120/230 V - 50 - 60 Hz |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 9.8 in x 9.2 in x 6.2 in |
| Weight | 8.62 lbs |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Disk Station DS1010+, DS1511+, DS1512+, DS1812+, DS710+, DS712+ |
| General | |
| Device Type | Storage enclosure |
| Expansion / Connectivity | |
| Expansion Bays | 5 (total) / 5 (free) x hot-swap - 2.5" / 3.5" shared |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

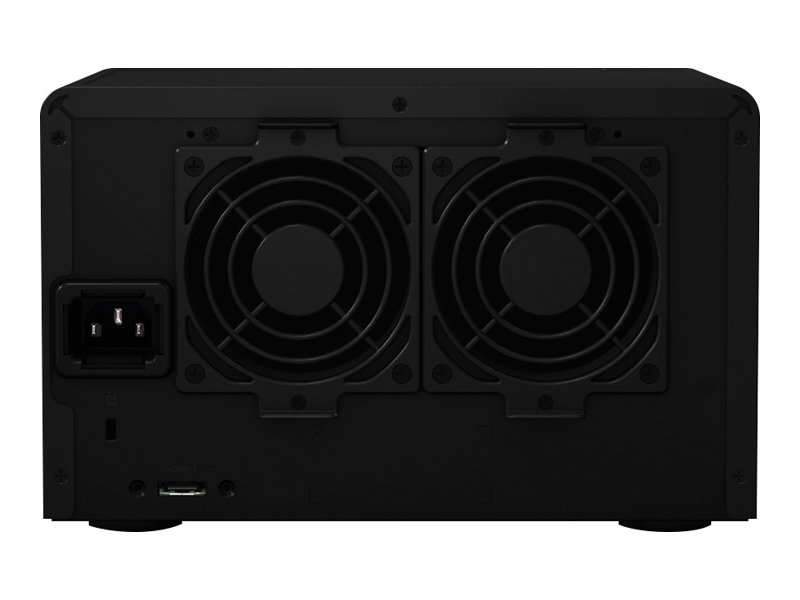

| Features | Built-in 2 cooling fans |
| Cables Included | 1 x data cable |
| Compliant Standards | FCC Class B certified, RoHS, BSMI Class B |
| TAA Compliant | Yes |
| Processor | |
| CPU | No CPU |
| Storage | |
| Max Supported Capacity | 60 TB |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V - 50 - 60 Hz |
| Power Consumption Operational | 45.1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 30 dBA |
| Storage Controller | |
| Type | Integrated |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 0 |
| Dimensions & Weight | |
| Width | 9.8 in |
| Depth | 9.2 in |
| Height | 6.2 in |
| Weight | 8.62 lbs |
| Compatibility Information | |
| Designed For | Synology Disk Station DS1010+, DS1511+, DS1512+, DS1812+, DS710+, DS712+ |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 5 |
