Switch - managed - 24 x 10 Gigabit SFP+ - rack-mountable
| Main Specifications | |
|---|---|

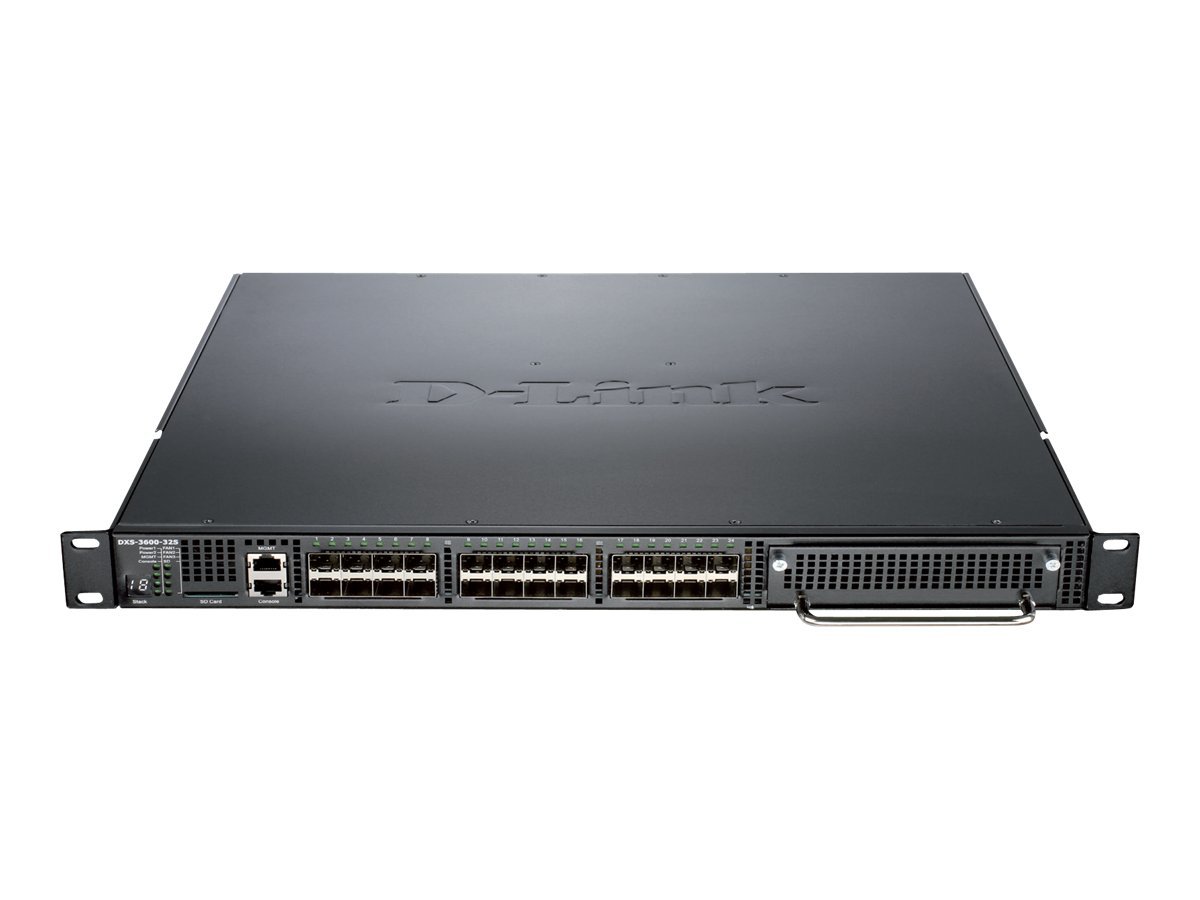

| Product Description | D-Link DXS-3600 - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 960 Gbps |
| Capacity | IGMP groups: 4000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP, RMON, Telnet, HTTP, SSH, CLI |
| Features | Flow control, DoS attack prevention, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, ACL support, QoS, Safeguard Engine, LLDP support, Port Security, DCB |
| Compliant Standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 19.9 in x 1.7 in |
| Weight | 21.61 lbs |
| General | |
| Device Type | Switch - 24 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 960 Gbps |
| Capacity | IGMP groups: 4000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 12KB |
| Max Units In A Stack | 4 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP, RMON, Telnet, HTTP, SSH, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, DoS attack prevention, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, ACL support, QoS, Safeguard Engine, LLDP support, Port Security, DCB |
| Compliant Standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Status Indicators | Port transmission speed, power, link/activity, fan, console |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Gb Ethernet - RJ-45 ¦ 1 x management RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x SD Memory Card |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, cUL, CB, IC, FCC, LVD |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Standard Image (SI) Software |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 19.9 in |
| Height | 1.7 in |
| Weight | 21.61 lbs |
