Wireless router
| Main Specifications | |
|---|---|

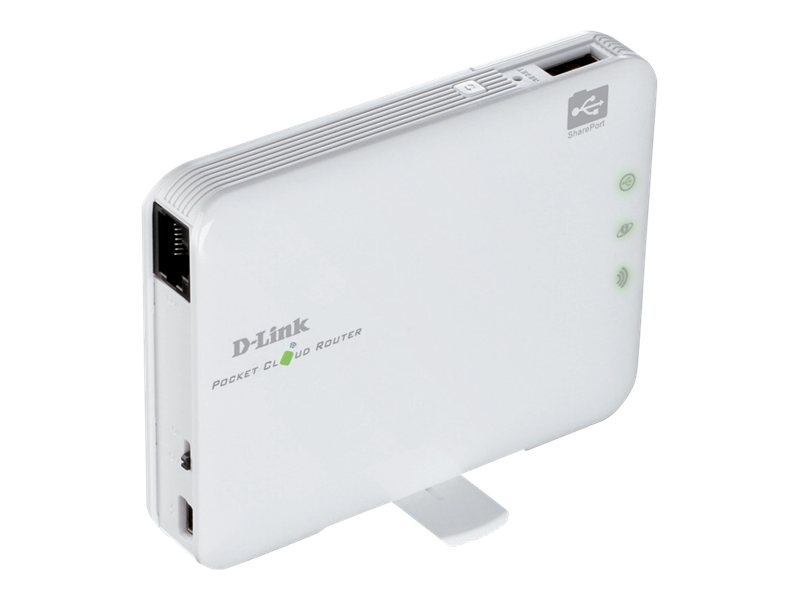

| Product Description | D-Link DIR-506L - wireless router - Wi-Fi - desktop |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 150 Mbps |
| Features | NAT support, SPI, USB powered, QoS, DLNA Media Server, SharePort Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Dimensions (WxDxH) | 2.7 in x 1.7 in x 2 in |
| Weight | 4 oz |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 150 Mbps |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Features | NAT support, SPI, USB powered, QoS, DLNA Media Server, SharePort Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IC, FCC |
| Status Indicators | Power, status, LAN, wireless, WPS |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 1.7 in |
| Height | 2 in |
| Weight | 4 oz |
| Antenna | |
| Antenna | Internal |
