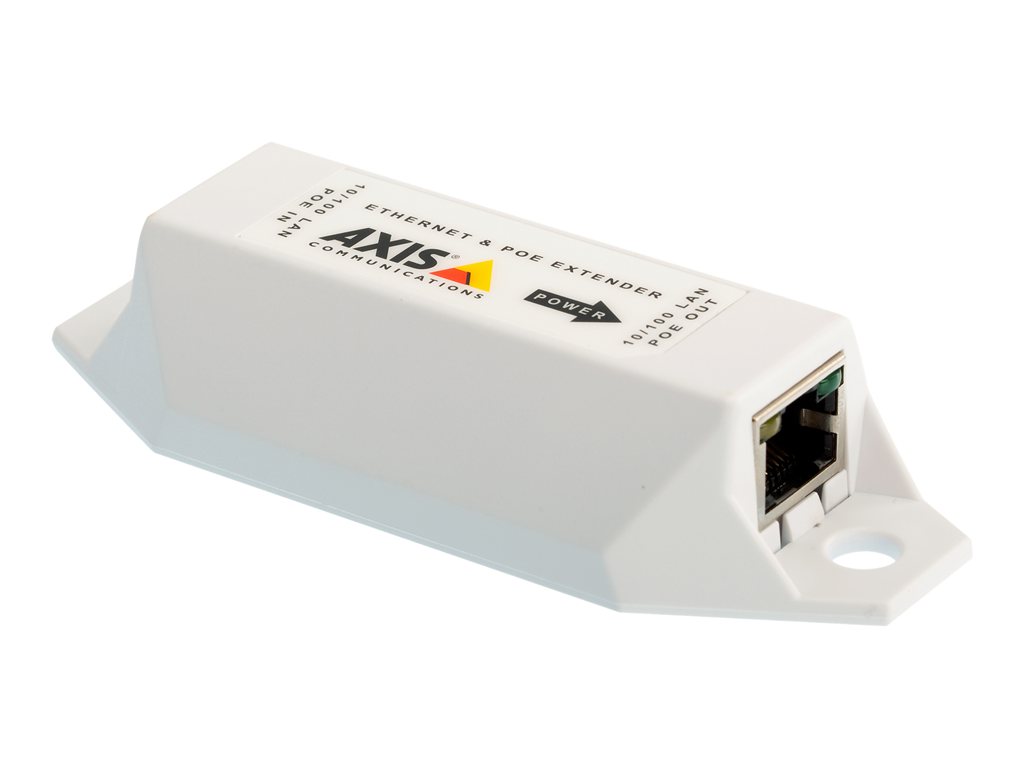

Repeater - 100Mb LAN - 10Base-T, 100Base-TX - RJ-45 / RJ-45 - up to 328 ft - for AXIS C1410, D3110, M3085, M3086, M4215, M4328, P1385, Q1715, Q1942, W400; M42 Series
| Main Specifications | |
|---|---|
| Product Description | AXIS T8129 PoE Extender - repeater - 10Mb LAN, 100Mb LAN |
| Device Type | Repeater - RJ-45 / RJ-45 |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 4.1 in x 1.6 in x 0.9 in |
| Weight | 1.59 oz |
| Designed For | AXIS AXIS P3245-LVE-3, C1410, D3110, M3067-P, M3068-P, M3085-V, M3086-V, M4215-V, M4308-PLE, M4328-P, M5075-G, P1385-E, P1455-LE, P1455-LE-3, Q1656, Q1656-B, Q1715, Q1942-E, Q1951-E, Q1952-E, Q6100-E 50, Q6315-LE 50, Q6315-LE 60, W400; M42 Series; Q60 Series |
| General | |
| Device Type | Repeater |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Miscellaneous | |
| Compliant Standards | Plug and Play, EN55024, EN55022 Class B, FCC Part 15 B, FCC, RoHS, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 328 ft |
| Status Indicators | PoE, link/activity |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 1.6 in |
| Height | 0.9 in |
| Weight | 1.59 oz |
| Compatibility Information | |
| Designed For | AXIS AXIS P3245-LVE-3 License Plate Verifier Kit, C1410, D3110, M3067-P, M3068-P, M3085-V, M3086-V, M4215-V, M4308-PLE, M4328-P, M5075-G, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q1656, Q1656-B, Q1715, Q1942-E PT Mount, Q1951-E, Q1952-E, Q6100-E 50 Hz, Q6315-LE 50 Hz, Q6315-LE 60 Hz, W400 ¦ AXIS M42 Series M4215-LV, M4218-LV ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz |
