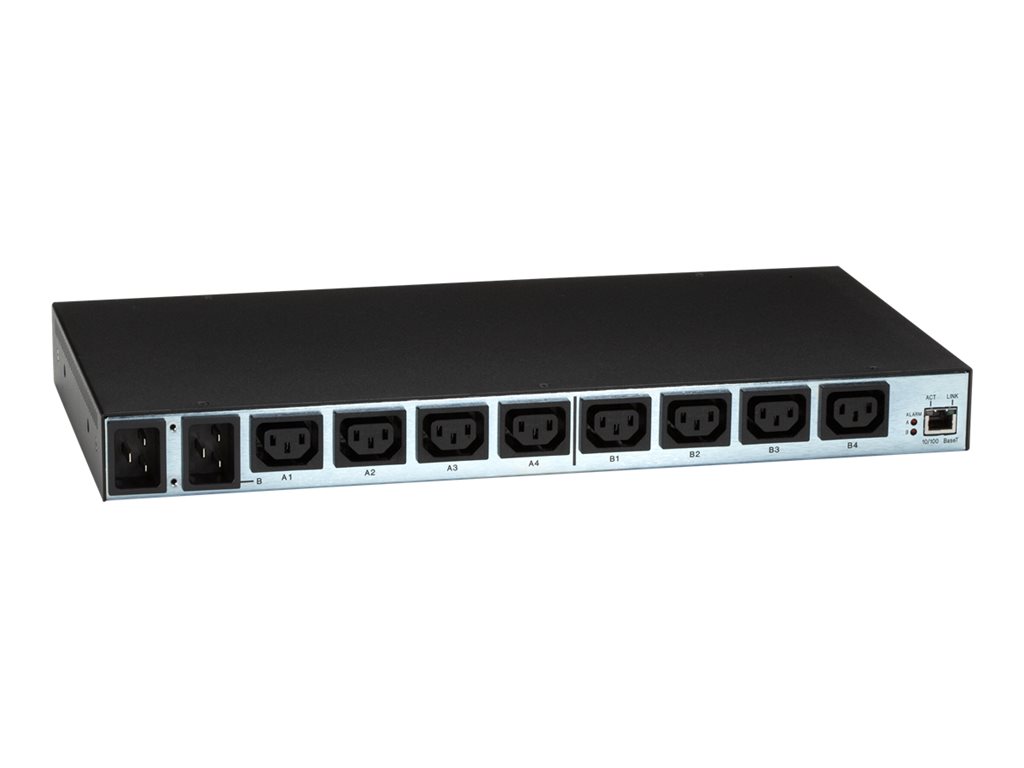

Power control unit (rack-mountable) - AC 230 V - Ethernet, RS-232 - output connectors: 8 - 1U - 19"
| Main Specifications | |
|---|---|
| Product Description | Black Box Horizontal Rackmount Remote Power Manager - power control unit |
| Device Type | Power control unit - rack-mountable |
| Rack Size | 19" - 1U |
| Weight | 9.92 lbs |
| Input Voltage | AC 230 V |
| Output Voltage | 230 V |
| Input Connectors | 2 x power IEC 60320 C14 |
| Output connectors | 8 x power IEC 60320 C13 |
| Networking | Ethernet, RS-232 |
| Remote Management Protocol | Telnet, HTTP |
| Dimensions (WxDxH) | 19 in x 7 in x 1.7 in |
| General | |
| Device Type | Power control unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x modem - RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Features | System password, LED indicators, relay remote switch |
| Networking | |
| Remote Management Interface | Ethernet, RS-232 |
| Remote Management Protocol | Telnet, HTTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 230 V |
| Frequency Provided | 50 Hz |
| Frequency Required | 50 Hz |
| Input Connectors | 2 x power IEC 60320 C14 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | 230 V 50 Hz |
| Max Electric Current | 20 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 9.92 lbs |
