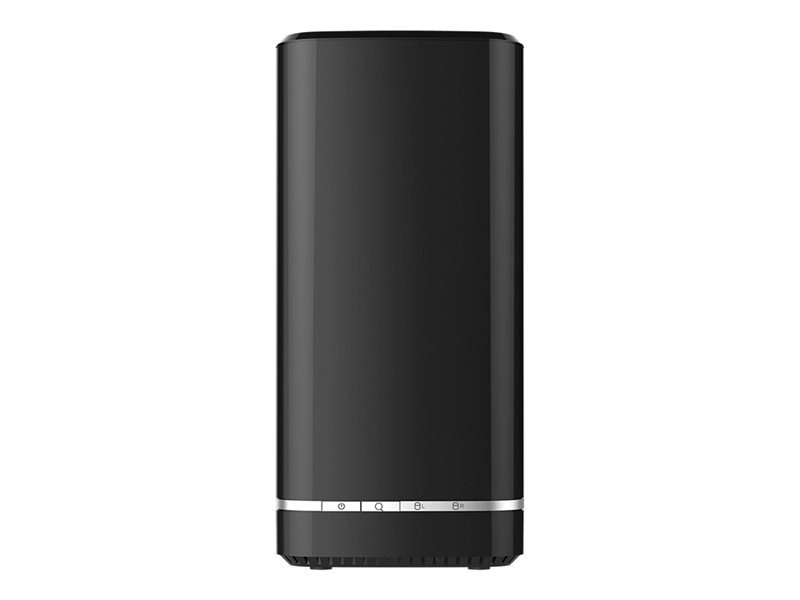

Standalone DVR - 9 channels - networked
| Main Specifications | |
|---|---|
| Product Description | D-Link DNR-322L Mydlink Network Video Recorder - standalone DVR - 9 channels |
| Device Type | Standalone DVR - 9 channels - networked |
| Compression Format | MJPEG, MPEG-4, H.264 |
| Hard Drive(s) Supported | Quantity: 2 |
| Dimensions (WxDxH) | 4.5 in x 5.7 in x 7 in |
| Weight | 1.98 lbs |
| General | |
| Device Type | Standalone DVR |
| Video Channels | 9 |
| Compression Format | MJPEG, MPEG-4, H.264 |
| Package Content | Manual, DVR, external power adapter, software, cable holder |
| Cables Included | Network cable - 1 pcs. |
| Compliant Standards | FCC, RoHS |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, DNS, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, UPnP, IPv4, PPPoE |
| Features | ARP support, auto-uplink (auto MDI/MDI-X), IP address filtering, reset button, IPv4 support, DHCP client |
| Power | |
| Power Consumption | 25.2 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Hard Drive | |
| Quantity Supported | 2 |
| Interface | Serial ATA |
| Connections | |
| Network Port | 10/100/1000Base-T |
| Other Ports | USB x 1 |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 5.7 in |
| Height | 7 in |
| Weight | 1.98 lbs |
| Security DVR | |
| Networked | Yes |
| Features | RAID 0 support, RAID 1 support, RAID JBOD support, security lock slot (cable lock sold separately) |
| Video Server | |
| RAM | 256 MB |
| ROM | 128 MB |
| Features | PTZ support |
