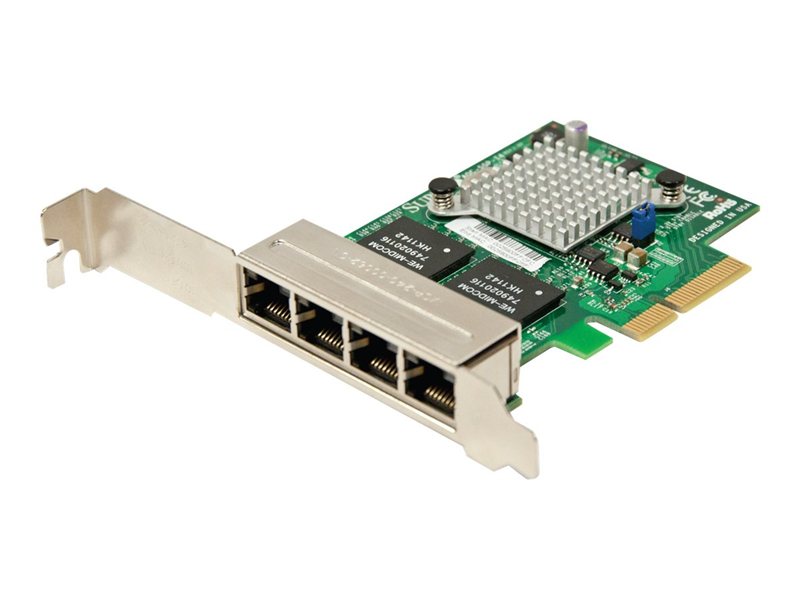

Network adapter - PCIe 2.1 x4 low profile - Gigabit Ethernet x 4 - for SuperServer 6016T-NTRF4+, 6017R-WRF
| Main Specifications | |
|---|---|
| Product Description | Supermicro AOC-SGP-i4 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| Ports | Gigabit Ethernet x 4 |
| Dimensions (WxDxH) | 2.5 in x 3.9 in x 2.5 in |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Processor | 1 x Intel I350 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1as, IEEE 802.3az |
| System Requirements | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.1, VMware ESX 4.0, Citrix XenServer, VMware ESX 5.0 |
| Manufacturer Warranty | 3-year warranty |
| Designed For | SuperServer 6016T-NTRF4+, 6017R-WRF |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 |
| Compatible Slots | 1 x PCI Express 2.1 x4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Ports | Gigabit Ethernet x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Features | Flow control, scalable clustering, auto-negotiation, auto-uplink (auto MDI/MDI-X), automatic topology detection, IPv6 support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), QoS, Intel I/OAT, Jumbo Frames support, VMDq, PXE support, RSS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Power Consumption Operational | 5 watt |
| Software / System Requirements | |
| OS Required | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.1, VMware ESX 4.0, Citrix XenServer, VMware ESX 5.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory | |
| Processor | 1 x Intel I350 |
| Dimensions & Weight | |
| Width | 2.5 in |
| Depth | 3.9 in |
| Height | 2.5 in |
| Compatibility Information | |
| Designed For | Supermicro SuperServer 6016T-NTRF4+, 6017R-WRF |
