Wireless access point - Wi-Fi - 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | D-Link Wireless N Unified Access Point DWL-3600AP - wireless access point - Wi-Fi |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 8 in x 8 in x 1.9 in |
| Weight | 1.41 lbs |
| General | |
| Device Type | Wireless access point |
| Width | 8 in |
| Depth | 8 in |
| Height | 1.9 in |
| Weight | 1.41 lbs |
| Expansion / Connectivity | |

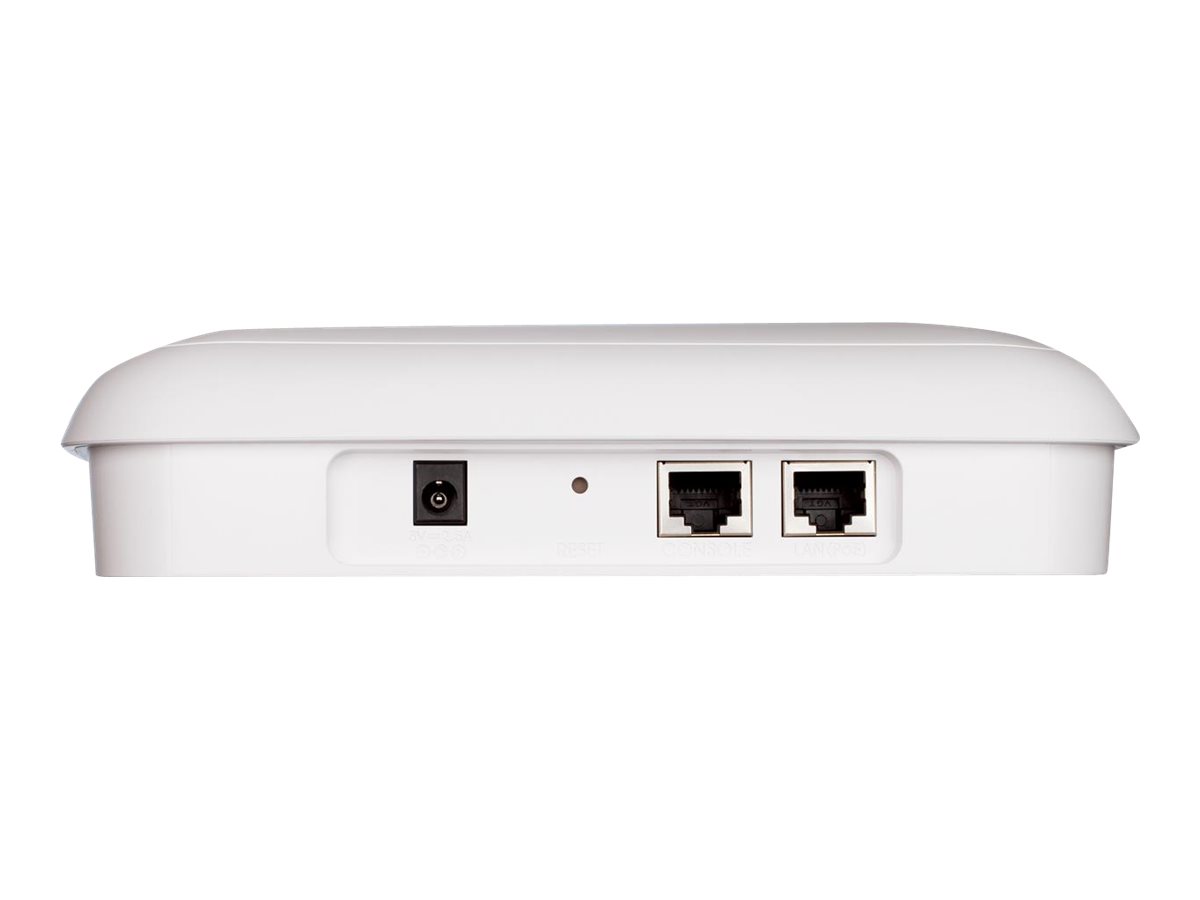

| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
| Frequency Band | 2.4 GHz |
| Status Indicators | Power, WLAN, LAN |
| Features | 128-bit encryption, 64-bit encryption, power over Ethernet (PoE), load balancing, VLAN support, MAC address filtering, Wireless Distribution System (WDS) support, MIMO technology, Wi-Fi Multimedia (WMM) support, SpectraLink Voice Priority (SVP) support, Quality of Service (QoS), Multiple SSID support, rogue access point detection |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 1 |
| Directivity | Omni-directional |
| Gain Level | 4.7 dBi |
