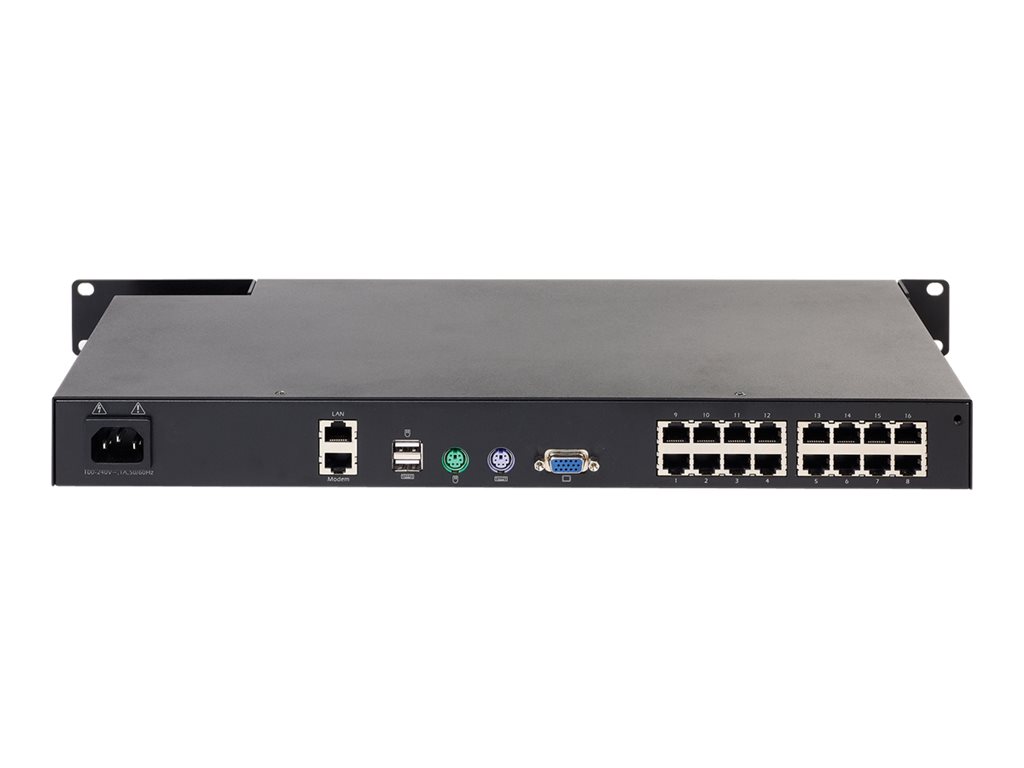

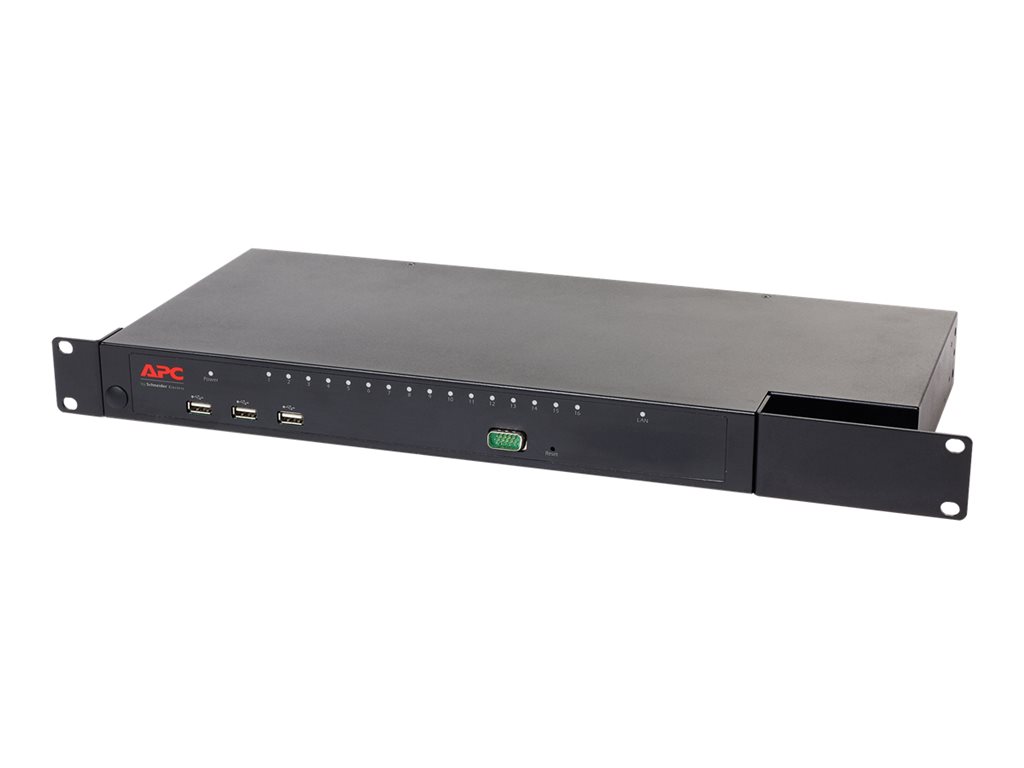

KVM switch - CAT5 - 16 x KVM port(s) - 1 local user - 1 IP user - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | APC KVM 2G Digital/IP - KVM switch - 16 ports - rack-mountable |
| Device Type | KVM switch - 16 ports - CAT5 - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Users Qty | 1 local user, 1 IP user |
| Features | Virtual Media support |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 16.7 in x 7.4 in x 1.7 in |
| Weight | 5.73 lbs |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM switch - 16 ports - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 1 IP user |
| Server Connection Via Twisted Pair | CAT5 |
| Local User Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | PS/2, USB |
| Features | Virtual Media support |
| Status Indicators | Port status, power, LAN |
| Expansion / Connectivity | |
| Interfaces | 16 x KVM RJ-45 ¦ 1 x serial (RS-232) DB-9 ¦ 1 x VGA HD-15 ¦ 1 x mouse (PS/2) ¦ 1 x keyboard (PS/2) ¦ 5 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Rack Mounting Kit | Included |
| Compliant Standards | C-Tick, GOST, cUL, ICES-003, VDE, VCCI Class A ITE, RoHS, UL 60950-1, FCC Part 15 A, UL-AR, REACH |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Storage | 5 - 95% |
| Dimensions & Weight | |
| Width | 16.7 in |
| Depth | 7.4 in |
| Height | 1.7 in |
| Weight | 5.73 lbs |
