Power control unit - 48 V - output connectors: 1
| Main Specifications | |
|---|---|

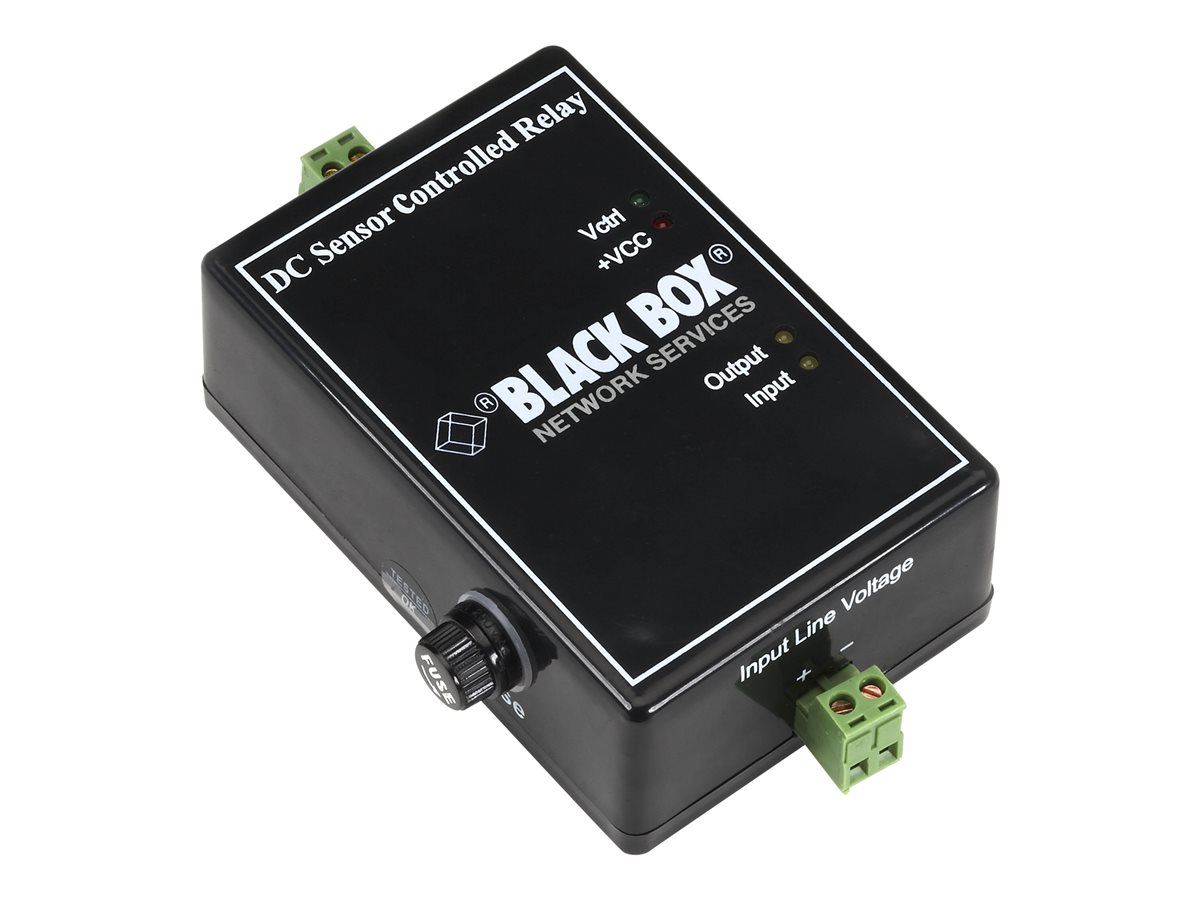

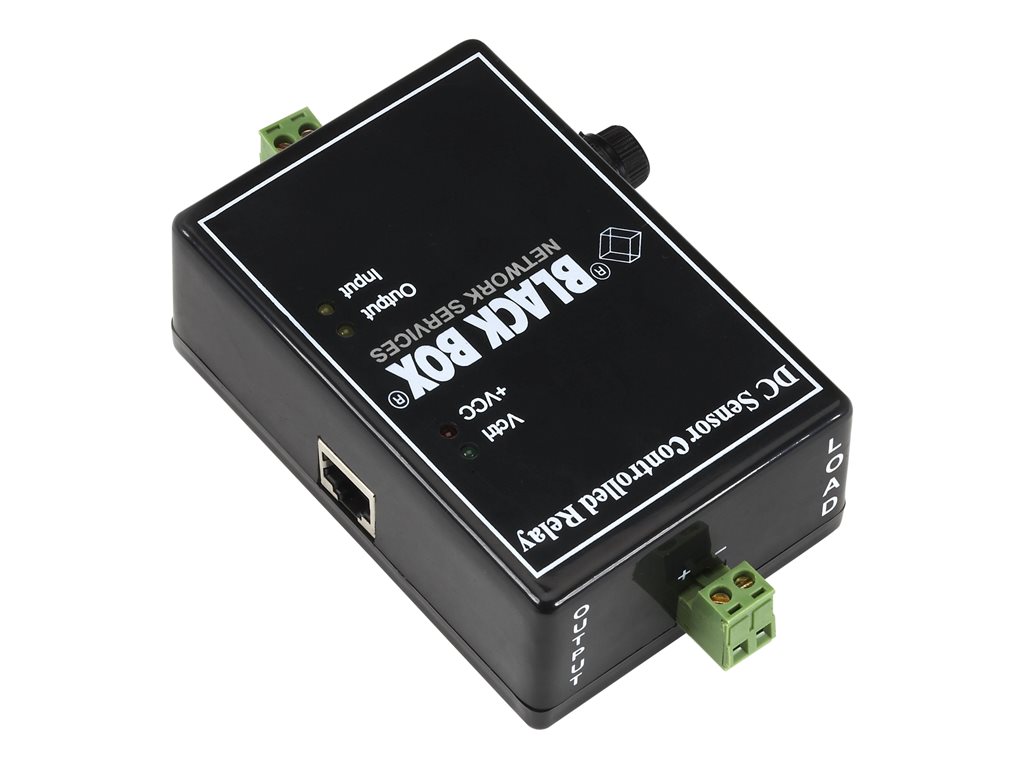

| Product Description | Black Box AlertWerks Power Switch - power control unit |
| Device Type | Power control unit - external |
| Weight | 8.82 oz |
| Input Voltage | 48 V |
| Output Voltage | 48 V |
| Input Connectors | 1 x 2 pin terminal block |
| Output connectors | 1 x 2 pin terminal block |
| Dimensions (WxDxH) | 4.5 in x 1.6 in x 3.1 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Power control unit - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | Network cable - external - 5 ft |
| Features | LED indicators |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Power Device | |
| Input Voltage | 48 V |
| Input Connectors | 1 x 2 pin terminal block |
| Power Output Connectors Details | 1 x 2 pin terminal block |
| Output Voltage | 48 V |
| Max Electric Current | 10 A |
| Circuit Protection | Fuse |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 1.6 in |
| Height | 3.1 in |
| Weight | 8.82 oz |
