Tower - ATX - windowed side panel - no power supply (ATX / PS/2) - black - USB/Audio
| Main Specifications | |
|---|---|

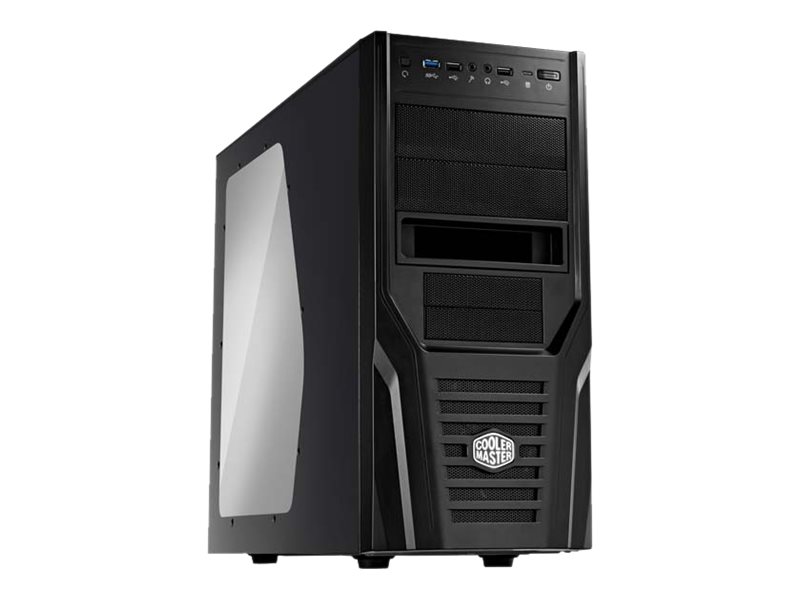

| Product Description | Cooler Master Elite 431 Plus - tower - ATX |
| Product Type | System cabinet |
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Color | Black |
| Built-in Devices | External SATA X-Dock |
| I/O Connectors | 2 x USB 2.0 ¦ 1 x SuperSpeed USB 3.0 ¦ 1 x microphone ¦ 1 x audio line-out |
| Supported Motherboards | ATX, microATX |
| Power Device | No power supply (ATX / PS/2) |
| Dimensions (WxDxH) | 7.6 in x 19.6 in x 16.8 in |
| Weight | 11.02 lbs |
| General | |
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX |
| Internal Bays Qty | 3 |
| Front Accessible Bays Qty | 3 |
| Built-in Devices | External SATA X-Dock |
| Color | Black |
| Cooling System | Front: 120 mm fan x 1 / blue LED ¦ Rear: 80/90/120 mm fan mount x 1 ¦ Bottom: 80/90/120 mm fan mount x 1 ¦ Top: 120 mm fan mount x 2 |
| Expansion / Connectivity | |
| Expansion Bays | 3 (total) / 3 (free) x front accessible - 5.25" x 1/2H ¦ 2 (total) / 2 (free) x front accessible - 3.5" x 1/3H ¦ 5 (total) / 5 (free) x internal - 3.5" x 1/3H |
| Expansion Slots | 7 x expansion slot |
| Interfaces | 2 x USB 2.0 ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type B ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX / PS/2 |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 19.6 in |
| Height | 16.8 in |
| Weight | 11.02 lbs |
