Server - blade 2-way - 1 x Opteron 6276 / up to 3.2 GHz - RAM 8 GB - SAS - hot-swap 2.5" bay(s) - no HDD - ATI ES1000 - 10 Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|

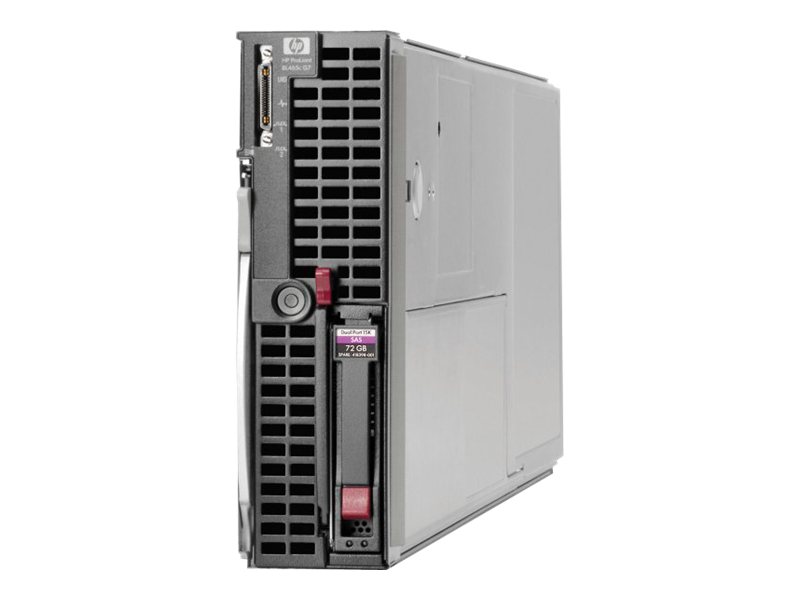

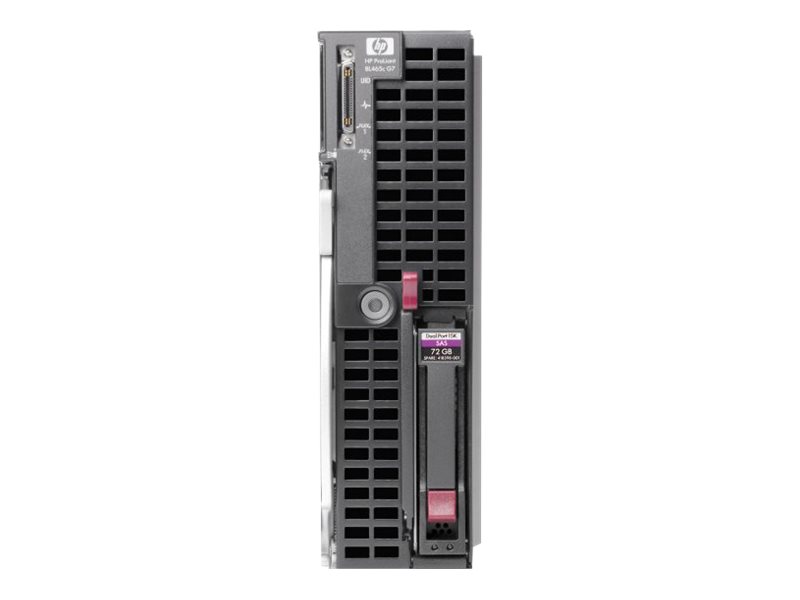

| Product Description | HPE ProLiant BL465c G7 - blade Opteron 6276 2.3 GHz - 8 GB - no HDD |
| Type | Server - blade - administrator password, power-on password, USB port control |
| Server Scalability | 2-way |
| Processor | 1 x AMD Opteron 6276 / 2.3 GHz (up to 3.2 GHz, (16-core) |
| Cache Memory | 16 MB L3 cache |
| Cache Per Processor | 16 MB |
| RAM | 8 GB (installed) / 256 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | SAS-2 (SATA 3Gb/s / SAS 6Gb/s) - PCIe 2.0 x4 (Smart Array P410i with 1GB FBWC) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ATI ES1000 |
| Networking | 10GbE |
| Dimensions (WxDxH) | 2.2 in x 20.1 in x 7.2 in |
| Weight | 9.81 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 16 (total) / 14 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU ¦ 2 (total) / 2 (free) x expansion slot (x8 mode) ¦ 1 (total) / 1 (free) x microSD Card |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, USB port control |
| Compliant Standards | ACPI 2.0, WEEE |
| RAM | |
| Installed Size | 8 GB (installed) / 256 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 16 (total) / 14 (empty) |
| Features | Registered |
| Configuration Features | 2 x 4 GB |
| RAM Supported | PC3-12800 - 256 GB registered ¦ PC3-8500 - 512 GB registered ¦ PC3-10600 - 64 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | HP NC551i |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 3 |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS-2 - PCIe 2.0 x4 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i with 1GB FBWC |
| RAID Level | RAID 0, RAID 1 |
| Buffer Size | 1 GB |
| Cache Memory | |
| Installed Size | L3 cache - 16 MB |
| Cache Per Processor | 16 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, VMware ESX |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 20.1 in |
| Height | 7.2 in |
| Weight | 9.81 lbs |
| Processor / Chipset | |
| CPU | AMD Opteron 6276 |
| Clock Speed | 2.3 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 16-core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | AMD SR5690/SP5100 |
