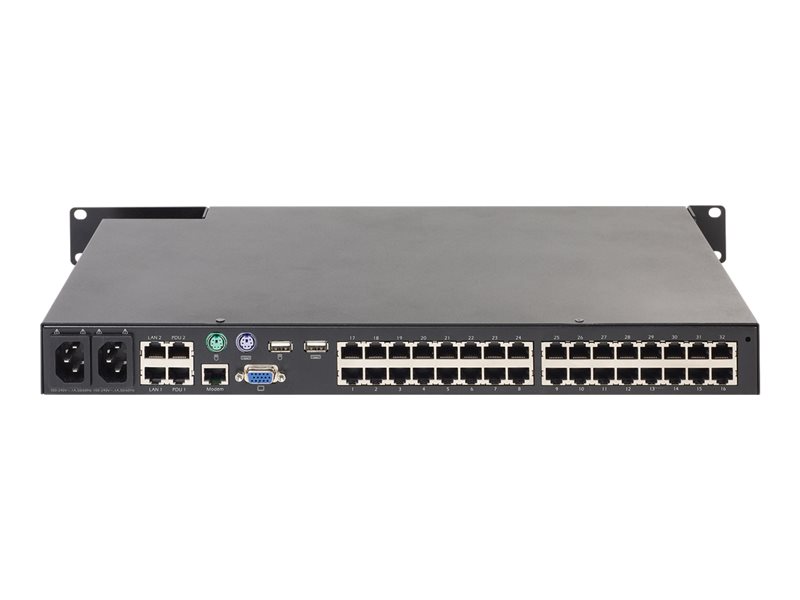

KVM / USB switch - CAT5 - 32 x KVM / USB - 1 local user - 2 IP users - rack-mountable - for P/N: SMC1000I-2UC, SMC1500I-2UC, SMC1500IC, SRT1000RMXLI, SRT1000RMXLI-NC, SUA5000RMI5U
| Main Specifications | |
|---|---|
| Product Description | APC KVM 2G Enterprise Digital/IP - KVM / USB switch - 32 ports - rack-mountable |
| Device Type | KVM / USB switch - 32 ports - CAT5 - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 32 x KVM / USB |
| KVM Users Qty | 1 local user, 2 IP users |
| Features | Remote Power On |
| Power | AC 120/230 V (50/60 Hz) 1 A |
| Dimensions (WxDxH) | 16.7 in x 9.4 in x 1.7 in |
| Weight | 7.94 lbs |
| Color | Black |
| System Requirements | Microsoft DOS, UNIX, Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: SMC1000I-2UC, SMC1500I-2UC, SMC1500IC, SRT1000RMXLI, SRT1000RMXLI-NC, SUA5000RMI5U, SURT1000XLI, SURT2000XLI |
| General | |
| Device Type | KVM / USB switch - 32 ports - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 32 x KVM / USB |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 2 IP users |
| Server Connection Via Twisted Pair | CAT5 |
| Local User Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Cascading Depth | 3 |
| Max Resolution | 1600 x 1200 @ 60 Hz |
| Features | Remote Power On, server connection via twisted pair, user access management, computer naming |
| Status Indicators | Port status, power, LAN |
| Expansion / Connectivity | |
| Interfaces | 32 x KVM / USB RJ-45 ¦ 1 x VGA HD-15 ¦ 1 x mouse (PS/2) ¦ 1 x keyboard (PS/2) ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 3 x USB Type A ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 remote control ¦ 1 x phone line - RJ-11 modem ¦ 1 x VGA HD-15 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Cables Included | 1 x serial adapter |
| Rack Mounting Kit | Included |
| Compliant Standards | C-Tick, GOST, cUL, ICES-003, VDE, VCCI Class A ITE, RoHS, UL 60950-1, FCC Part 15 A, UL-AR, REACH |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 1 A |
| Power Consumption Operational | 25.9 watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft DOS, UNIX, Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Storage | 5 - 95% |
| Dimensions & Weight | |
| Width | 16.7 in |
| Depth | 9.4 in |
| Height | 1.7 in |
| Weight | 7.94 lbs |
| Compatibility Information | |
| Designed For | P/N: SMC1000I-2UC, SMC1500I-2UC, SMC1500IC, SRT1000RMXLI, SRT1000RMXLI-NC, SUA5000RMI5U, SURT1000XLI, SURT2000XLI |
