Network adapter - PCI - 802.11b/g/n
| Main Specifications | |
|---|---|

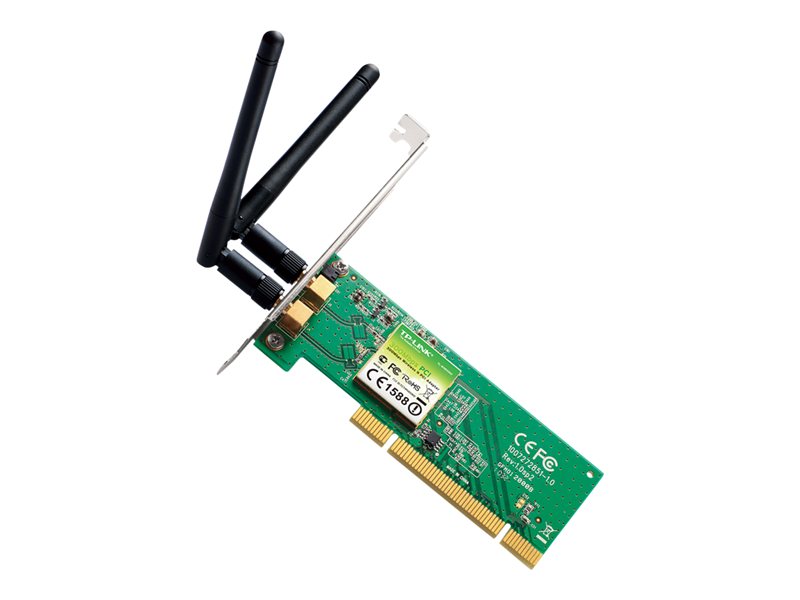

| Product Description | TP-Link TL-WN851ND - network adapter - PCI |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI |
| Dimensions (WxDxH) | 0.9 in x 5.2 in x 4.8 in |
| Data Link Protocol | 802.11b/g/n |
| Data Transfer Rate | 300 Mbps |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| System Requirements | Microsoft Windows Vista / 2000 / XP, Microsoft Windows 7 (32/64 bits) |
| Microsoft Certification | Compatible with Windows 7 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI |
| Miscellaneous | |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 16 QAM, OFDM |
| Frequency Band | 2.4 GHz |
| Features | 2T2R MIMO technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista / 2000 / XP, Microsoft Windows 7 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 5.2 in |
| Height | 4.8 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
