Wireless router - DSL modem 4-port switch 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | TP-Link TD-W8961ND - wireless router - DSL modem - Wi-Fi - desktop |
| Device Type | Wireless router - DSL modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | ADSL2+ |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, PPPoA, AAL5, ARP, DHCP, DNS |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | HTTP |
| VoIP Protocols | H.323, SIP |
| Features | Firewall protection, DHCP support, NAT support, NAPT support, IGMP snooping, SPI, MAC address filtering, VPN passthrough, WDS support, parental control, IP address filtering, firmware upgradable, QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dimensions (WxDxH) | 6.9 in x 4.7 in x 1.1 in |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, PPPoA, AAL5, ARP, DHCP, DNS |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | HTTP |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | Firewall protection, DHCP support, NAT support, NAPT support, IGMP snooping, SPI, MAC address filtering, VPN passthrough, WDS support, parental control, IP address filtering, firmware upgradable, QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Built-in Devices | Wireless access point |
| Status Indicators | Port status, power, link/activity |
| Expansion / Connectivity | |

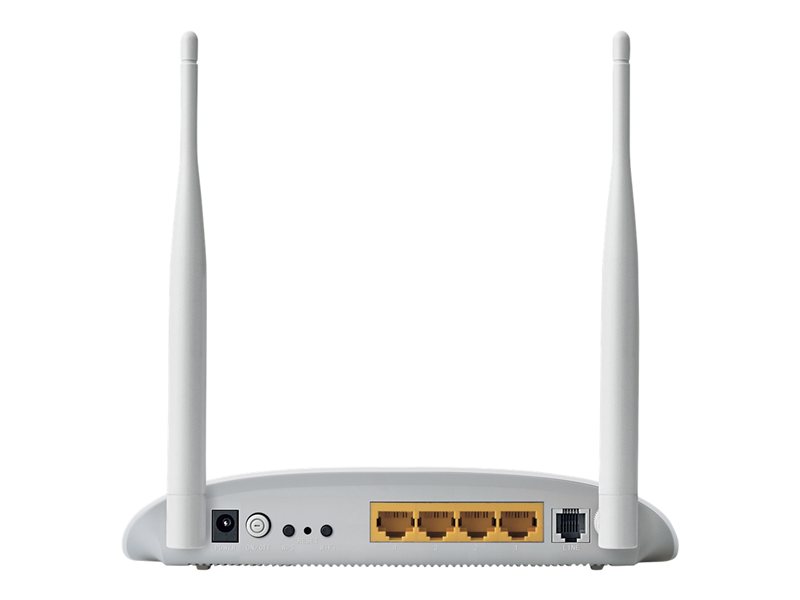

| Interfaces | WAN: 1 x ADSL2+ - RJ-11 ¦ LAN: 4 x 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | |
| Included Accessories | ADSL splitter |
| Cables Included | 1 x network cable ¦ 2 x modem cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2+ |
| Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.3 Annex M |
| Max Transfer Rate | 24 Mbps |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 4.7 in |
| Height | 1.1 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Line Properties | |
| Framing Format | ANSI T1.413 |
