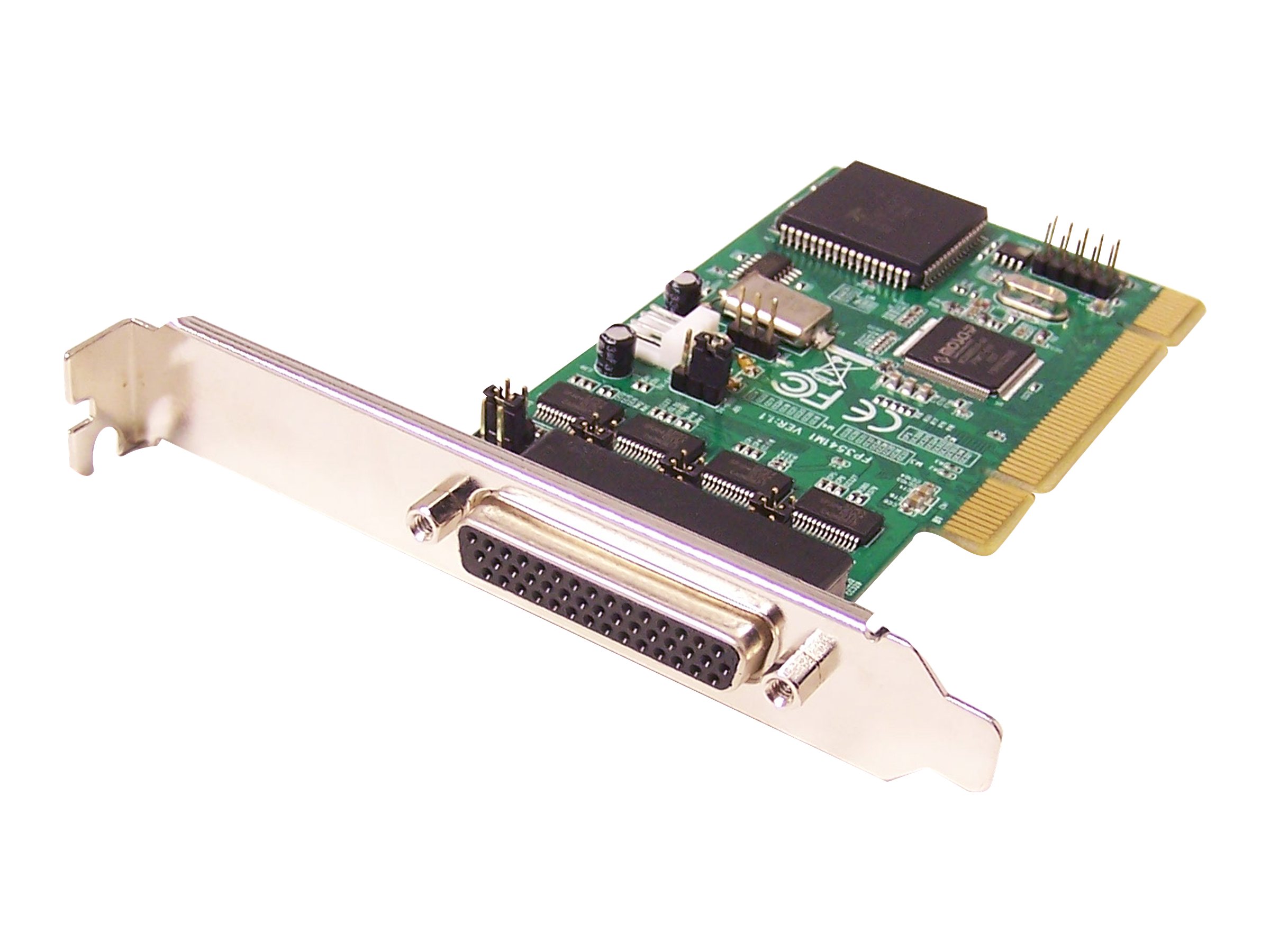

Serial adapter - PCI low profile - RS-232 x 4
| Main Specifications | |
|---|---|
| Product Description | SIIG ID-P40211-S1 - serial adapter - PCI - RS-232 x 4 |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI |
| Bus Voltage | Universal (3.3 V & 5.0 V) |
| Ports | RS-232 x 4 |
| Weight | 12.13 oz |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| System Requirements | Microsoft Windows 2000 SP4, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI |
| Bus Voltage | Universal (3.3 V & 5.0 V) |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) (on cable) |
| Compatible Slots | 1 x PCI - low-profile |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Cables Included | 1 x serial cable - 1.6 ft |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Ports | RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Features | Software flow control, hardware flow control, 15 KV Electrostatic Discharge Protection, 3 KV Optical Isolation Protection |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 2000 SP4, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Weight | 12.13 oz |
