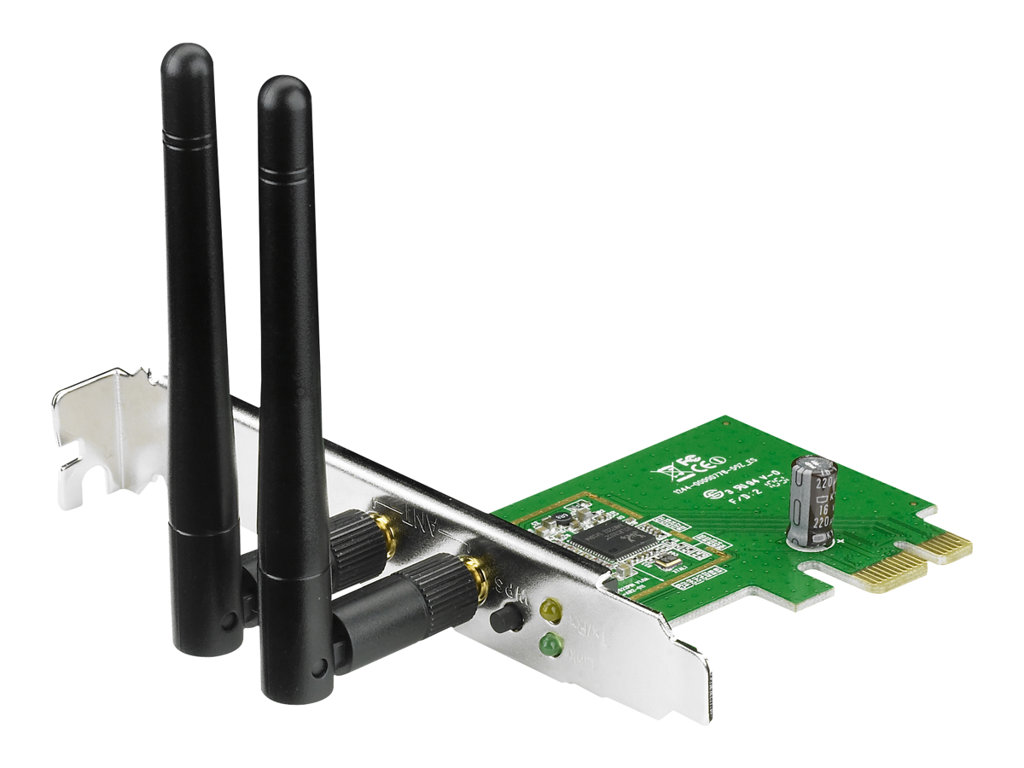

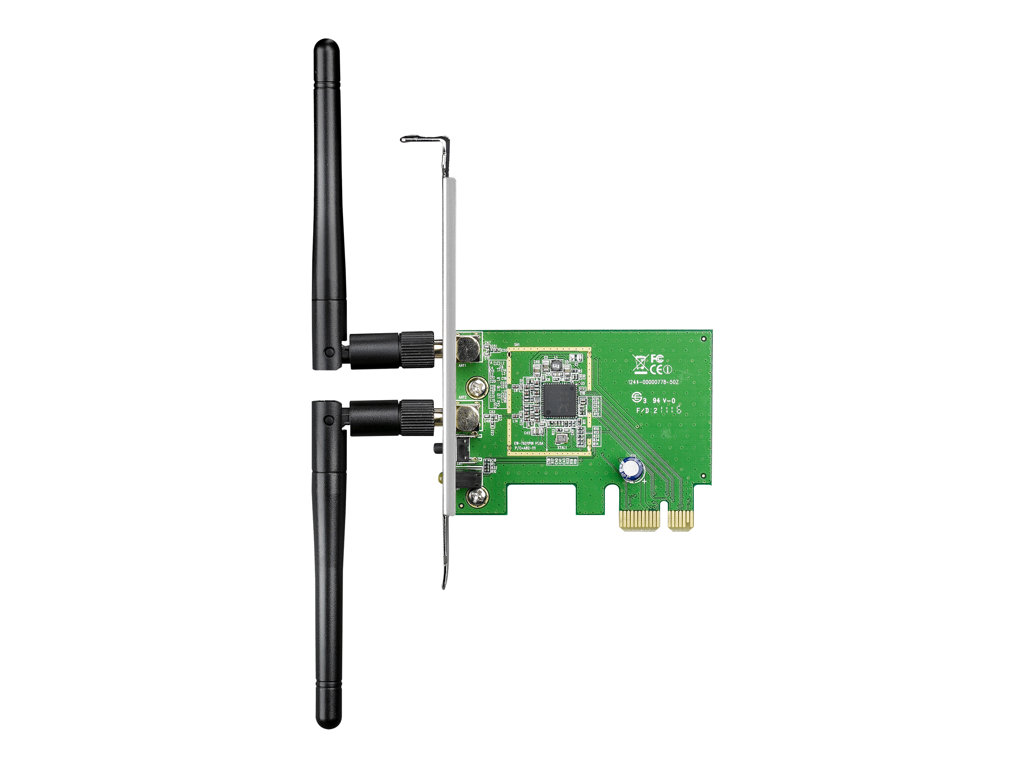

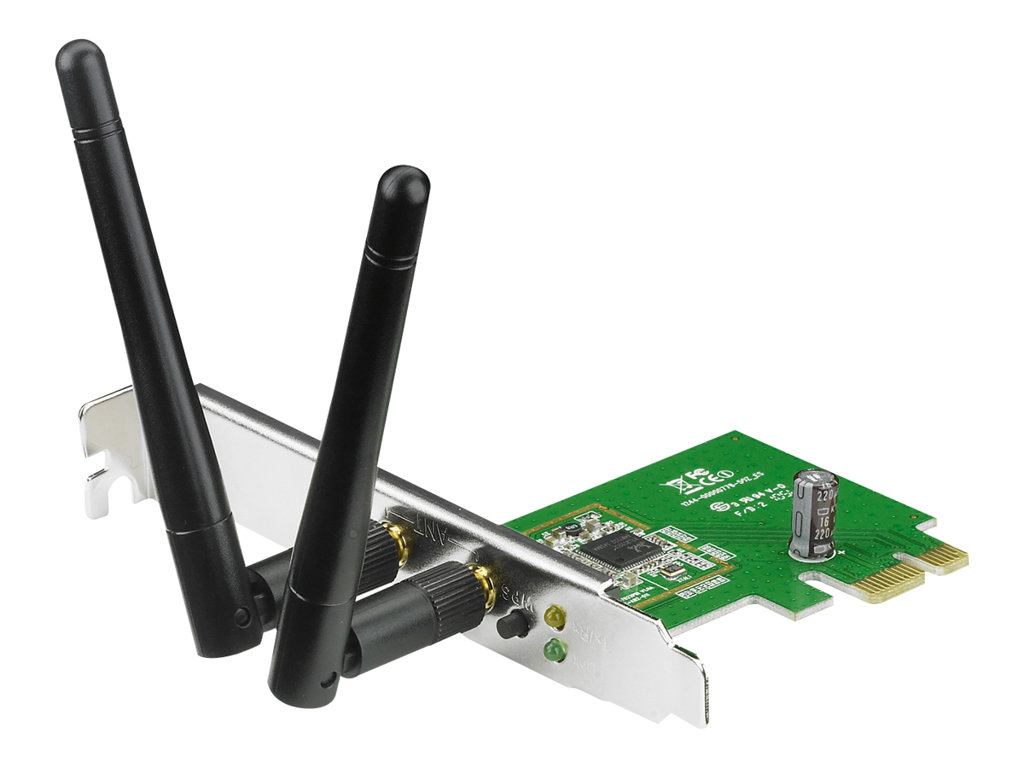

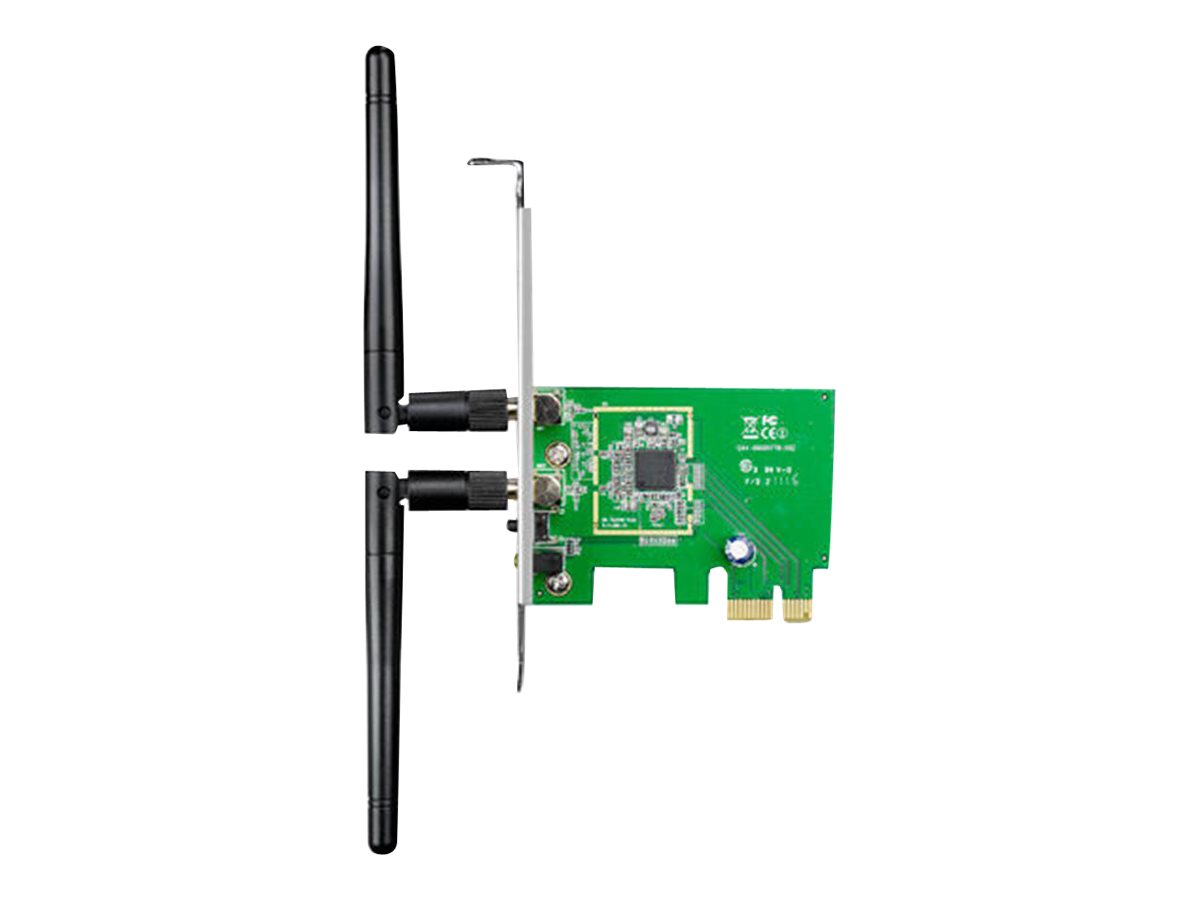

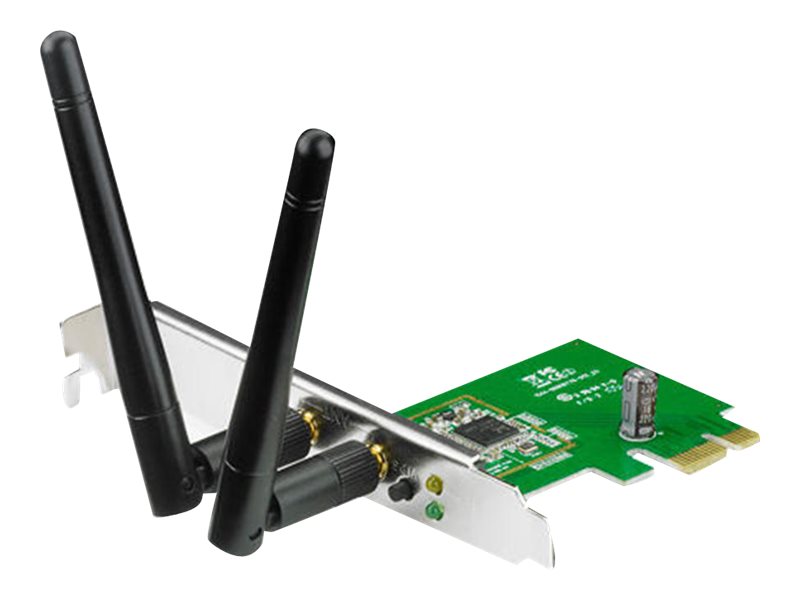

Network adapter - PCIe low profile - 802.11b/g/n
| Main Specifications | |
|---|---|
| Product Description | ASUS PCE-N15 - network adapter - PCIe |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express |
| Dimensions (WxDxH) | 4.8 in x 0.9 in x 0.9 in |
| Weight | 2.22 oz |
| Data Link Protocol | 802.11b/g/n |
| Data Transfer Rate | 300 Mbps |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| System Requirements | Windows 8 (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Vista (32/64 bits), Ubuntu |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express |
| Expansion / Connectivity | |
| Interfaces | 2 x antenna - R-SMA |
| Compatible Slots | 1 x PCI Express |
| Miscellaneous | |

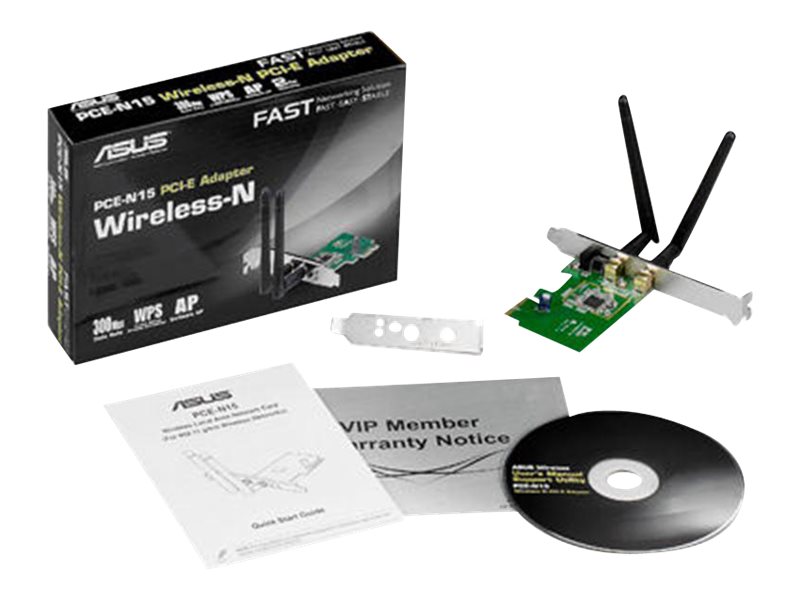

| Included Accessories | Low-profile bracket |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Compliant Standards | C-Tick, IC, FCC |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, OFDM |
| Frequency Band | 2.4 GHz |
| Features | Software access point, WPS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Windows 8 (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Vista (32/64 bits), Ubuntu |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 0.9 in |
| Height | 0.9 in |
| Weight | 2.22 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
