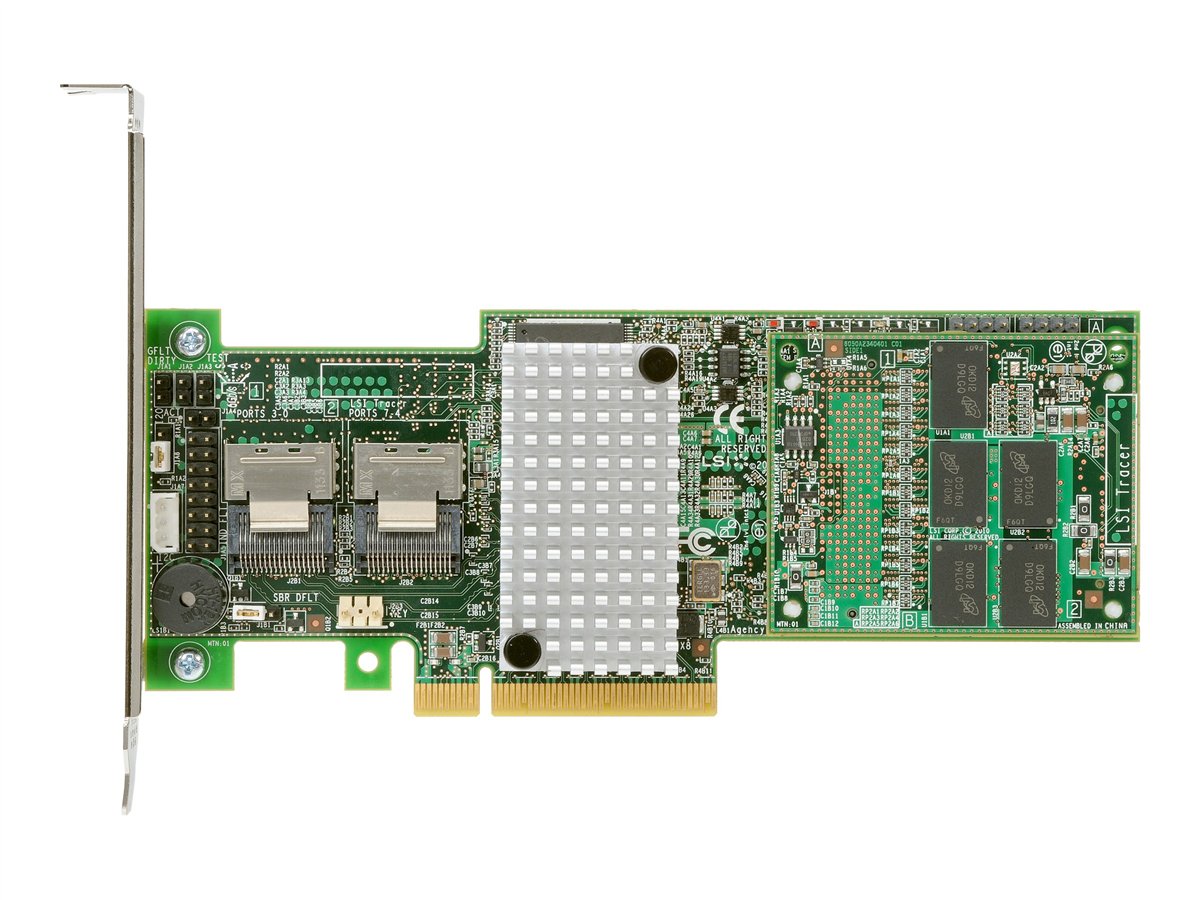

Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 6Gb/s - low profile - RAID 1, 5, 6, 10, 50, 60 - PCIe 2.0 x8 - for Server System P4208CP4MHGC
| Main Specifications | |
|---|---|
| Product Description | Intel RAID Controller RS25DB080 - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8 |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Bus Type | PCIe 2.0 x8 |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Buffer Size | 1 GB |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Designed For | Server System P4208CP4MHGC |
| General | |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 2.0 x8 |
| Expansion / Connectivity | |
| Interfaces | 1 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane |
| Compatible Slots | 1 x PCI Express 2.0 x8 |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Buffer Size | 1 GB |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor | LSI LSISAS2208 800 MHz |
| Compatibility Information | |
| Designed For | Intel Server System P4208CP4MHGC |
